3.5.1 Front Panel Board Features

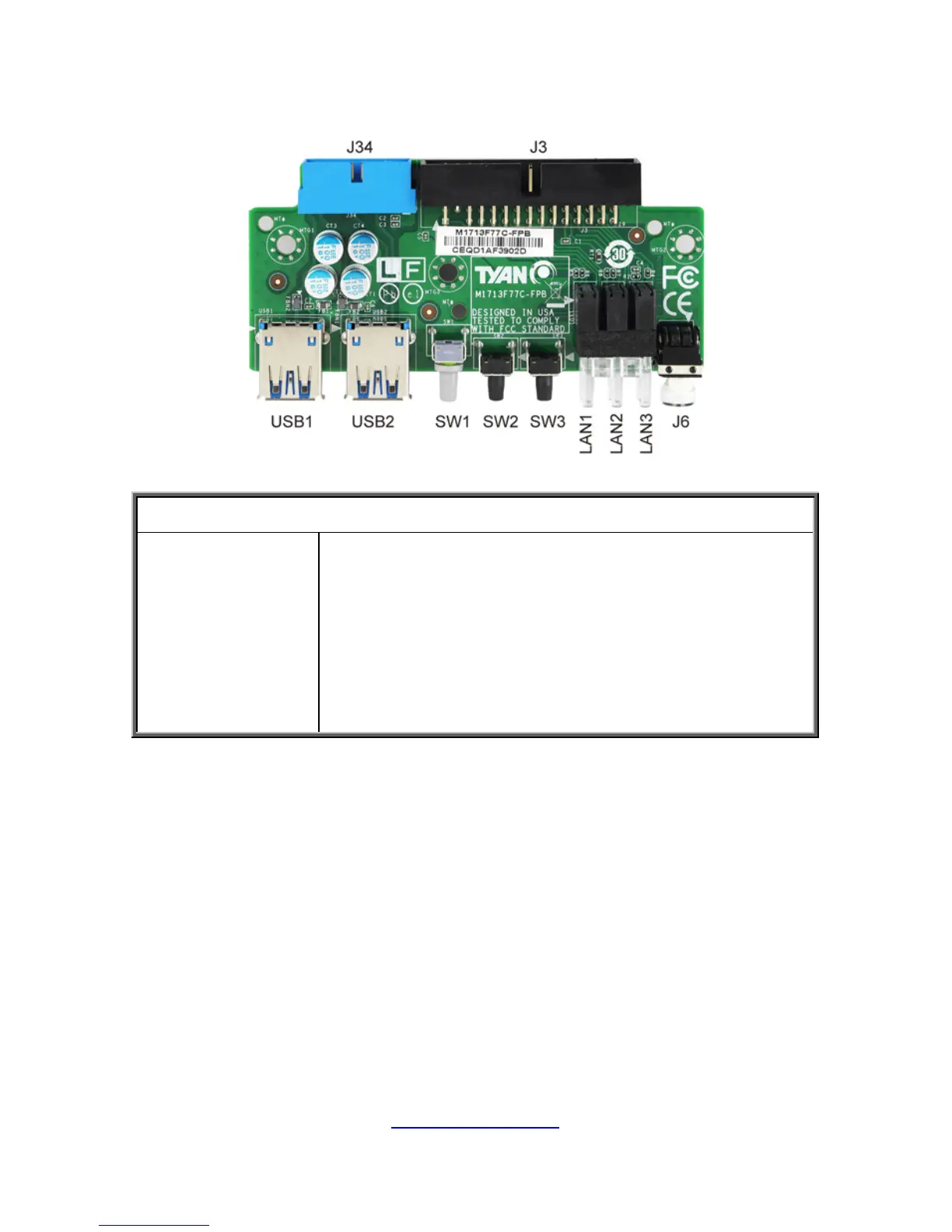

M1713F77C-FPB Front Panel Board

Specifications

 SSI 24-pin front panel I/O connector to MB

 (1) 20-pin front panel USB3.0 connector to MB

 BTN: PWR BTN w/LED, Reset BTN, ID BTN, NMI

BTN

 LED: PWR LED (green), Warning LED (amber), ID

LED (blue), HDD LED (green), LAN active LED (green)

 I/O: (2) Type-A USB3.0 Connector

 Temperature sensor inlet build-in
