66

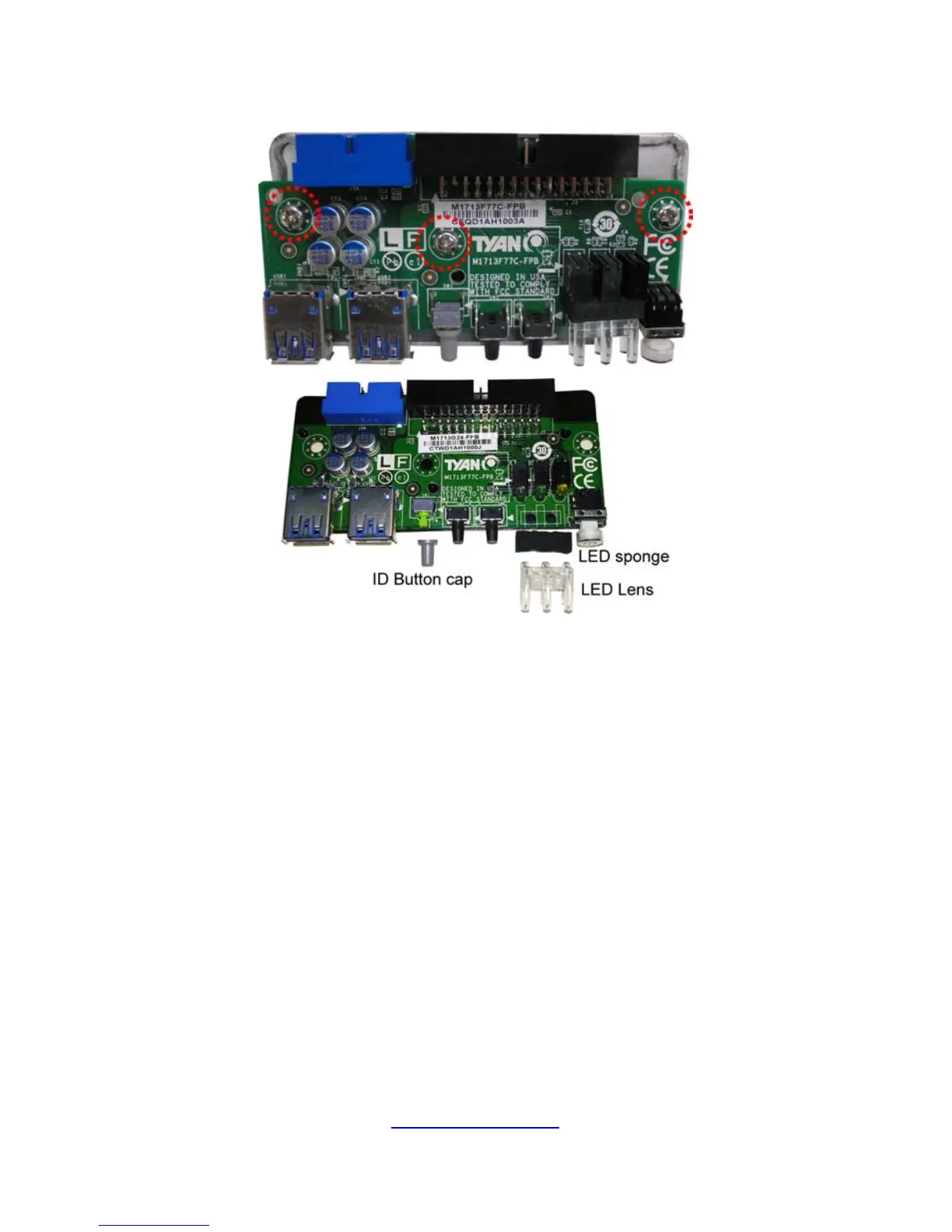

3. Loosen three screws to take out the front panel board. Remove the ID Button
cap, LED sponge and LED Lens to reinstall in the new Front Panel Board.
4. Follow the steps described earlier in reverse order to reinstall the front panel
board module.
