http://www.tyan.com
68

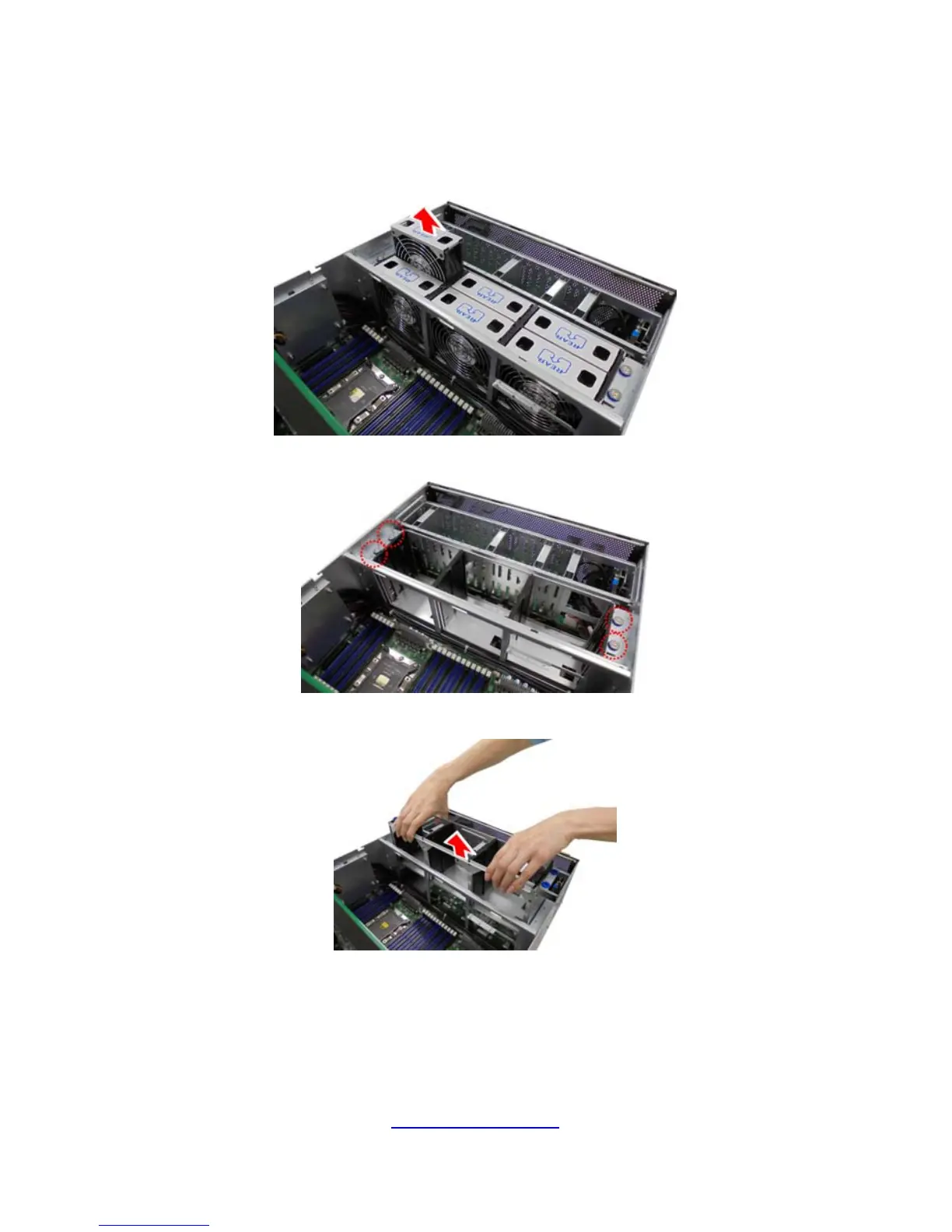

3.6 Replacing the Fan Board
Follow these instructions to replace the M1809F77A-FB Fan Board.
1. Remove all Fan modules.
2. Unscrew the fan cage.
3. Lift up the fan cage.
