2.1.2 Installing the CPU and Heat sink
Follow the steps below on installing CPUs and CPU heatsinks.

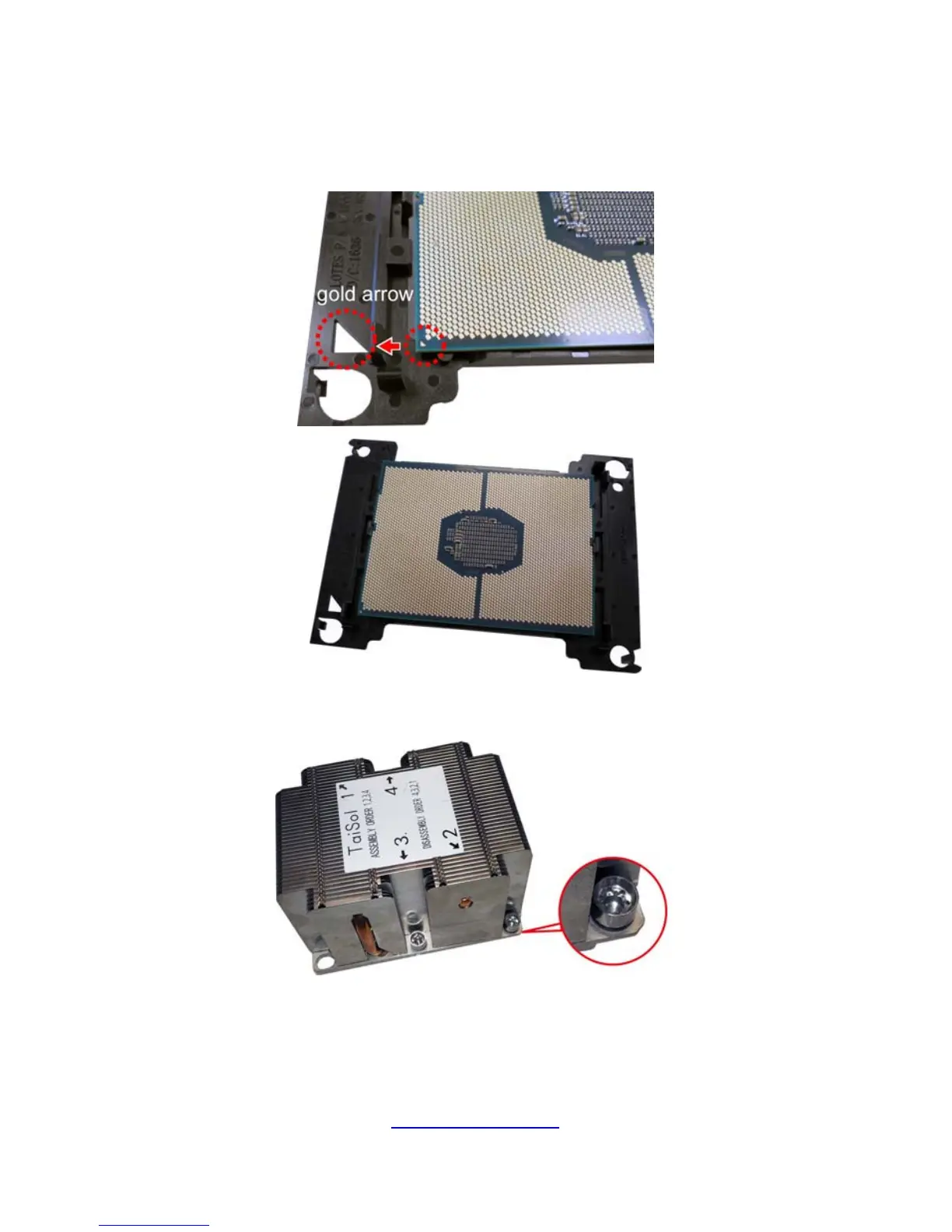

1. Align and install the processor on the carrier.
2. Carefully flip the heatsink. Then install the carrier assembly on the bottom of
the heatsink and make sure the gold arrow is located in the correct direction.
