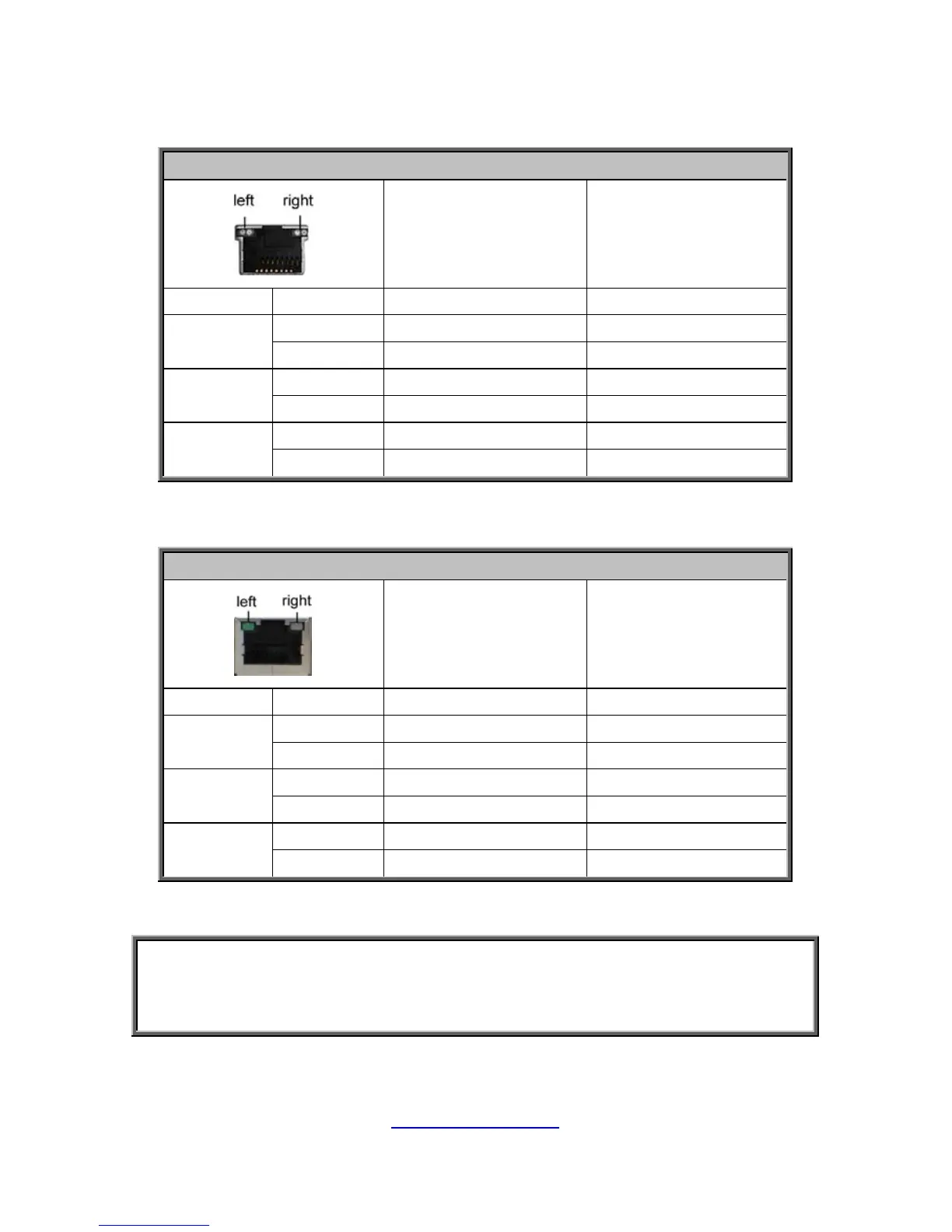

1.5.3 LED Definitions
10Gbps LAN Port LAN Indication
10Gbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
LED Color: Green
Right LED
(Speed)
LED Color: Yellow
No Link OFF OFF
100 Mbps
Link Green Solid On Green Solid On
Active Green Blinking Green Solid On
1000 Mbps
(1Gbps)
Link Green Solid On Yellow Solid On
Active Green Blinking Yellow Solid On
10 Gbps
Link Yellow Solid On Yellow Solid On
Active Yellow Blinking Yellow Solid On
1Gbps LAN Port LAN Indication
1Gbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
LED Color: Green
Right LED
(Speed)
LED Color: Amber
No Link OFF OFF
10 Mbps
Link Green Solid On OFF
Active Green Blinking OFF
100 Mbps
Link Green Solid On Green Solid On
Active Green Blinking Green Solid On
1000 Mbps
(1Gbps)
Link Green Solid On Amber Solid On
Active Green Blinking Amber Solid On
NOTE: “Left” and “Right” are viewed from the rear panel.
NOTE:
1. LAN1/LAN2: Intel X550
2. LAN3: Realtek RTL8211E for IPMI
