Using Card Guide

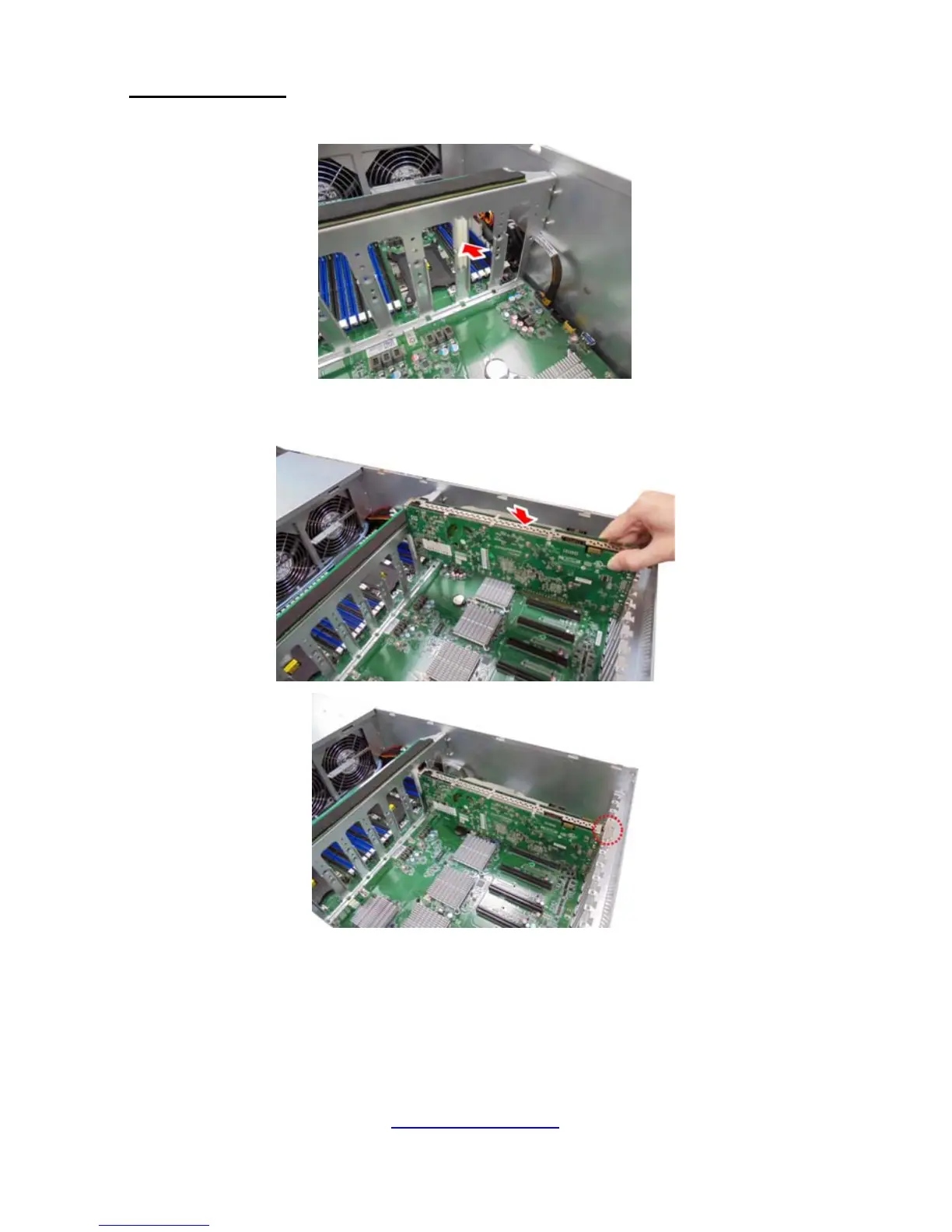

1. Insert the card guide onto the power distribution board bracket.
2. Insert the full-length, full-height PCIE card into the PCIE Gen3 x16 slot and
screw it firmly to the chassis.
