84

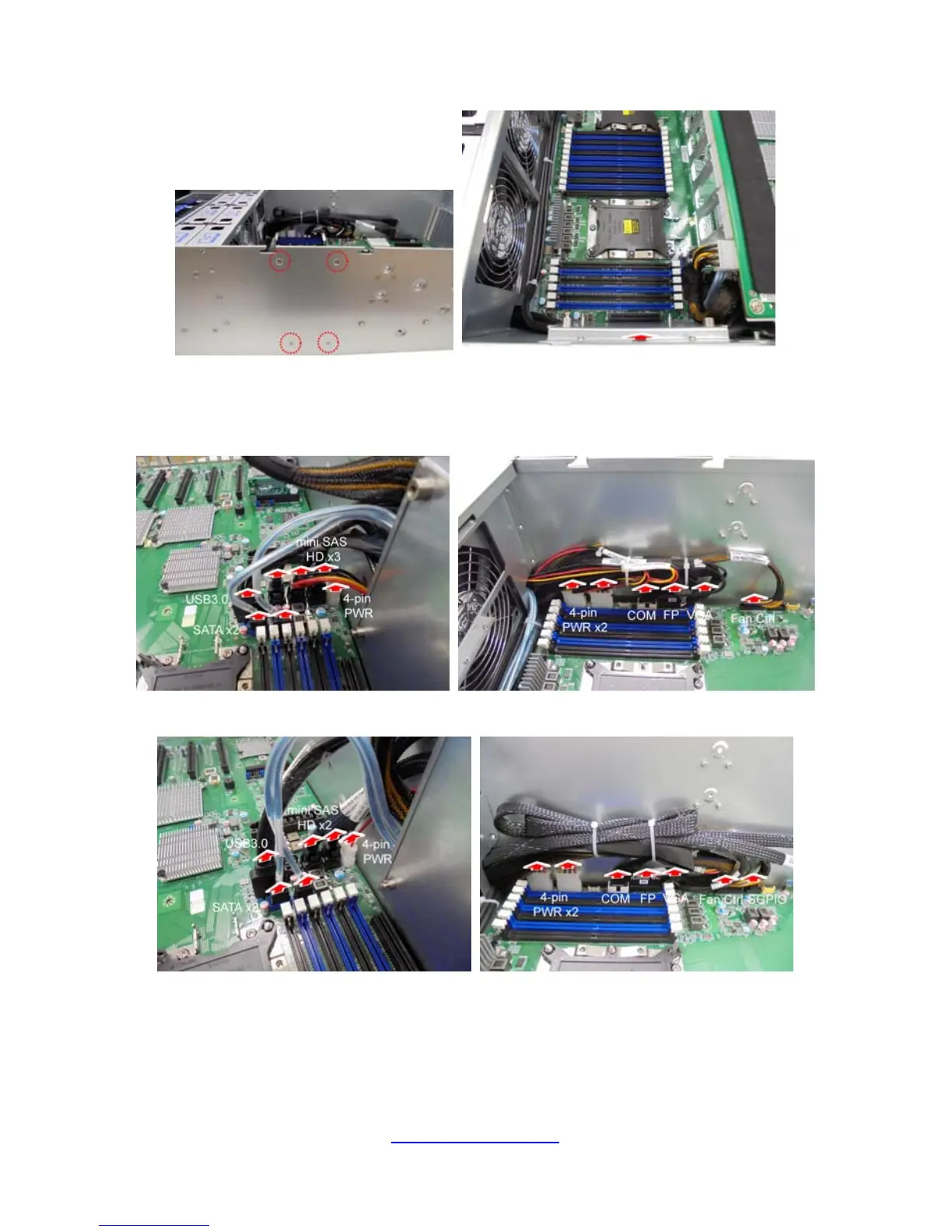

2. Unscrew the OCP Riser Card Bracket.
3. Refer to Section 3.9 Replacing the Riser Card and 3.10 Replacing the
Power Backplane Board to remove the Power Supply Cage and the PBP Tray.
4. (SATA SKU) Disconnect all cables.
5. (NVME SKU) Disconnect all cables.
