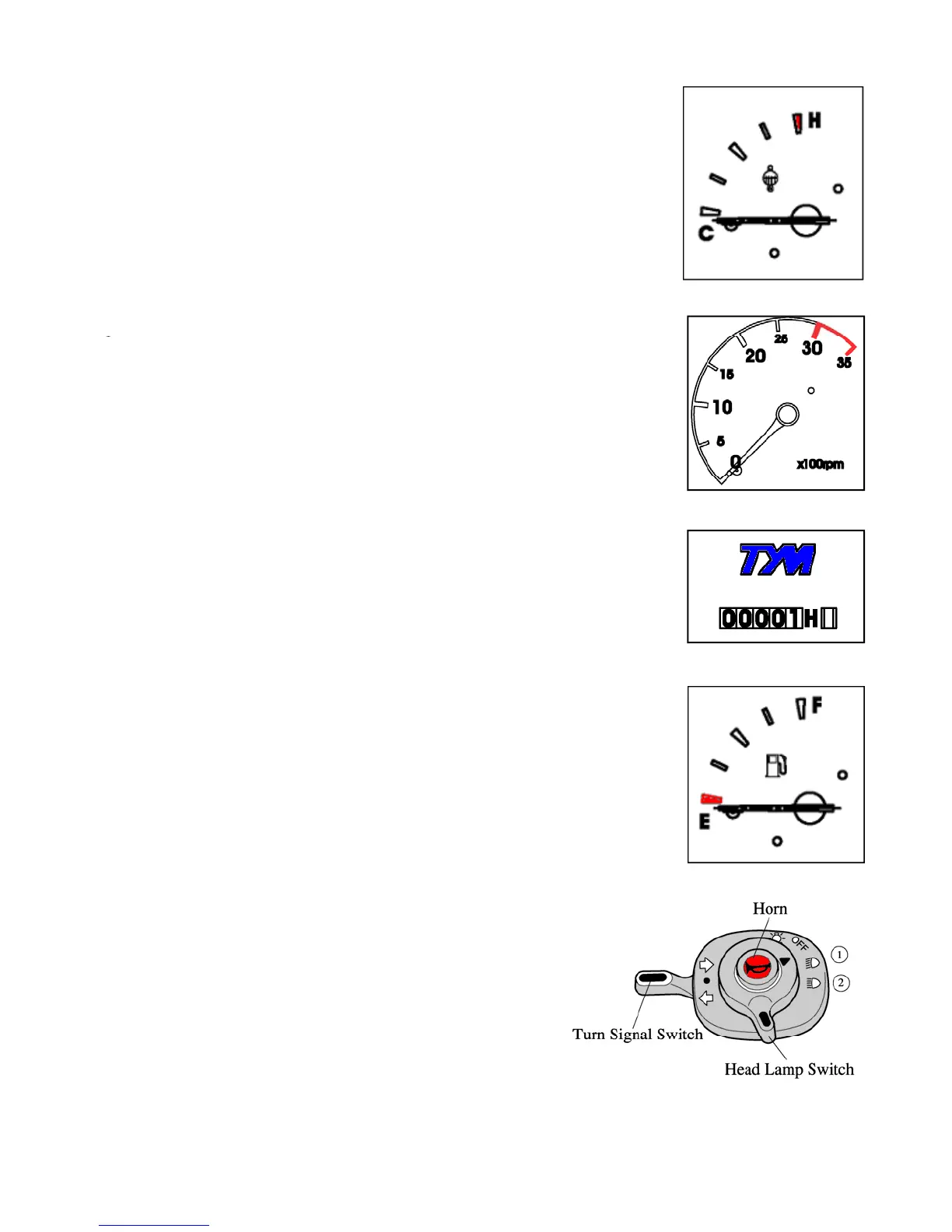

② COOLANT TEMPERATURE GAUGE
The gauge shows the coolant temperature with the key switch ON.
C is low to normal temperature and H is high temperature. If the
pointer is in the red H segment the engine is overheating. Refer
this
b
oo
k
to rectify the proble
m
.
③
TACHOMETE
R
③
This meter shows the revolutions of the engine and the PTO
shafts as well as the travel speed in top gear.
④ HOUR METER
The hour meter consists of digits with the last digit indicating
1/10th f h It h h th t t h b d
1/10th
o
f
an
h
our.
It
s
h
ows
h
ours
th
e
t
rac
t
or
h
as
b
een use
d
.
The lamp at bottom of hour meter should twinkle during
operation
⑤
FUEL GAUGE
⑤
FUEL
GAUGE
Shows the amount of fuel in the fuel tank when the key switch is
ON.
⑥ LIGHT SWITCH, INDICATORS AND HORN
Head lamp is operated on the main switch.
When indicator is pulled down, left turn signal turns ON and
flashes.
When indicator is pushed up, right turn signal turns ON and
32
flashes.
When the horn button is pressed, the horn will sound.
