HYDRAULIC OUTLET
The tractor is equipped the hydraulic outlet for attaching the hydraulically driven implement such as
front end loader. The hydraulic outlet is located on right hand side of transmission
Installing the Loader

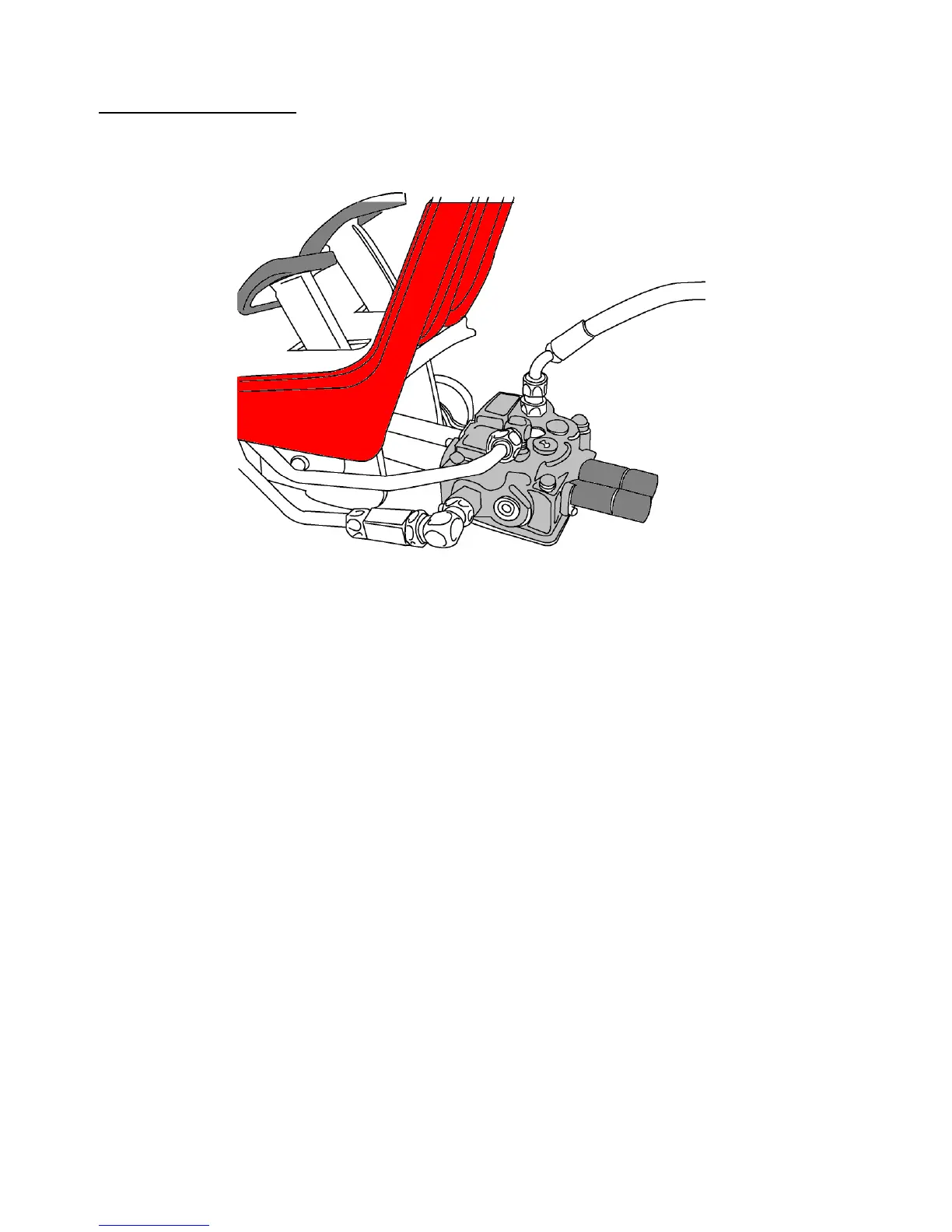

1. Connect the front end loader hoses to ports of loader control valve(A1, B1, A2, and B2).
2. A1 and B1 ports are used for lift/lowering/floating functions (inner side).
3. A2 and B2 ports are used for bucket/regenerative functions (outer side).
Detaching the Loader
Detaching
the
Loader
1. Lock the joystick lever with the lever front of joystick.
2. Detach the hydraulic hoses of loader
3. Assemble the steel cap (PF-3/8) on valve.
