THREE-POINT
HITCH
AND DRA
WBAR
OPERA
TING 3-POINT
LINKAGE
▶

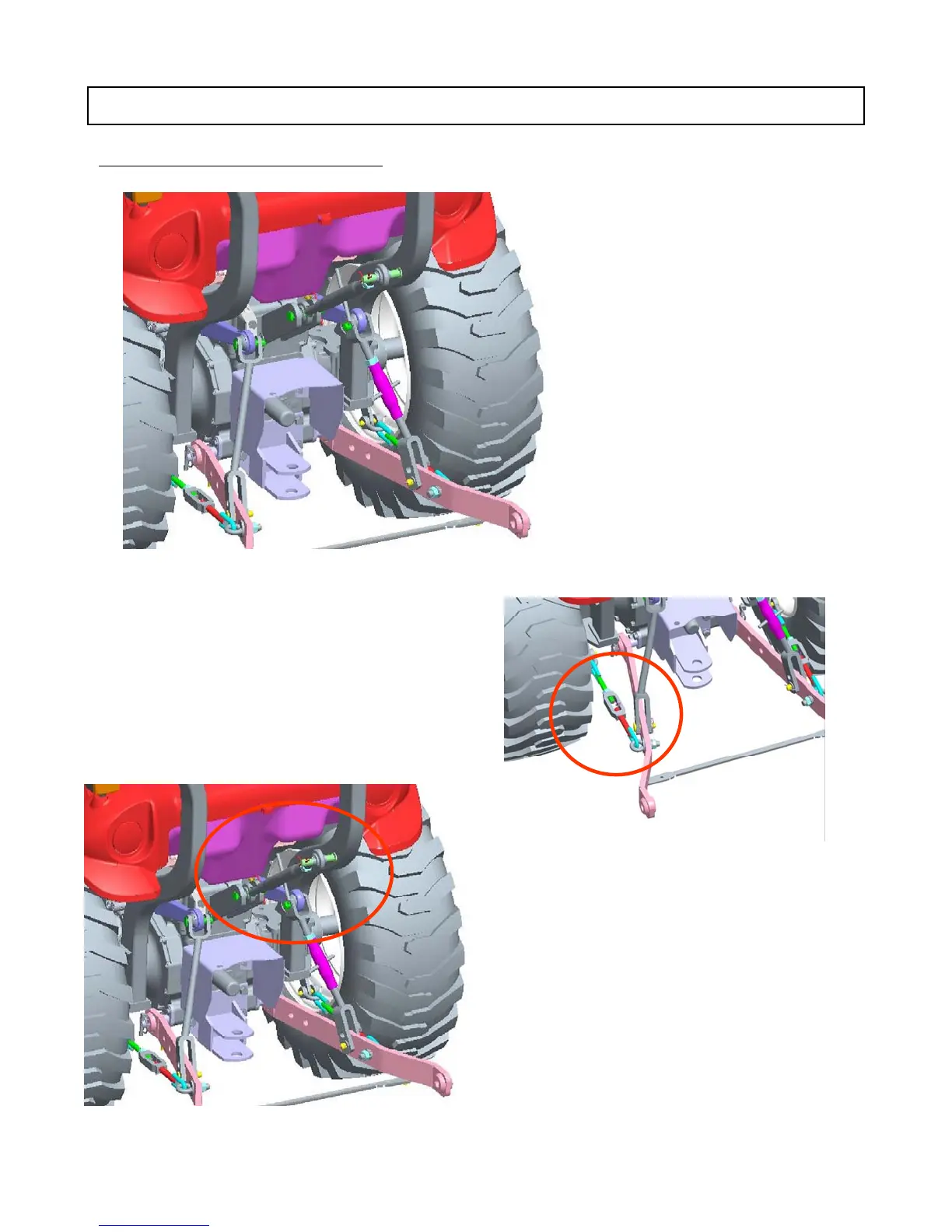

ADJUSTING THE
CHECK
CHAIN
T
o adjust the check chai
n, turn the turnbuckle to
lengthen or shorten the chain and tighten the lock
nut when the correct
adjustment is achieved.
▶
ADJUSTMENT
O
F
THE
T
OP
LINK
▶
ADJUSTMENT
OF
THE
TO
P
LINK
Lengthening or shortening the top link will
change the angle of the implement.
57
57
59
Table of Contents
Table of Contents
4
Safety Instructions
6
Safe Operation of the Tractor
11
Safety Tips During Maintenance
12
Mounting and Demounting Implements
13
The Precaution to Help Prevent Accidents
14
Operating the Tractor
15
Driving the Tractor
16
Do's and Do Not's
18
Do's-For Better Performance
18
Don'ts-For Safe Operation
18
Universal Symbols
20
Table of Contents
21
About this Manual
22
Tractor Identification
23
Warranty of the Product
23
Service
23
Parts
23
Introduction & Description
24
Introduction & Description Introduction & Description
24
Tractor an Introduction
24
Description
25
Owner Assistance
27
Rops (Roll over Protective Structure)
28
Roll over Protective Structure(Rops)
28
Rops Maintenance and Inspection
28
Damage of the Rops
29
Do Not Weld, Drill or Straighten the Rops
29
For Sliding Seat
30
ROPS (Roll over Protective Structures)
28
Section 3. Operation
31
Instrument Panel and Controls
32
Switches and Gauges
32
Indicator Lamps
35
Independent Pto
37
Tractor Controls
38
Pre Operation Check
39
Operating the Engine
40
Starting the Engine
40
Cold Weather Starting
44
Stopping the Engine
44
Warming up
45
Operating the Tractor
46
Driving
46
Stopping and Parking
47
Controlling
48
Check During Driving
51
Pto
52
Rear Pto
52
MID Pto(Optional)
53
Hydraulics
54
Position Control
54
Lowering Speed Control
55
Hydraulic Outlet
56
Hydraulic Remote Control Valve(Optional)
57
Three-Point Hitch and Drawbar
58
Operating 3-Point Linkage
58
Trailer Hitch
60
Maintenance and Adjustment/Section 4. Maintenance and Service
61
Default Chapter
61
Maintenance and Adjustment
61
Section 4. Maintenance and Service
61
Periodical Check and Service Table
62
Lubrication Chart
63
Servicing Engine
64
Opening Method of each Cover
64
Engine Oil
65
Air Cleaner
66
Engine Coolant
67
Fuel
69
Checking Hoses and Clamps
70
Fan Belt
70
Servicing Transmission
72
Transmission Oil
72
Front Axle Oil
74
Servicing Electrical
75
Battery
75
Checking the Wiring Harness and Fuses
76
Servicing Miscellaneous
77
Servicing Miscellaneous Servicing Miscellaneous
77
Greasing the Tractor
77
Adjusting the Brakes
78
Gap Adjustment on the Front Axle
78
Adjusting the Throttle Lever
79
Adjusting Toe in
79
Tire Pressure
79
Storage
80
Service Prior to Daily and Short Term Storage
80
For Daily or Short Storage
80
Long Term Storage
80
Reuse after Long Term Storage
81
Troubleshooting
82
Section 5. Specification and Tips
85
Specifications
85
Harness Diagram
85
Fuel Saving Tips
90
Tractor History Card
92
Service Record
93
Part Replacement Record
95
