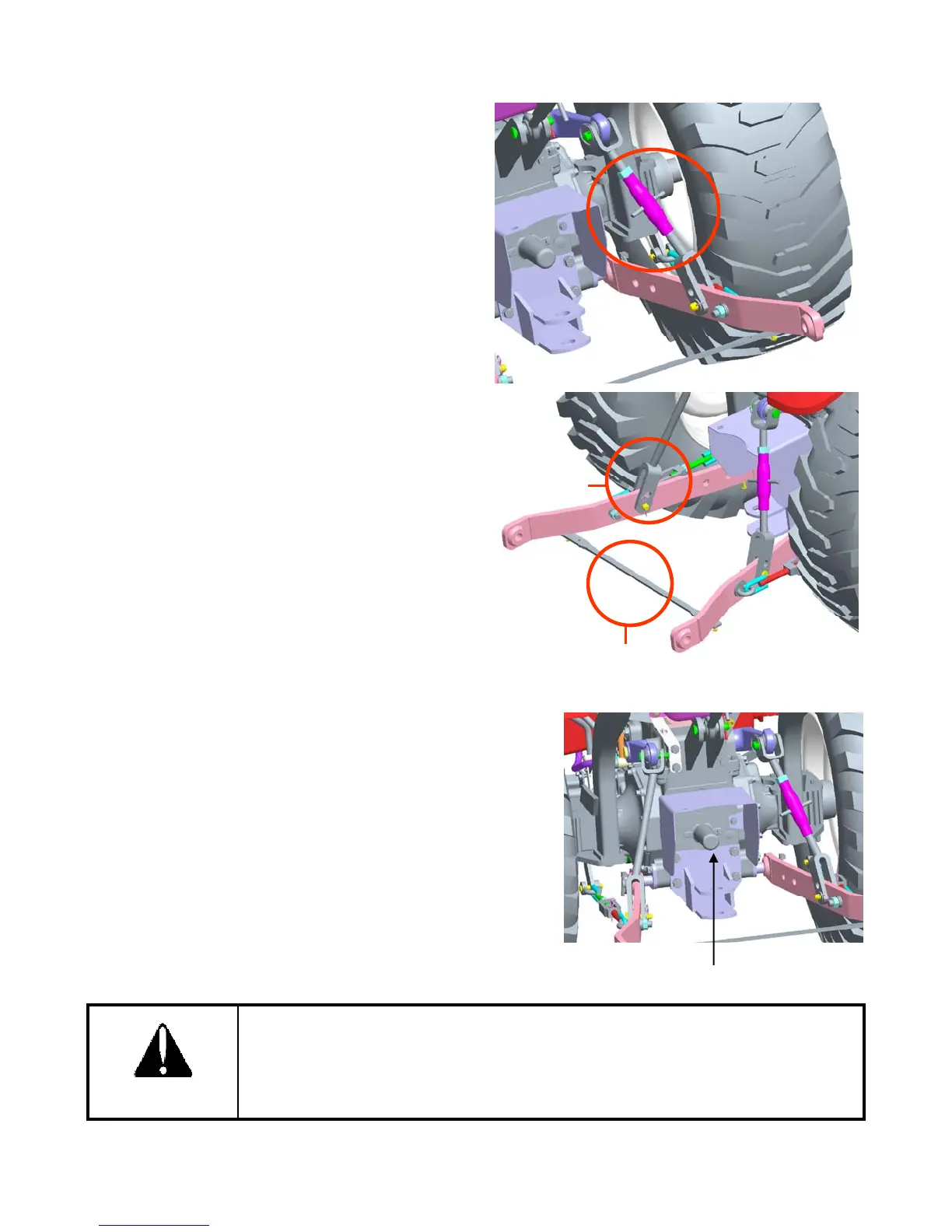

■ Adjustment of the Lower Link
The adjustment is done with the adjusting handle on
the right hand yoke rod.
To shorten or lengthen the yoke rod turn the
adjusting handle.
When adjusted correctly tighten the lock nut
securely.
■ Adjustment of the Yoke Rod on the Lower Link
For different applications change the position of the
yoke rod on the lower link holes as shown and insert
the pin in the direction of the arrow
YOKE ROD
■ Use of the Retention Rubber
When not using implements on the three point
linkage use the rubber as shown to prevent tire
damage.
■
Mounting Implement
RETENTION RUBBER
■
Mounting
Implement
If the PTO is used, remove the safety cover off the PTO
shaft.
Adjust the yoke rod on the lower links to suit the implement
in use.
A hh lfl lik h hh ihl lik
A
ttac
h
t
h
e
l
e
f
t
l
ower
li
n
k
, t
h
en attac
h
t
h
e r
i
g
h
t
l
ower
li
n
k
using the adjusting handle on the leveling box if required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure that
it is locked in place.
PTO safety cover
Adjust the check chains to suit the implement and tighten
the locknuts.
To remove an implement reverses the procedure.
58
CAUTION
Do not attach a PTO shaft with the engine running and ensure all safety shields
are in place.
