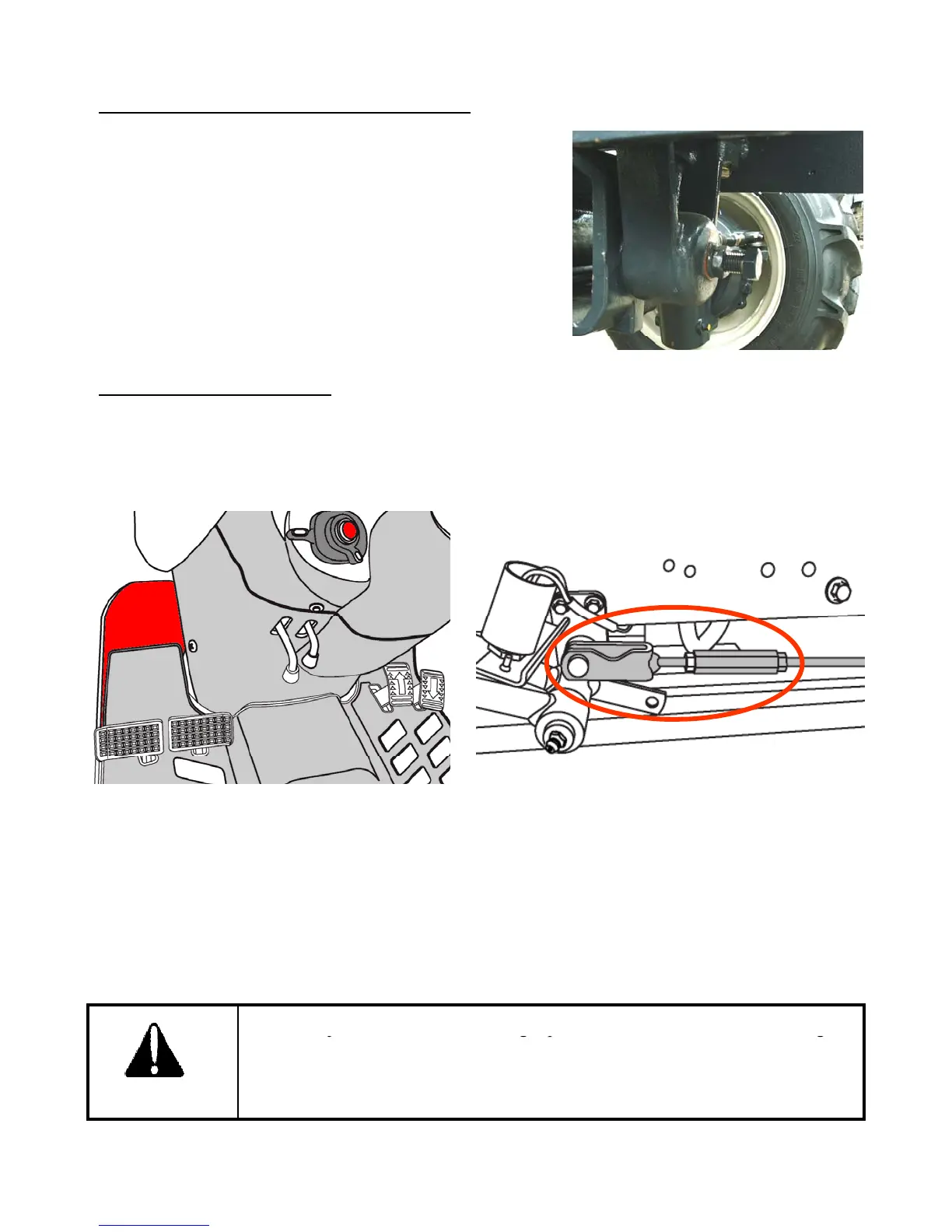

GAP ADJUSTMENT ON THE FRONT AXLE
Lift the front with a hydraulic jack to get the wheels of the
ground.
Then loosen the nut and tighten the bolt fully and turn the
bolt ½ to loosen again in order to roll the center pivot metal
freely and tighten the nut again.
While the wheels arte still off the ground, move the axle on
the center pivot as a final check that the gap is set correctly
on the top of the pivot metal
ADJUSTING THE BRAKES
As is the case with the clutch, use of the brakes will change the pedal free play and the balance
between the right and left pedal.
Thecorrectpedalfreeplayis118~157in
.
.
■ Adjustment Method
Loosen the locknuts at each end and turn the rod to adjust the brake.
Turning it anticlockwise increases the free play, clockwise decreases it.
Tighten the locknuts.
Check that the free play is correct and the same on both pedals to ensure even braking
Uneven ad
ustment of the left and ri
ht
edal will result in one sided brakin
77
CAUTION
when the pedals are connected and can cause serious accidents, especially at
high speeds.
Double check to ensure free play is the same on both pedals
