Position of the sensors of the heating units
Illustration subject to technical changes

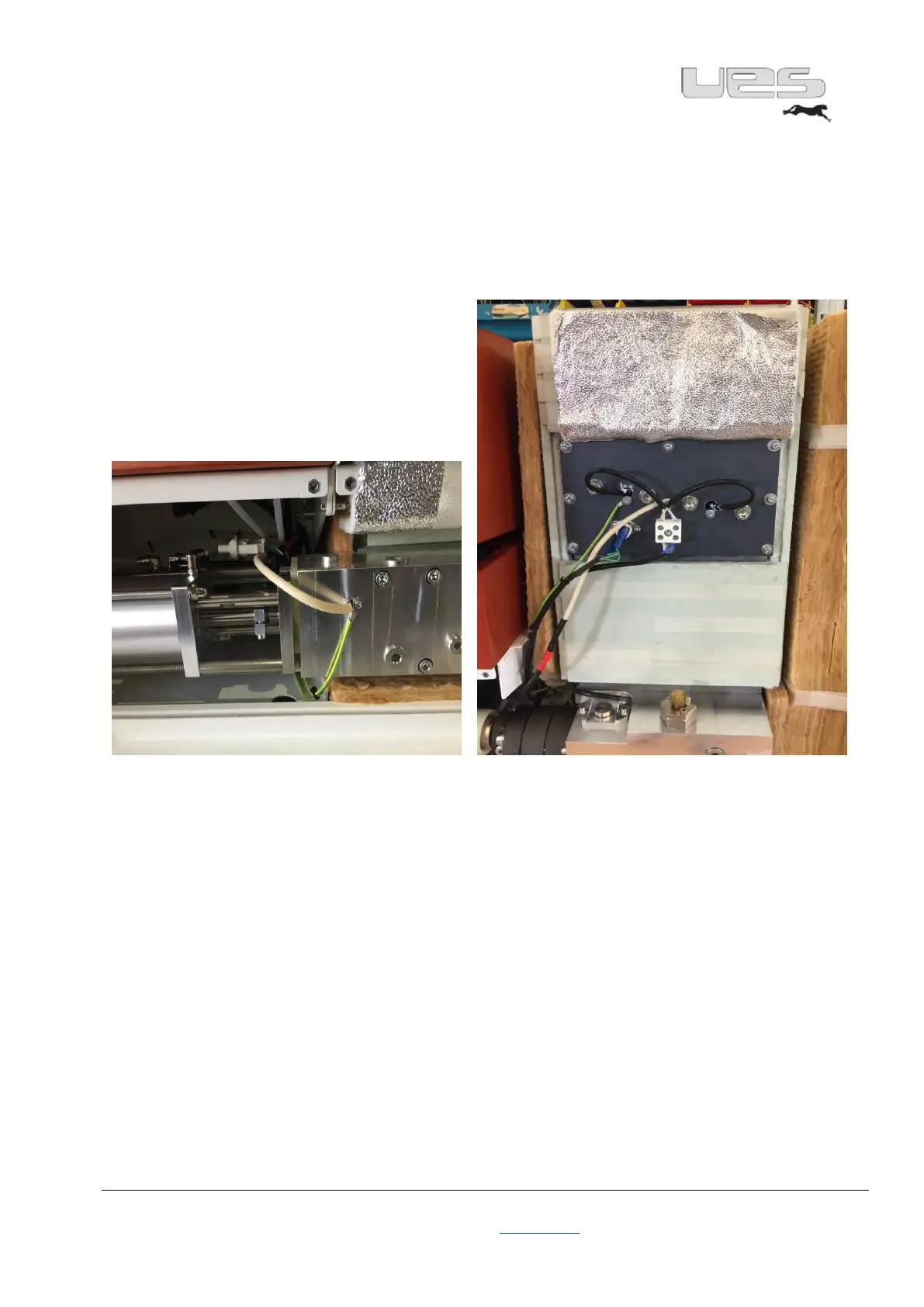

Sensor pump (4 kg/8 kg) or heating grid (14 kg/20 kg/30 kg) - „Tank2“ in the display – accessible from the front
side – operating side; cable with plug comes out of the insulation / plug connection behind the front flap
By pressing „Tank“ on the display the display changes between „Tank1“ and „Tank2“. If you set a
temperature of e.g. 170 °C for the tank on the display this always refers to „Tank1“ which is the tank.
If you want to set a different temperature for the manifold („Tank2“) – this is done in the menu point
„Service“ „Temperature difference“; this value is pre-set on „0“.
