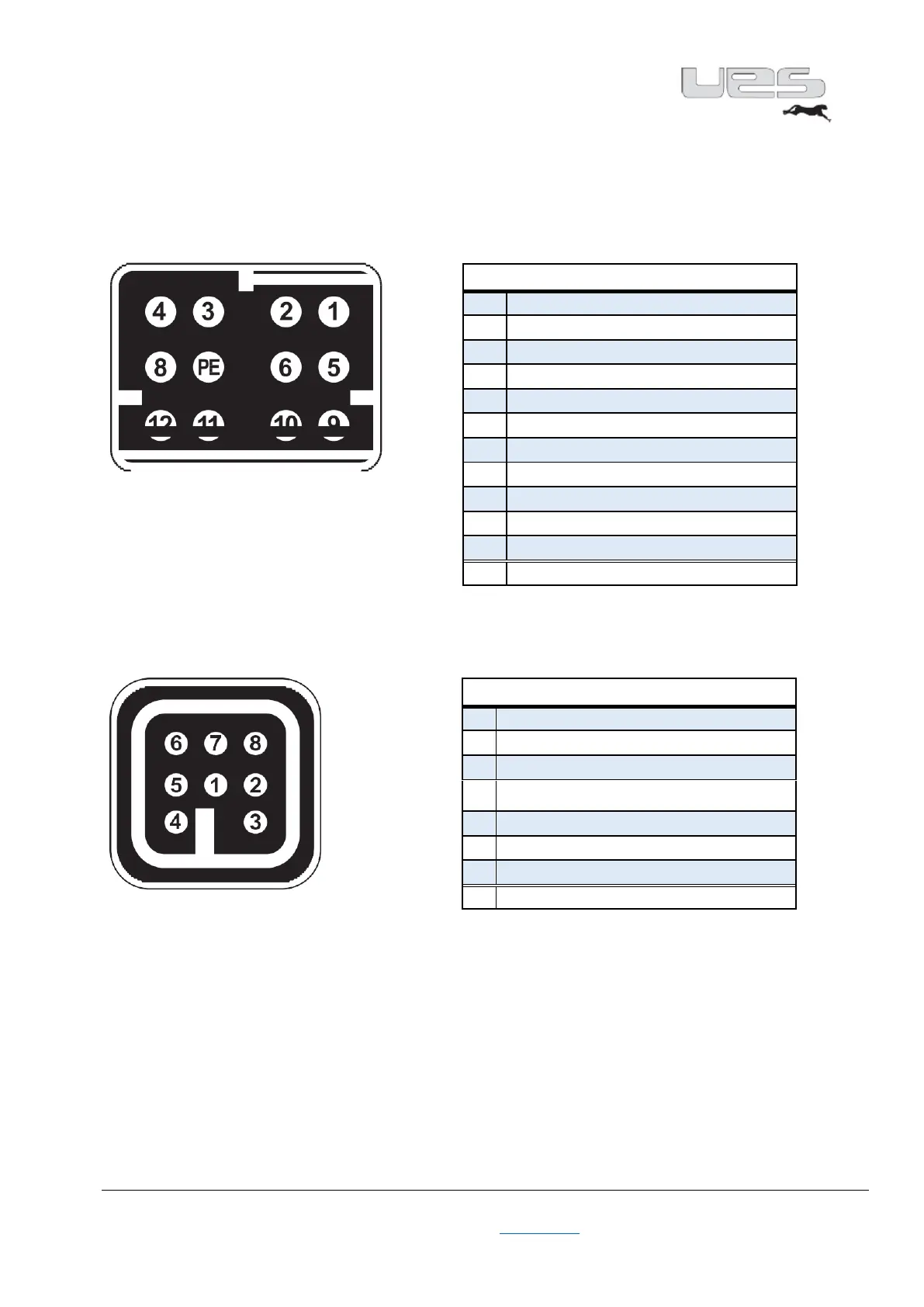

Socket assignment on UES systems, depending on the model
UES Series 3000 (NI120)
1
Heating head
2
Heating head
3
Sensor head (NI120)
4
Heating hose
5
Sensor hose + head (NI120)
6
Heating hose
PE
Protective conductor
8
Sensor hose (NI120)
9
not assigned
10
not assigned
11
not assigned
12
not assigned
HAN 7 (PT100)
1
Heating head
2
Heating head
3
Sensor head (PT120)
4
Heating hose
5
Sensor head/hose (PT100)
6
Heating hose
7
Sensor hose (PT100)
8
PE (Protective conductor)
Sensor type set to PT100 in the "Service" menu!
