The following example demonstrates how to configure the User-Defined ISBT identifiers:
Assume the left-hand identifiers are the ISBT defined donation identification number: “=G”;
and the right hand identifiers are country specific identifiers “&a”.
1. Scan the ENTER/EXIT configuration mode bar code.
2. Scan the 1
st
Left Identifier configuration mode bar code.
3. Scan (Code Byte 0) + (Code Byte 6) + (Code Byte 1).
4. Scan the 2
nd
Left Identifier configuration mode bar code.
5. Scan (Code Byte 0) + (Code Byte 7) + (Code Byte 1).
6. Scan the 1
st
Right Identifier configuration mode bar code.
7. Scan (Code Byte 0) + (Code Byte 3) + (Code Byte 8).
8. Scan the 2
nd
Right Identifier configuration mode bar code.
9. Scan (Code Byte 0) + (Code Byte 9) + (Code Byte 7).
10. Scan the Enable User-Defined Sequence bar Code.
11. Scan the Enable ISBT bar code.
12. Scan the ENTER/EXIT configuration mode bar code.
The scanner is now configured with the appropriate identifiers. Since both ISBT and
User-defined Concatenation are enabled, ISBT 128 bar codes scanned successively that
contain these identifiers will be concatenated.
An alternate method of the type found in section 4.8.1 of the ISBT specifications can be used
for configuring user-defined concatenation sequences. Using the previous example, the
identifiers can be configured into a single configuration mode bar code. The following bar
codes can be used to enable and disable the user-defined concatenation.

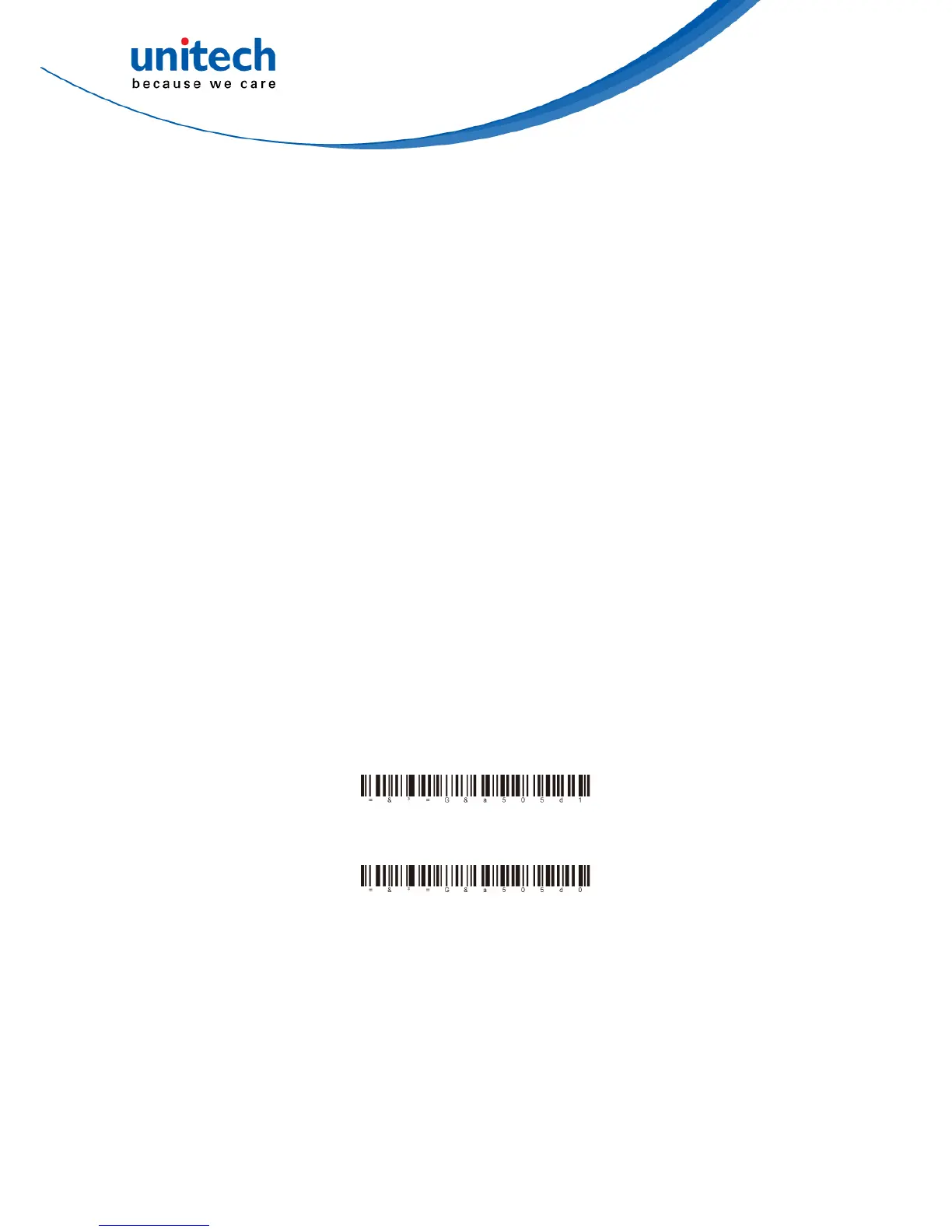

Enable (Left, =G) + (Right, &a)
Disable (Left, =G) + (Right, &a)
Note: These configuration bar codes require Single-Code configuration mode. These bar
codes are not recognized in Multi-Code configuration mode.
Two forms of concatenation can be enabled at any given time, one pre-defined sequence and
the user-defined sequence. Code selects and ISBT Code-128 concatenation cannot be used
simultaneously. Both functions use the same internal resources so they must remain mutually
exclusive.
