Appendix A
Code Bytes Usage
The scanner must be in Configuration Mode for the features requiring code bytes for
configuration. The Enter/Exit Configuration Mode bar code must be scanned before starting the
configuration cycle. User configurable prefix/suffix characters can then be saved by scanning
the 3 digit decimal equivalent of the ASCII character into the appropriate character location with
the code byte bar codes.
Example: To add an Asterisk (*) as a Prefix scan the following bar codes in order.
1. Enter/Exit Configuration Mode (3 beeps)
2. Configurable Prefix #1 (1 beep)
3. Code Byte 0 (1 beep)
4. Code Byte 4 (2 beeps)
5. Code Byte 2 (3 beeps)
6. Enter/Exit Configuration Mode (3 beeps)

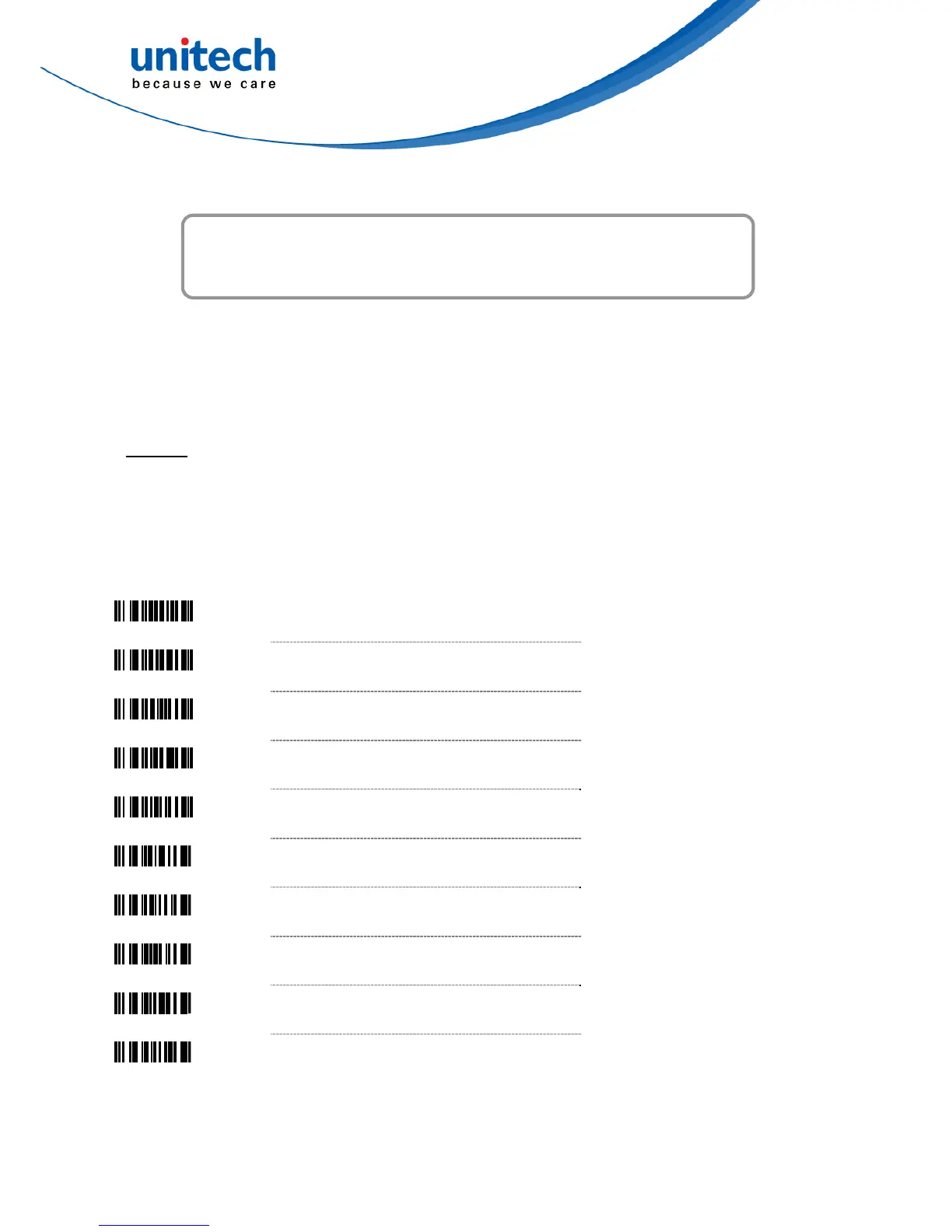

Code Bytes 0–9
³0
Code Byte 0
³1
Code Byte 1
³2
Code Byte 2
³3
Code Byte 3
³4
Code Byte 4
³5
Code Byte 5
³6
Code Byte 6
³7
Code Byte 7
³8
Code Byte 8
³9
Code Byte 9
49
