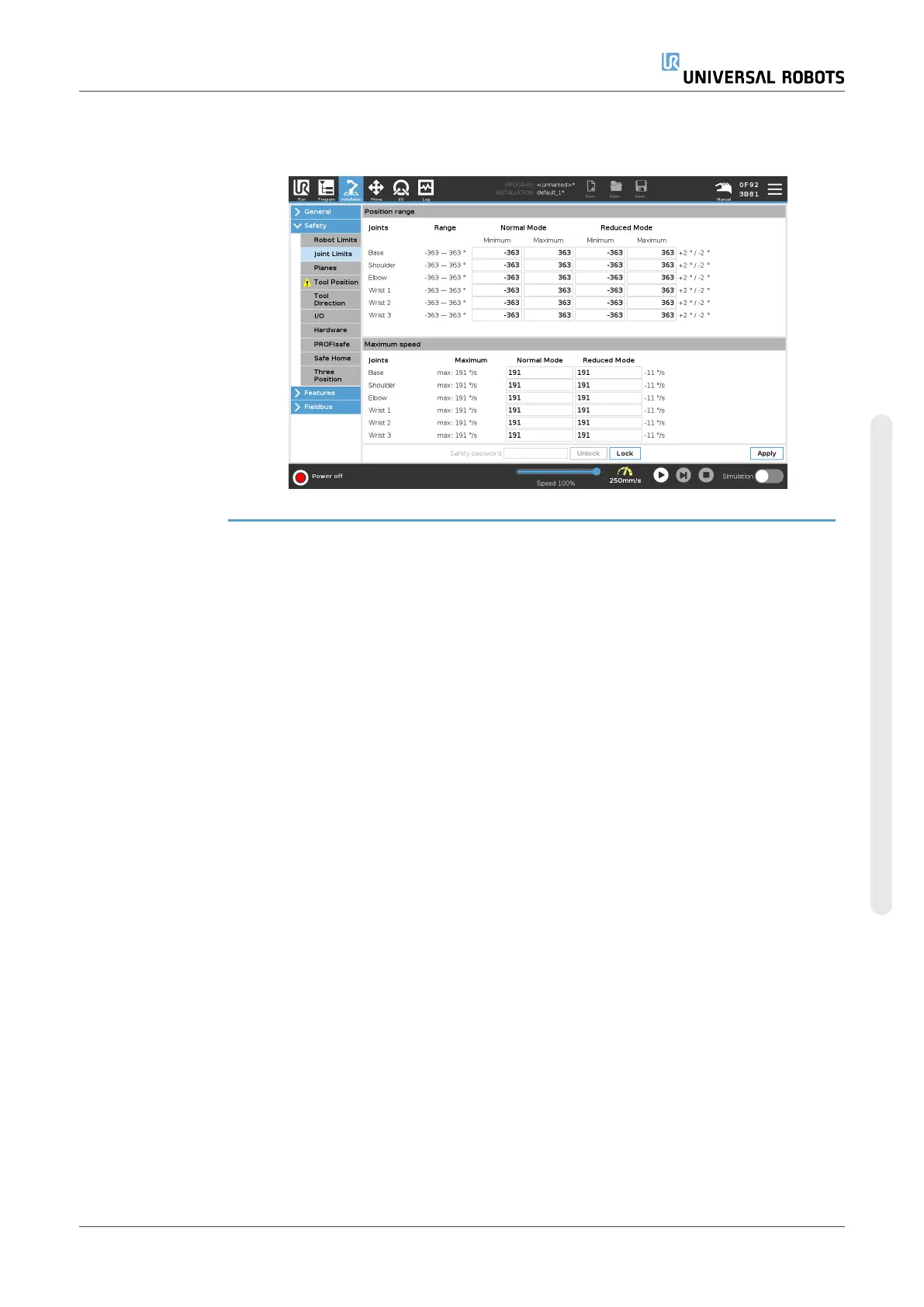

Description Joint Limits allow you to restrict individual robot joint movements in joint space i.e. joint

rotational position and joint rotational speed. There are two Joint Limits options:

Maximum speed and Position range.

User Manual 147 UR10e
