Universal Robots ur3 Service Manual

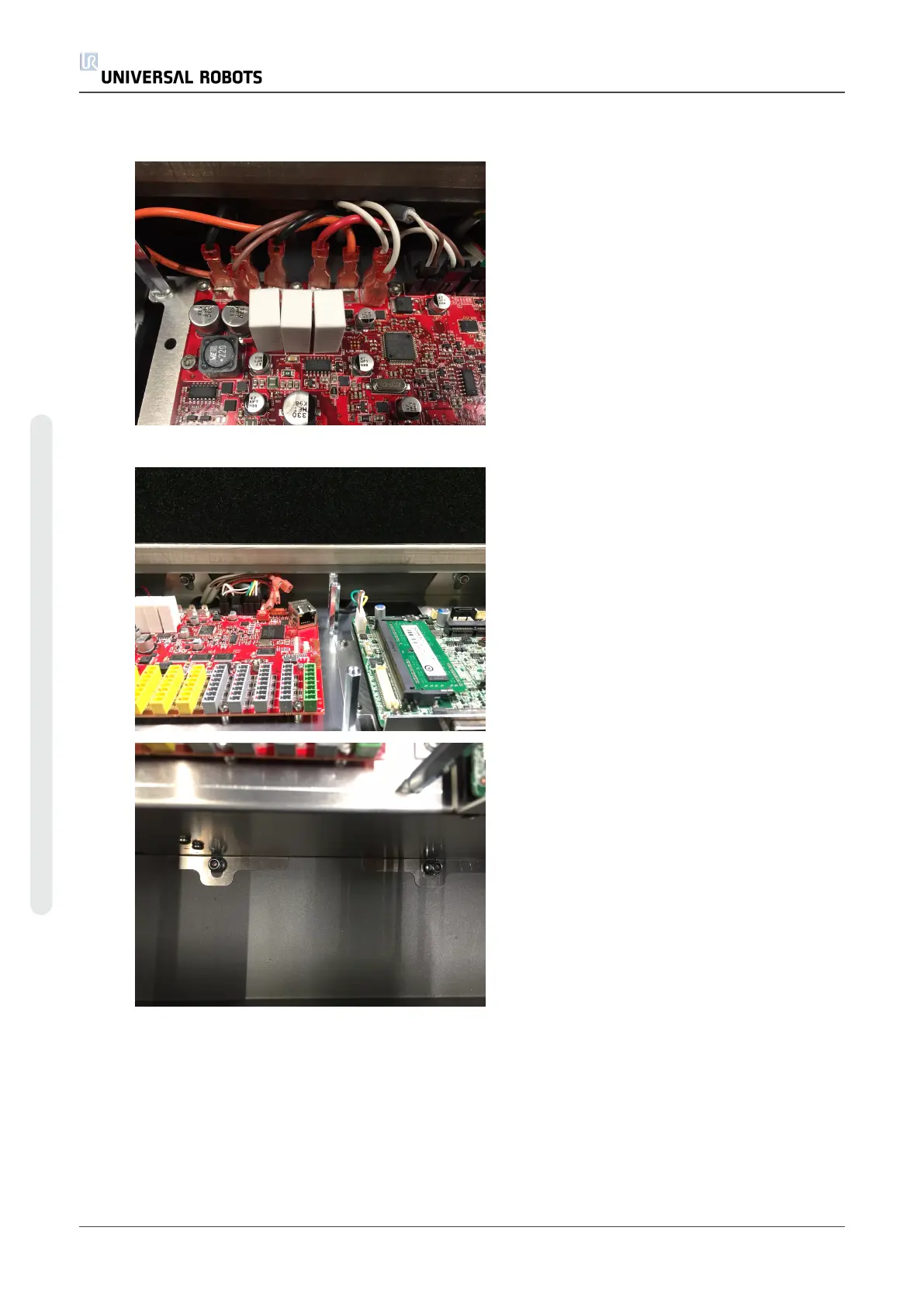

1. Remove teach pendent cable – see previous section
2. Disconnect all the marked wires from the SCB.
3. Remove the 4 nuts (M6) in the top and bottom of controller module.
4. Gently take out the controller module from the controller box.
5. Turn the module 90° counterclockwise and place it on the controller edge.
UR3 74 Service Manual
5.Service and Replacement of Parts
Copyright © 2009–2021 by UniversalRobotsA/S. All rights reserved.
