5.2.19. Wire bundle installation guide
General
As well as the Wire bundle kit for the correct joint size, the Following ESD approved tools are
recommended for this replacement:
• Tool for pressing in the pins
• Small flat nose plier
• Cable tie tension and cutting tool
• Small flathead screwdriver
• Tweezers
• Crimping tool for cable shoes
Time expected: 20min (joint disassembly time not included)
Size 0 - part number: 103500
Note: wrist 3 needs to be send to UR for repair

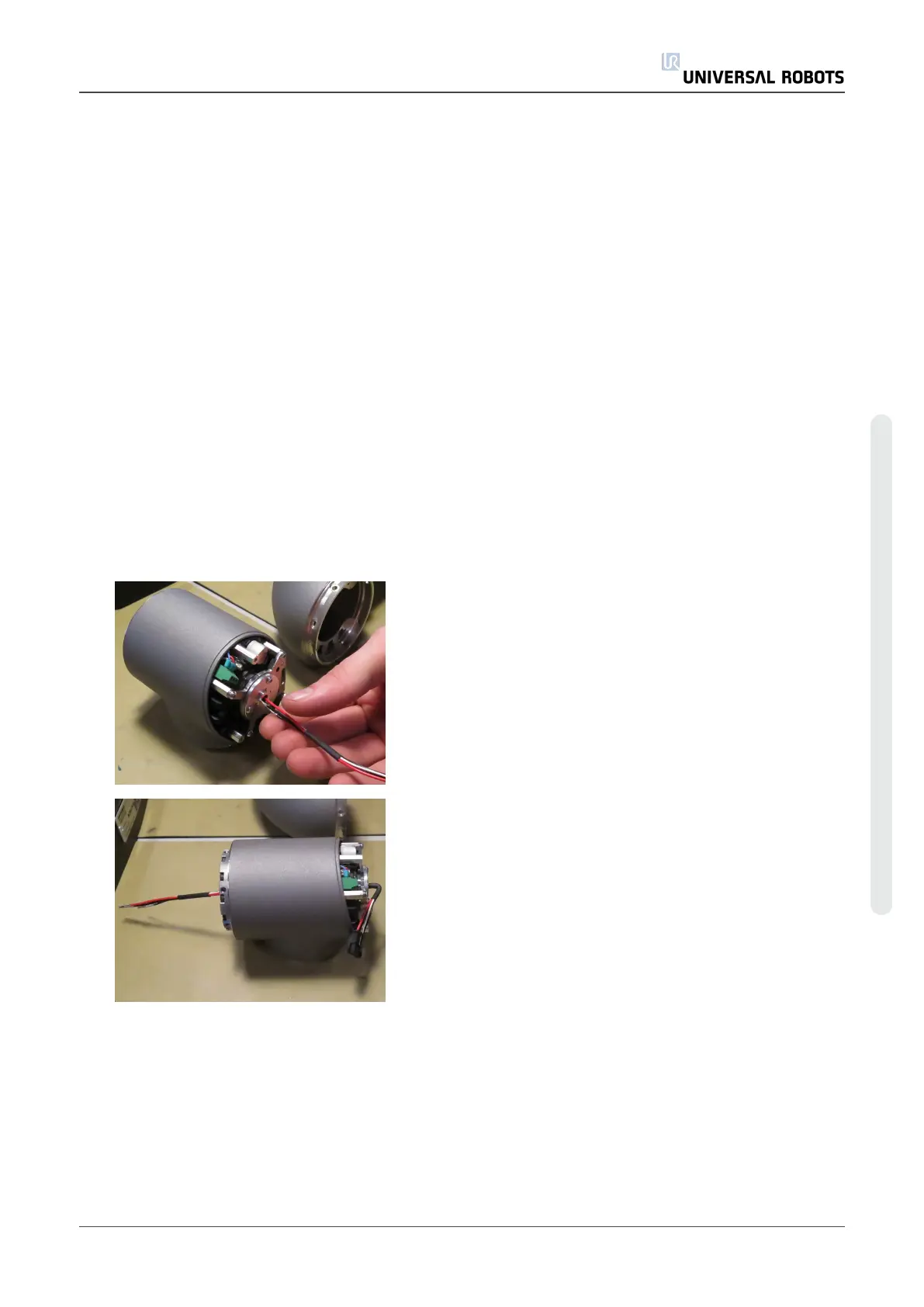

Inset wire bundle as shown on photo
Should look like the photo when done
Service Manual 51 UR3
