Usystems EDGE-3 - Door Removal - Front; Door Removal - Rear

EDGE-3 Soundproof MDC O&M
Page 16
Installaon

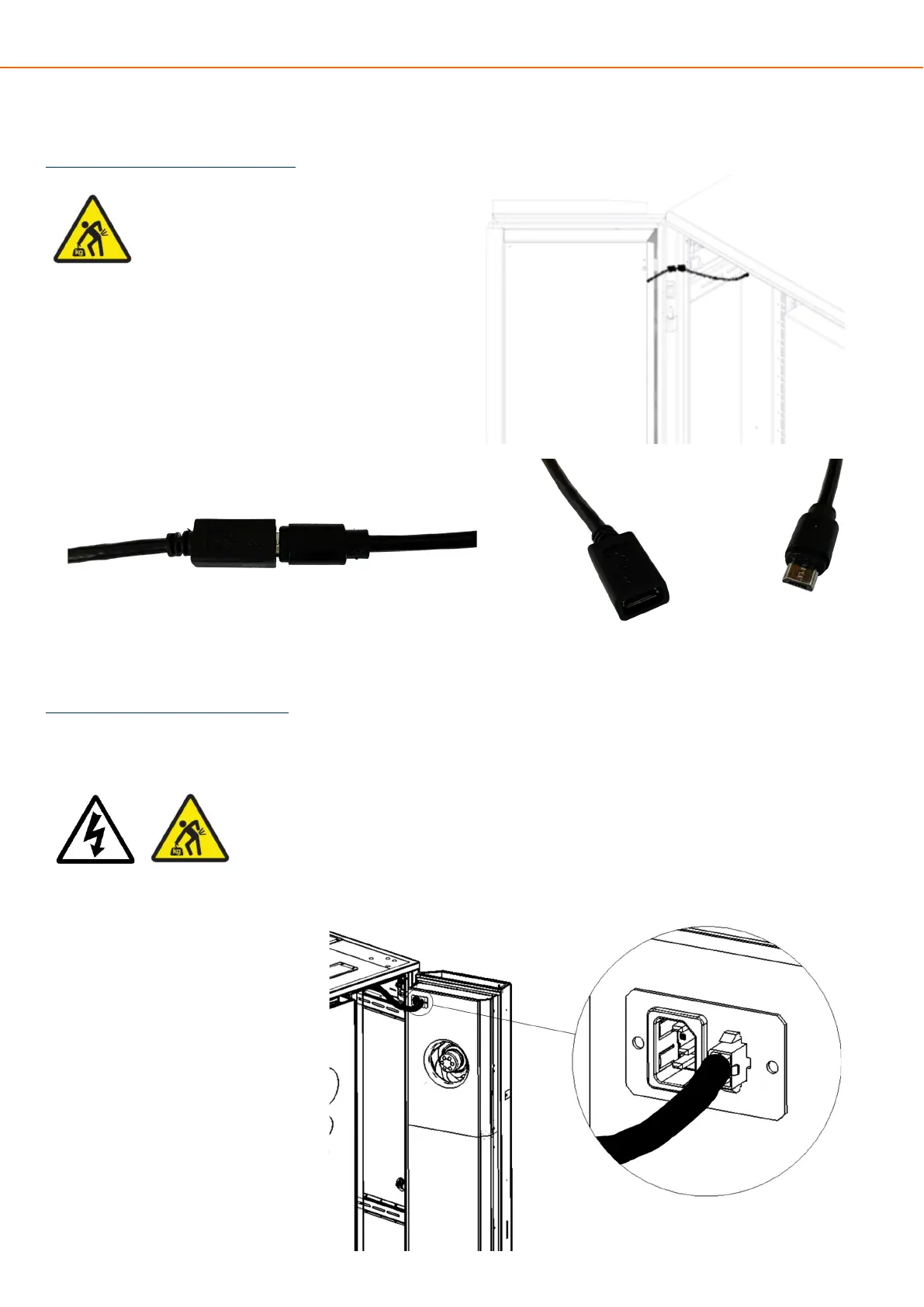

Door removal - Front passive (non-fan)
When removing LCD door, make sure that the micro usb cable
aached to the door has been disconnected.
Open both doors to 135° (does not need to be exact) to allow the most grip when holding onto the door and li o both hinges.
Door removal – Rear Acve (Fan side)
Please follow local safety protocols
Advisory 2 people to remove this door
Turn acve door to a 135° posion and unplug the IEC power connector and 6 way Molex as shown and li the door of its hinges.
