Installaon

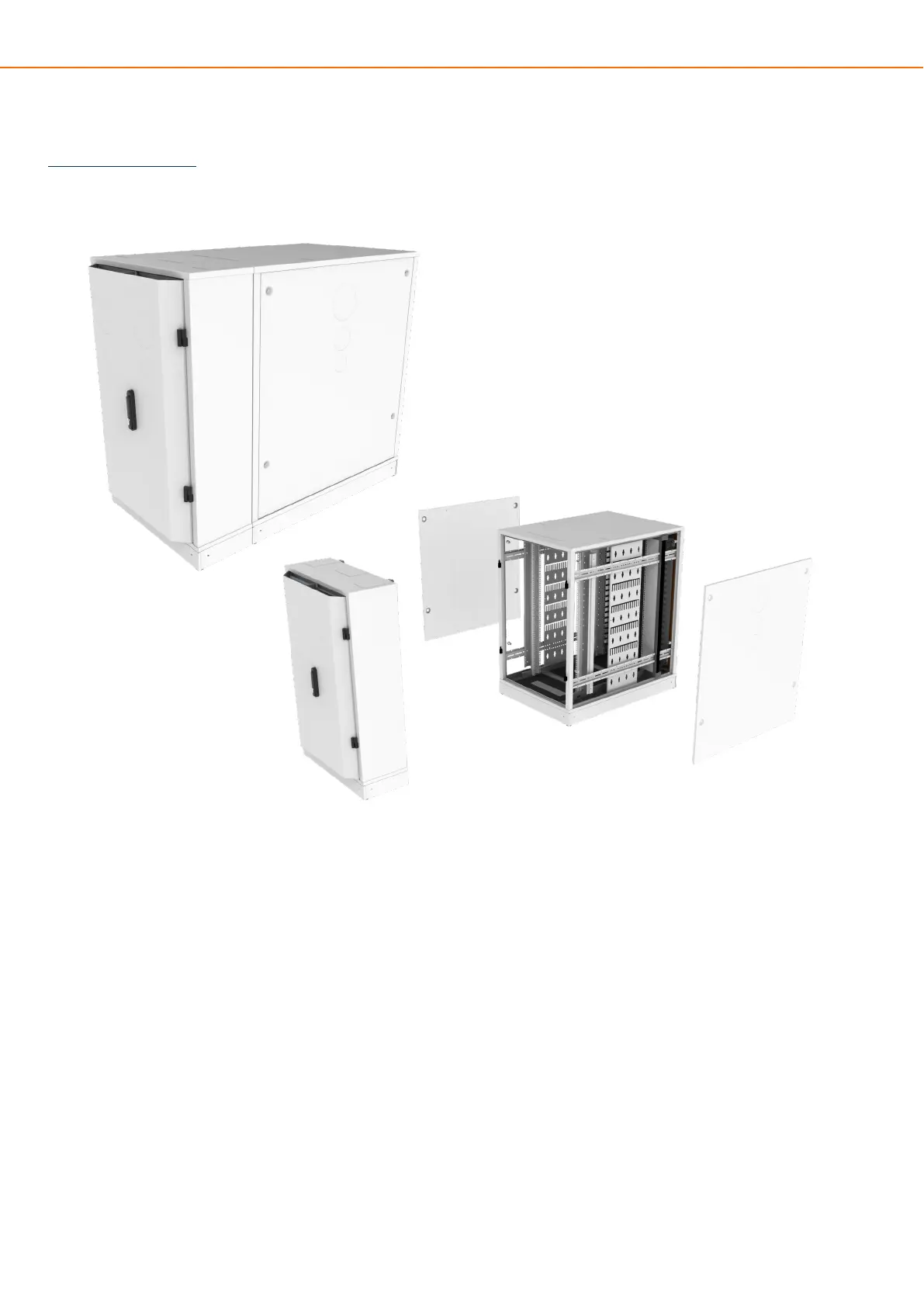

Extension Assembly kit
The EDGE-3 rear extension kit allows larger equipment to be put inside, giving an addional 200mm depth. It is fully retroable
and will not adversely aect the performance of the cabinet.
1. Remove the rear acve doors, following instrucons on page 16.
2. Remove original hinges on frame using allen key via relief in corners post (rear of hinge).
3. Fix 4x retainer brackets onto lid and base using m6 xings.
4. Fit extension unit using M6 xings supplied into 4x retainer brackets (lid and base).
5. Aach the acve doors and use the extensions cables provided to accommodate the extended length.
