Usystems EDGE-3 - Fan Panel Removal

Page 17
Installaon
Fan Panel removal
To removal/replace a fan panel turn o power to the fans.

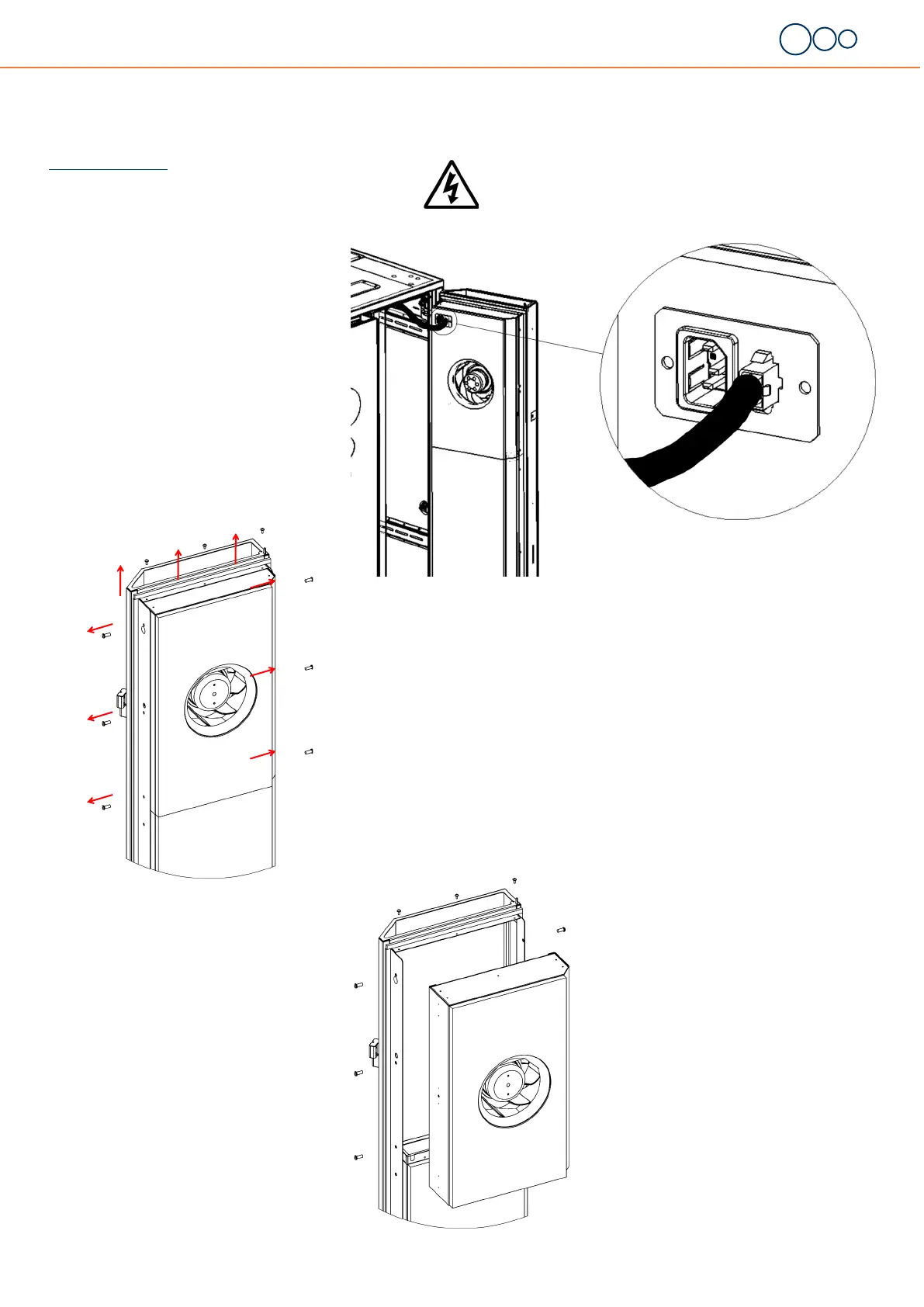

1. Disconnect the IEC and fan
connector cable from the fan panel
2. Using a Philips screwdriver
unscrew the 9 screws surround-
ing the fan panel as shown
3. The fan panel will now slide out,
reverse the removal procedure to
install the fan module
