2GM
1-6-16
10. Remove the main PWB (see page 1-6-10).
11.
Remo
ve the scre
w and then remove the grounding plate
.
12. Remove the screw and then remove the feed clutch.
13.
Remo
ve three stop rings.
14. Remove MP feed clutch (gear), feed clutch (gear), and registration clutch (gear).

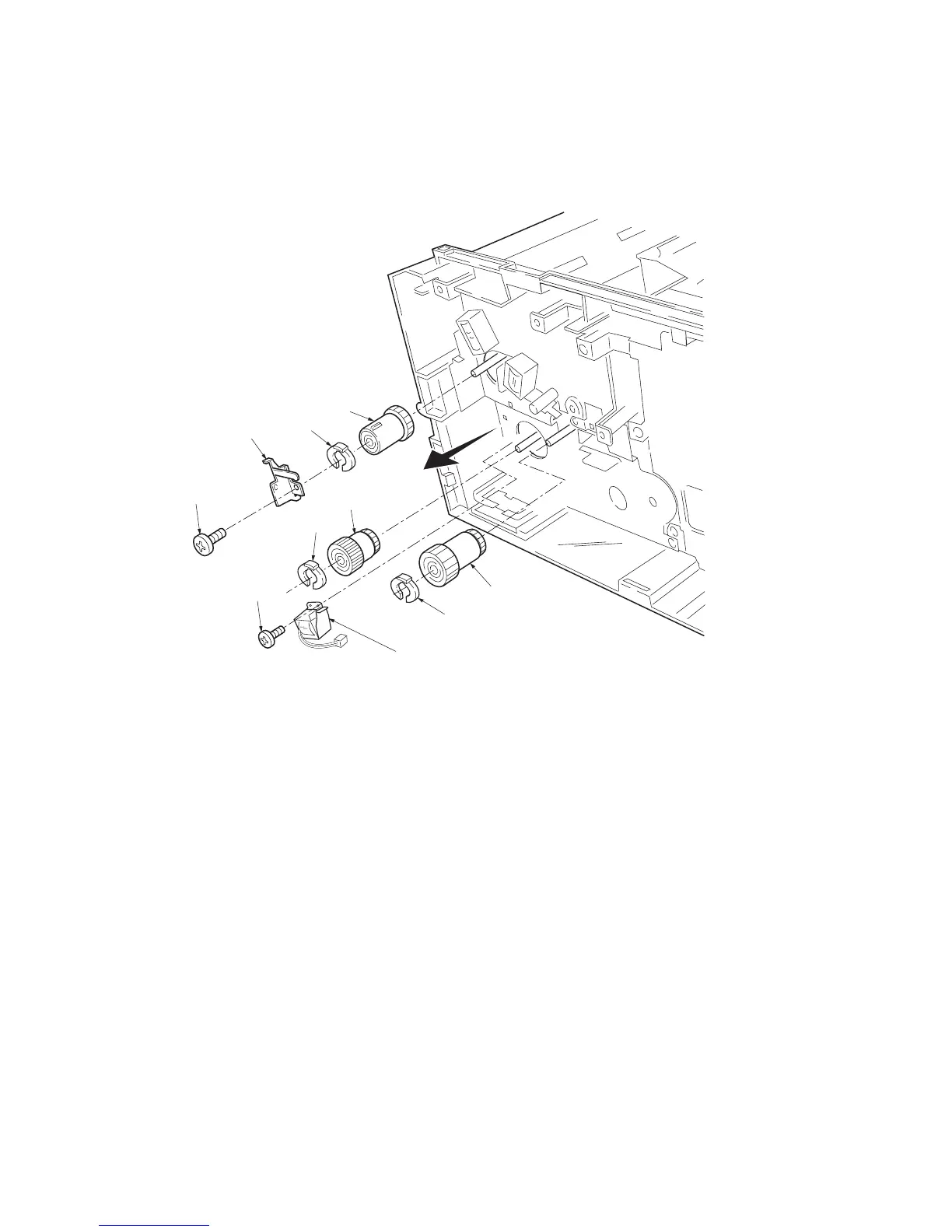

Figure 1-6-19 Removing the c
lutches
Stop ring
Stop ring
Stop ring
MP feed clutch (gear)
Feed clutch (gear)
Feed clutch
Registration clutch (gear)
Screw
Screw
Grounding
plate
108
110
