Utax CD 1018 User Manual

2GM
2-1-3
(2) Paper feeding mechanism

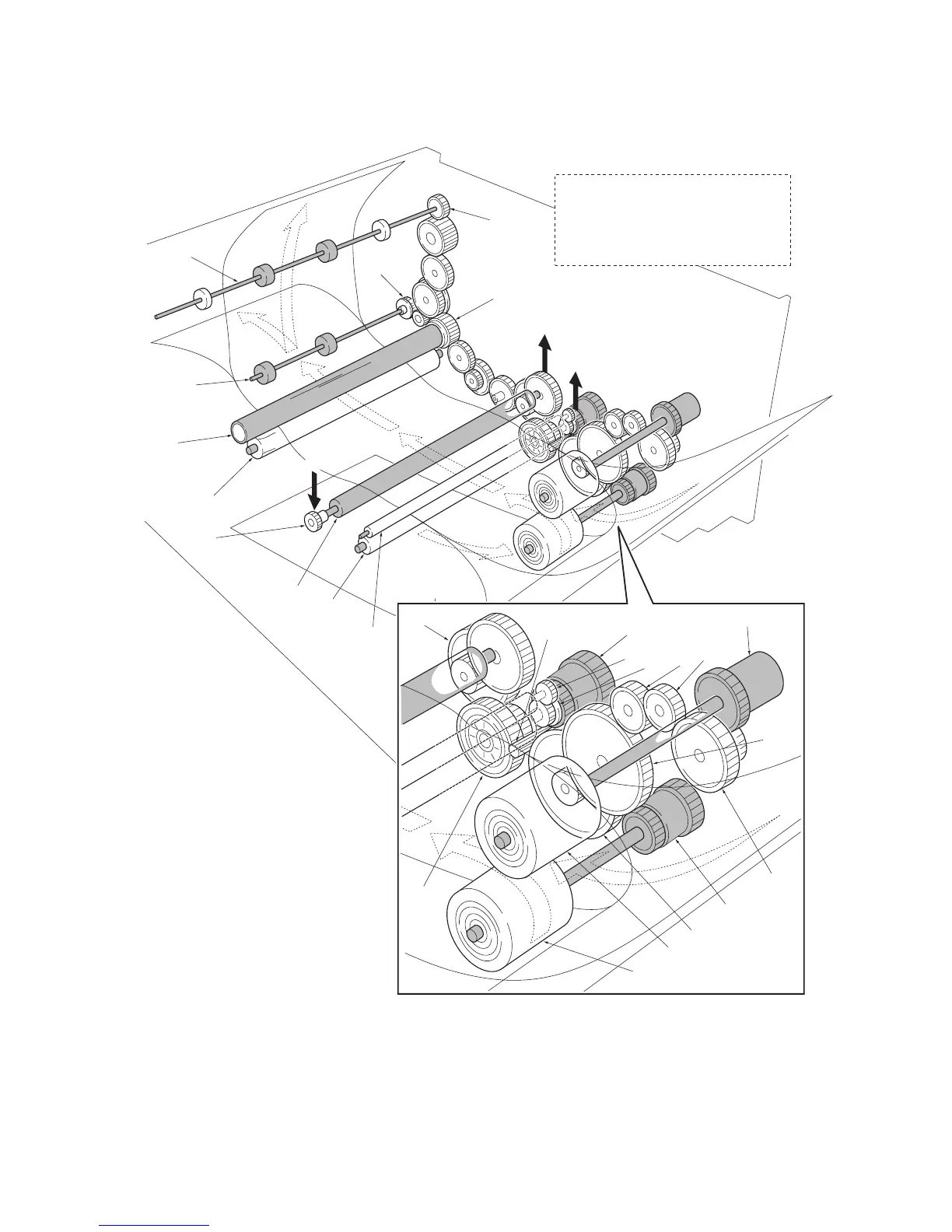

Figure 2-1-3 Paper feeding mechanism
0
!
@
%
(
&
A
B
#
$
*
)
^
3
fi
›
4
¤
5
6
2
fl
1
⁄
7
8
9
‹
C
A For process unit; drum (From main unit)
B For process unit; toner container,
developing roller etc. (From main unit)
C From process unit; drum
(To transfer roller)
Driving power train
1 Main motor (gear)
2 Registration clutch
3 MP feed clutch
4 Feed clutch
5 MP feed roller
6 Feed roller
7 Registration gear Z13
8 Registration gear Z20
9 Gear 53
0 Lower registration roller
! Upper registration roller
@ Transfer roller
# TC gear Z18
$ Press roller
% Heat roller
^ Heat gear Z33
& Lower exit roller
* Exit gear Z23
( Upper exit roller
) Exit gear Z23 UP
⁄ Gear 21
¤ Gear 95-21
‹ Gear 36-21
› Gear 24
fi Gear 21
fl Gear 48-21
