(4) Adjusting magnification of the scanner in the main scanning direction
Perform the following adjustment if the magnification in the main scanning direction is not correct.
U067
(P. 1-6-47)
U065
(main scanning
direction)
U065
(auxiliary scanning
direction) (P. 1-6-45)
Caution:
Before making the following adjustment, ensure that the above adjustments have been made in maintenance mode.
Also, perform “(5) Adjusting magnification of the scanner in the auxiliary scanning direction” (page 1-6-45) and “(7)
Adjusting the scanner center line” (page 1-6-47) after this adjustment.
Procedure
Original Copy
example
Copy
example 2

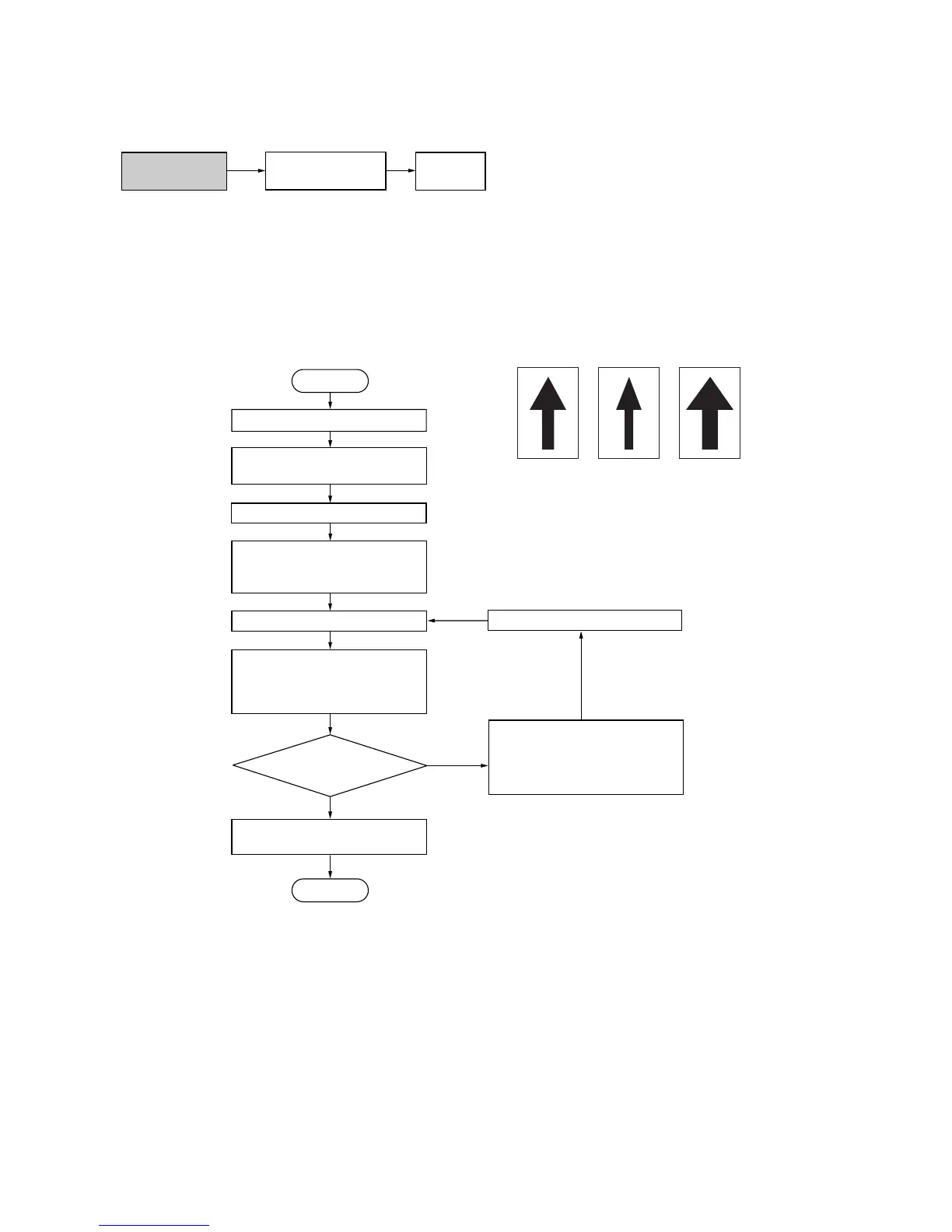

Figure 1-6-55
Enter maintenance mode.
Enter 065 using
up/down cursor keys.
Yes
No
Start
End
Press the system menu/counter key.
Place an original and press
the start key to make a test copy.
(Printing cannot be stopped until the
preset number of sheets is printed.)
Is the image correct?
Setting range: –25 to +25
Initial setting: 0
Changing the value by 1 changes
the magnification by 0.1%.
Increasing the value makes
the image wider, and decreasing it
makes the image narrower.
Press the system menu/counter key.
For copy example 1, increase the
value using the right cursor key.
For copy example 2, decrease the
value using the left cursor key.
Press the enter key.
The new setting
is stored.
Select Main Scan Adj.
(main scanning direction)
using up/down cursor keys.
Press the enter key.
Press the back key to
exit maintenance mode.
