2GM
1-6-5
1-6-4 Removing the f
eed roller
CAUTION
When refit the feed roller
, fit the D-cut shaft into the D-shape hole of the feed roller
.
1.
Remove the cassette and the process unit (see page 1-6-2).
2.
Stand the machine the front side up.
3.
Move the f
eed roller in the direction
A
, and remov
e the f
eed roller
.

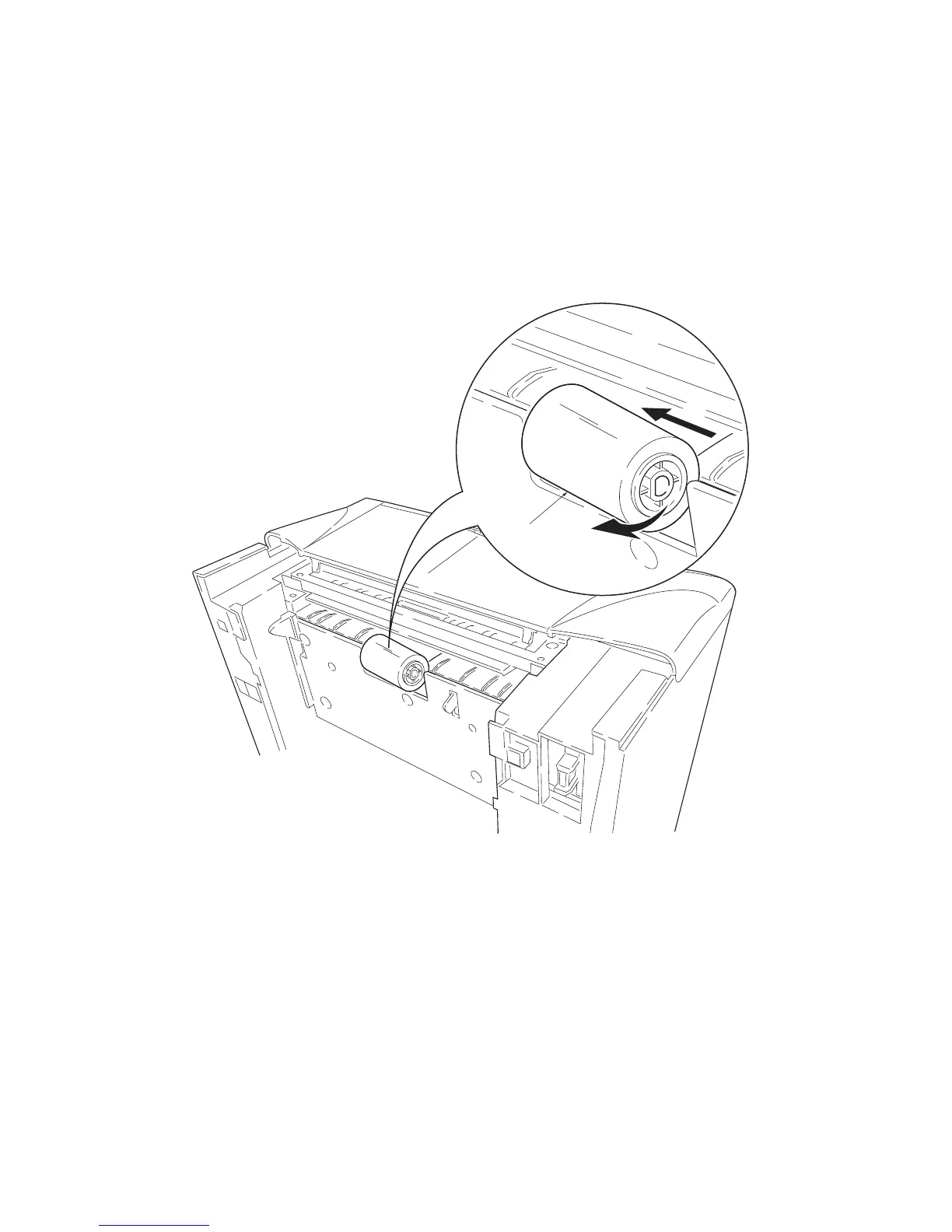

Figure 1-6-6 Removing the feed roller
A
Feed roller
97
99
