2GM
2-1-8
(1-1) Process unit mechanism

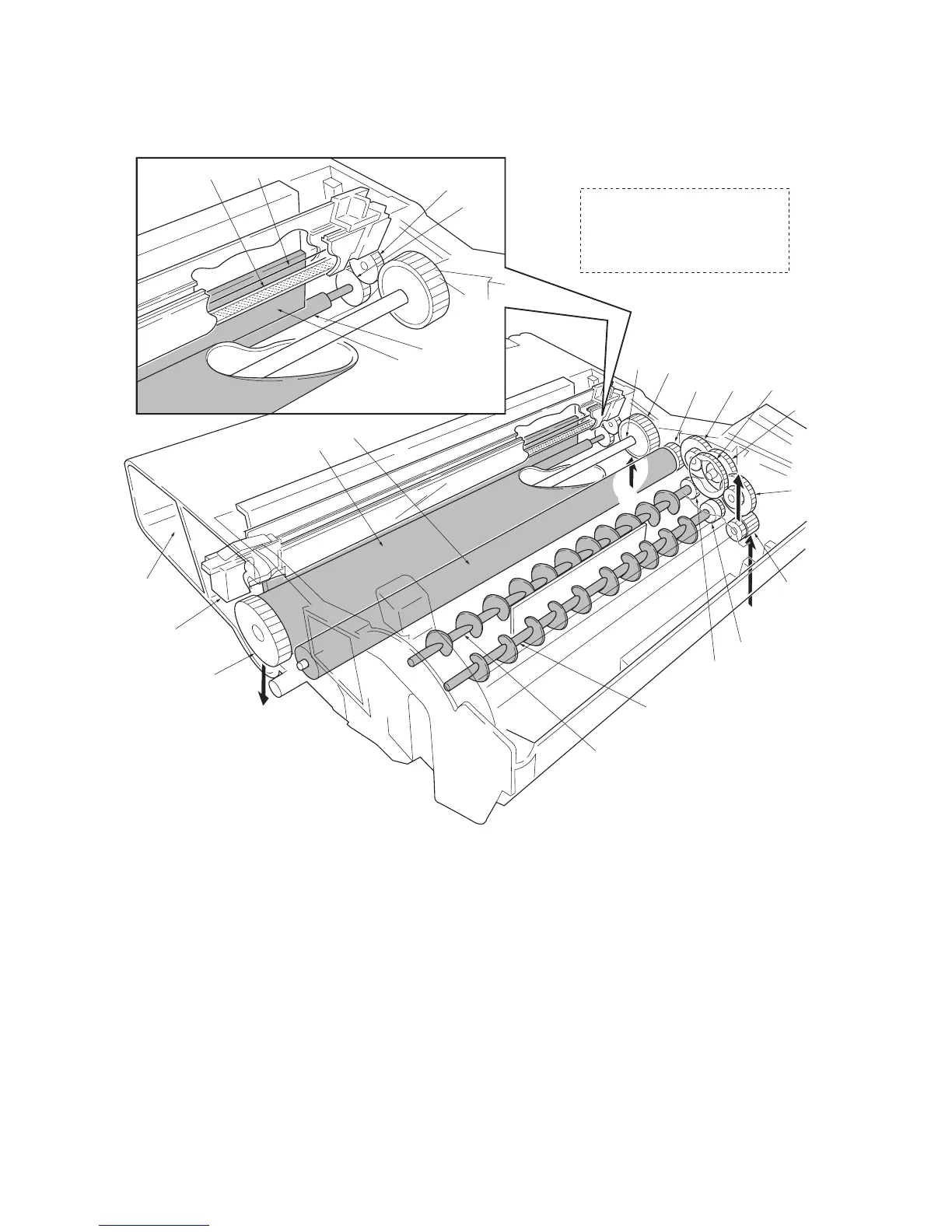

Figure 2-1-8 Process unit mechanism
1
‹
*
%
4
5
6
7
89
0
^
&
#
$
D
A
B
C
2
3
)
(
⁄
¤
@
!
Driving power train
A For drum (From main unit)
B For toner container, developing
roller, etc. (From main unit)
C For main unit (Transfer roller)
D For toner container
1 Main charger unit
2 Charger wire
3 Grid
4 Developing roller
5 Gear Z14-Z18
6 Gear Z14-Z36
7 Gear Z18-Z36
8 Free gear Z40
9 Gear Z18-Z35H
0 MAG gear Z24H
! Mixer gear Z20 B
@ Mixer gear Z20 A
# DLP screw B
$ DLP screw A
% Drum
^ Drum gear Z35H
& Drum shaft
* Drum gear Z36
( Sweep gear Z13
) Idle gear 18H
⁄ Cleaning blade
¤ Sweep roller
‹ Waste toner reservoir
