2GM
1-6-25
(5) Removing the thermal cutout
CAUTION
•
Do not bend the terminals of the thermal cutout.
1.
Remove and split the fuser unit (see page 1-6-18).
2.
Remove the heater lamp (see page 1-6-21).
3.
Remove the heat roller (see page 1-6-22).
4.
Remove two screws.
5.
Remove the thermal cutout.

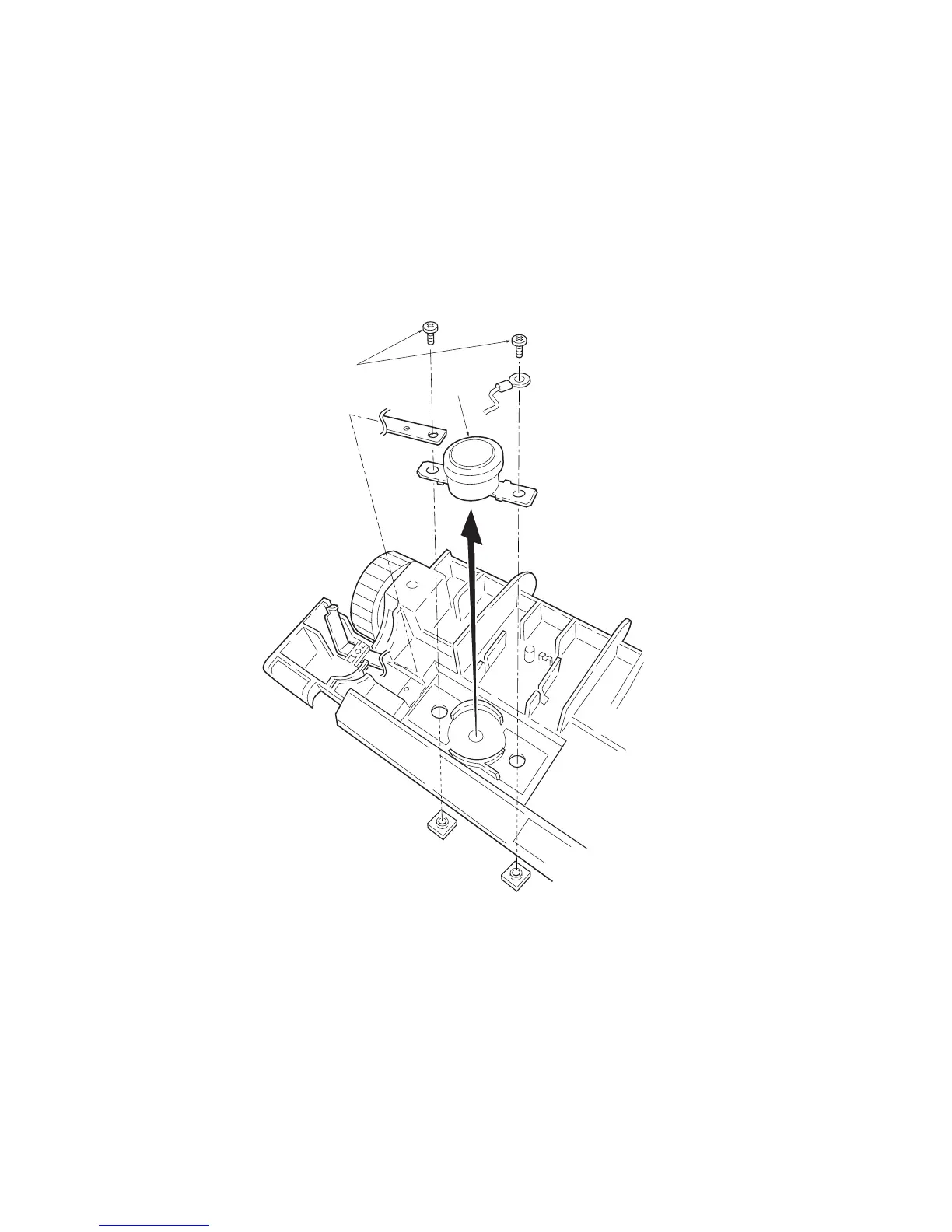

Figure 1-6-28 Removing the thermal cutout
Screws
Thermal
cutout
117
119
