2GM
1-6-21
(2) Removing the heater lamp
WARNING
• The heater lamp is extremely hot immediately after the machine was running.
• Allow substantial period of time until it cools down. Also, the heater lamp is fragile: Handle it with great care.
CAUTION
• The heater lamps are fragile. Use extreme care when handling not to drop or break.
• Do not directly touch on the heater lamp. Finger prints on the heater lamp’s outer surface can prevent proper fusing of
toner on paper.
• When refitting the heater lamp, direct the short distance side from the projection in the middle of the lamp facing the
machine’s left side.
1. Remove and split the fuser unit (see page 1-6-18).
2. Remove all (four) separation claws (see page 1-6-20).
3. Remove the screw, release the tension of the lamp A holder.
4. Remove the heater lamp form the lamp B holder.
5. Remove the heater lamp from the heat roller.

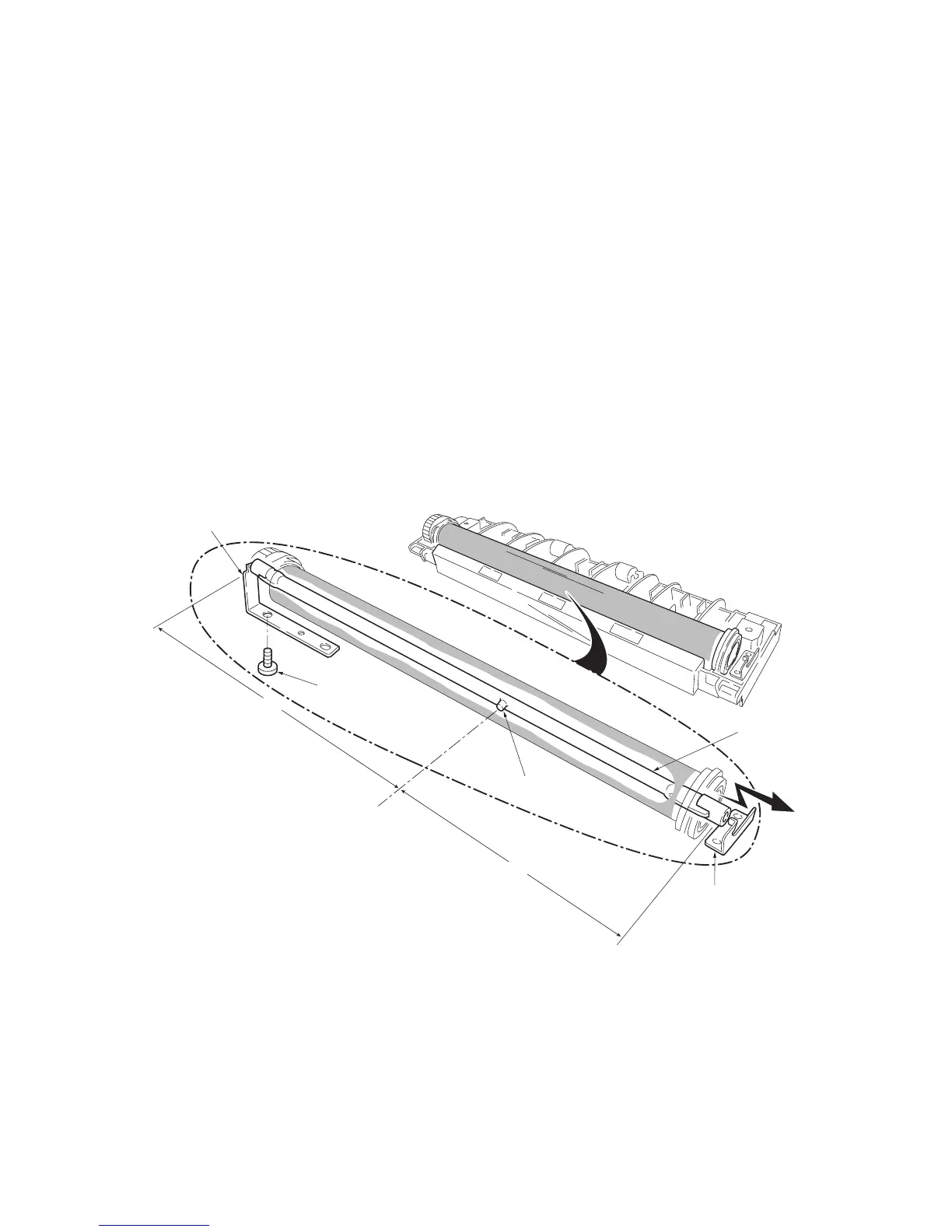

Figure 1-6-24 Removing the heater lamp
Machine
left side
Machine
right side
Projection
Heater lamp
Lamp B holder
Lamp A holder
Short
Long
Screw
To Next Page
