2GM
1-6-46

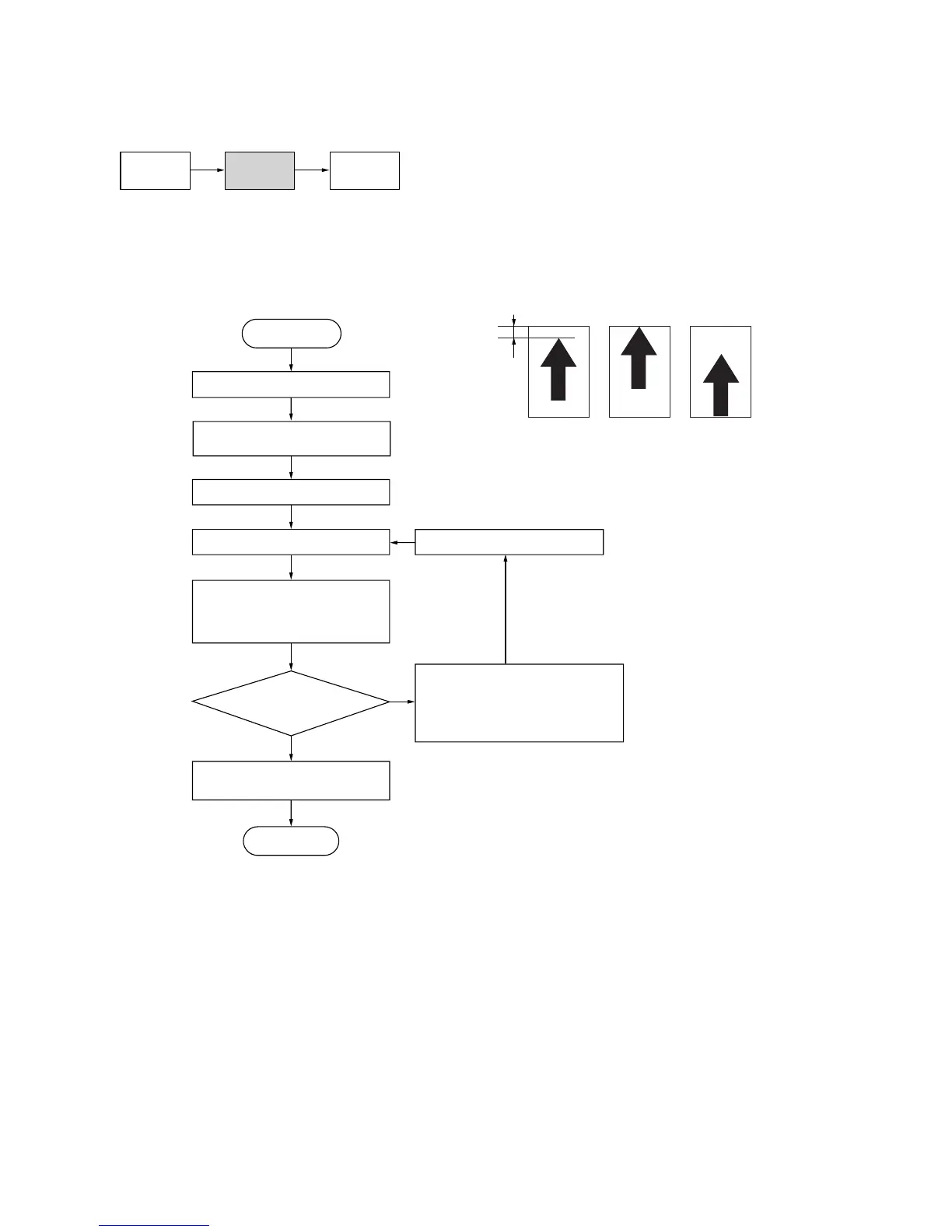

(6) Adjusting the scanner leading edge registration
Perform the following adjustment if there is regular error between the leading edges of the copy image and original.
U034
(P. 1-6-41)
U071
(P. 1-6-50)
U066
Caution:
Before making the following adjustment, ensure that the above adjustments have been made in maintenance mode.
Procedure
Is the scanner
leading edge registration
correct?
Yes
No
Start
Enter maintenance mode.
Enter 066 using
up/down cursor keys.
Press the enter key.
Press the system menu/counter key.
Place an original and press
the start key to make a test copy.
(Printing cannot be stopped until the
preset number of sheets is printed.)
Press the system menu/counter key.
For copy example 1, decrease
the value using the left cursor key.
For copy example 2, increase
the value using the right cursor key.
Press the enter key.
The new setting
is stored.
Press the back key to
exit maintenance mode.
Setting range : –32 to +32
Initial setting: 6
Changing the value by 1 moves
the leading edge by 0.254 mm.
End
Original Copy
example 1
Copy
example 2
Leading edge registration
Figure 1-6-57
To Next Page
