2GM
1-6-48
(8) Adjusting the margins for scanning an original on the contact glass
Perform the following adjustment if the margins are not correct.
U404
(P. 1-6-53)
U403
Caution:
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.

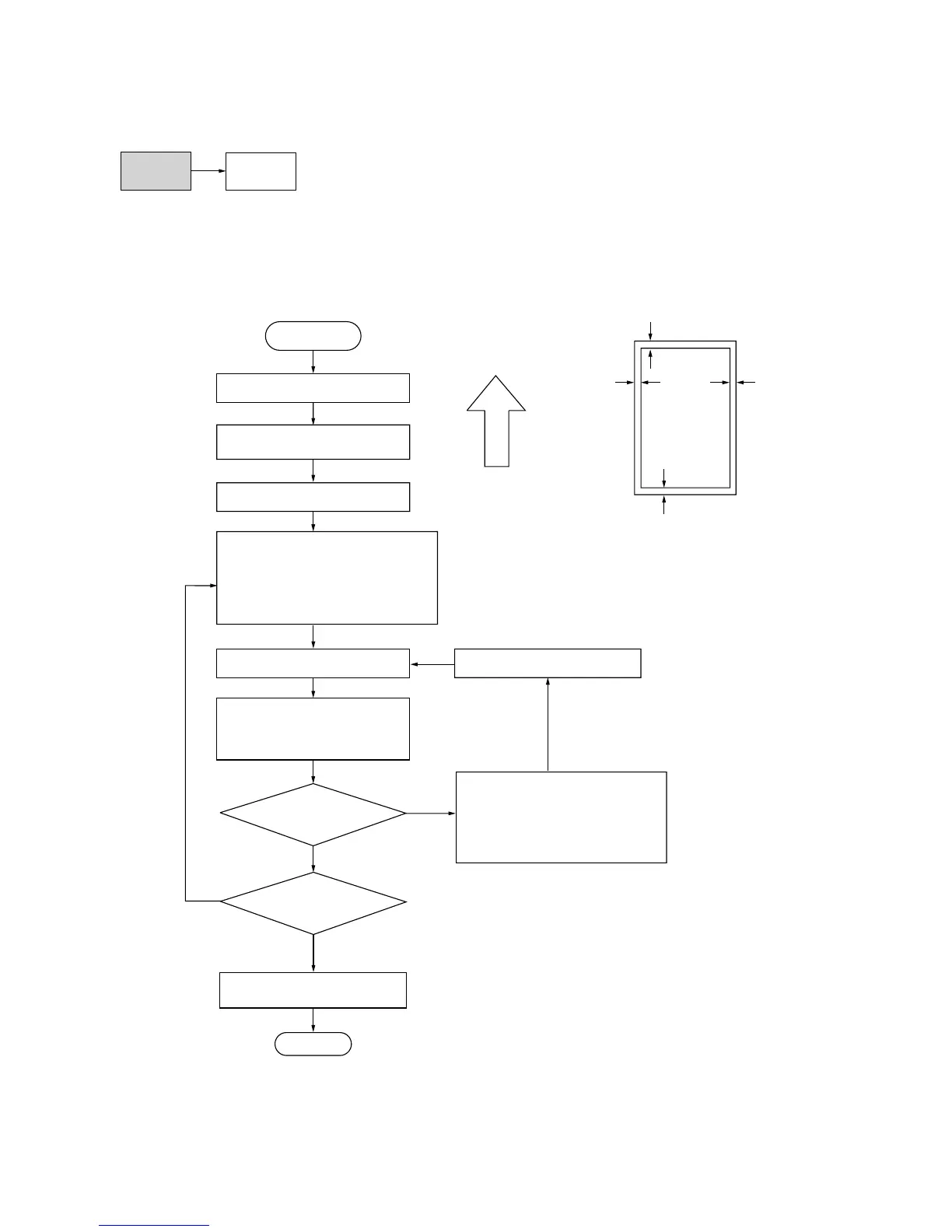

Procedure
Scanner leading edge margin (3 ± 2.5 mm)
Scanner
left margin
(3 ± 2.5 mm)
Scanner
right margin
(3 ± 2.5 mm)
Ejection direction
(reference)
Scanner trailing edge margin
(3 ± 2.5 mm)
Press the system menu/counter key.
Increasing the value using the right
cursor key makes the margin wider.
Decreasing the value using the left
cursor key makes the margin
narrower.
Yes
No
Start
Enter maintenance mode.
Enter 403 using
up/down cursor keys.
Press the enter key.
A Margin: Scanner left margin
B Margin: Scanner leading edge margin
C Margin: Scanner right margin
D Margin: Scanner trailing edge margin
Place an original and press
the start key to make a test copy.
(Printing cannot be stopped until the
preset number of sheets is printed.)
Press the enter key.
The new setting
is stored.
Setting range (change in value per step)
Scanner left margin: 0.0 to +10.0 (0.5 mm)
Scanner leading edge margin: 0.0 to +10.0 (0.5 mm)
Scanner right margin: 0.0 to +10.0 (0.5 mm)
Scanner trailing edge margin: 0.0 to +10.0 (0.5 mm)
Select the item to be adjusted
using up/down cursor keys.
Are the margins correct?
Press the system menu/counter key.
Yes
No
Proceed to another mode?
End
Press the back key to
exit maintenance mode.
Figure 1-6-59
To Next Page
