1-3-16
2GM
1-3-2 Connecting the cables
(1) Connecting the network cable
To connect the machine to a network, use an network cable (10Base-T or 100Base-TX).
Procedure

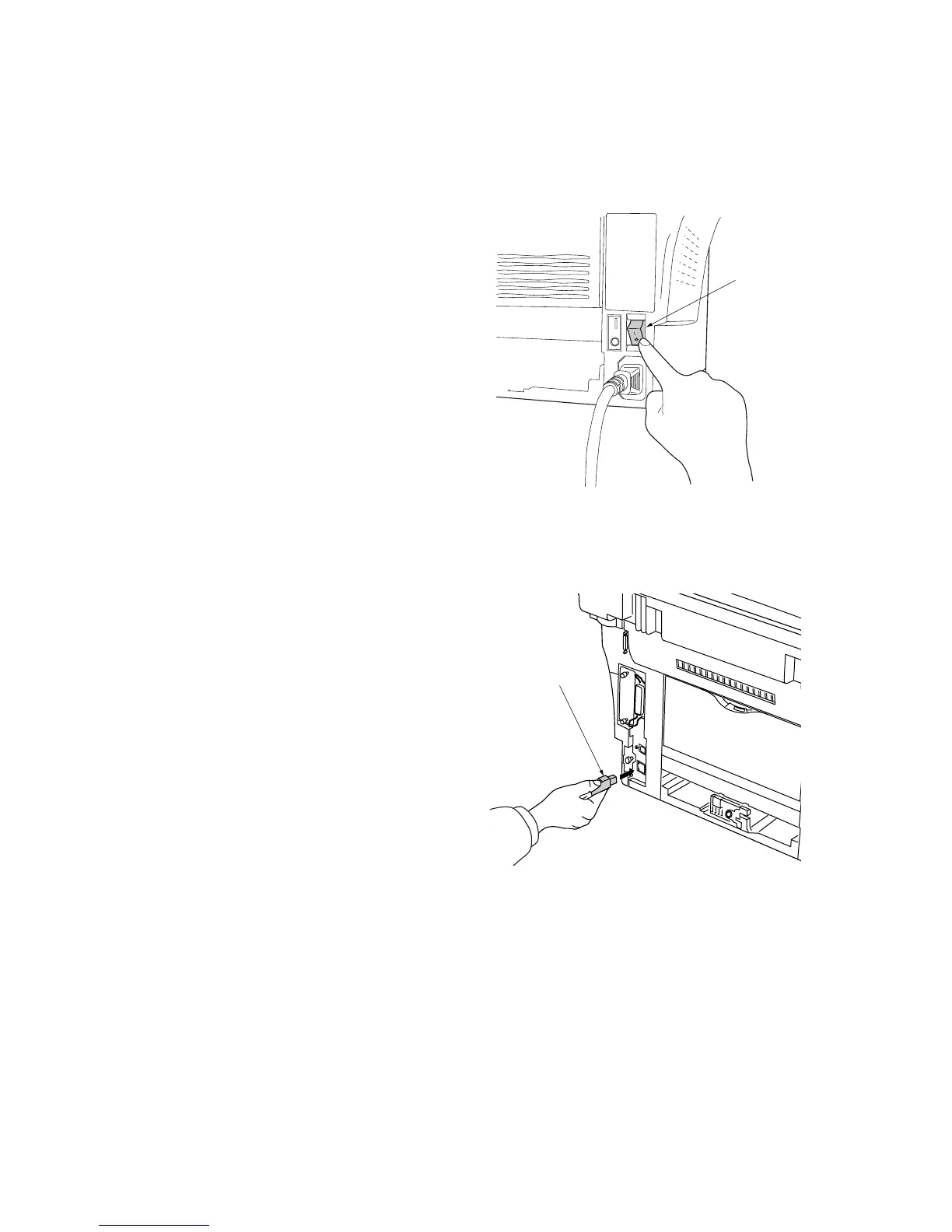

1. Turn the power switch located on the rear side of
the machine off (O), and remove the power cord
from the outlet.
2. Connect the network cable to the network
connector at the rear side of the machine.
3. Connect the other end of the network cable to
network device (hub).
4. Make network settings.
Figure 1-3-35
Figure 1-3-36
Power switch
Network cable
To Next Page
