2GM
1-6-51

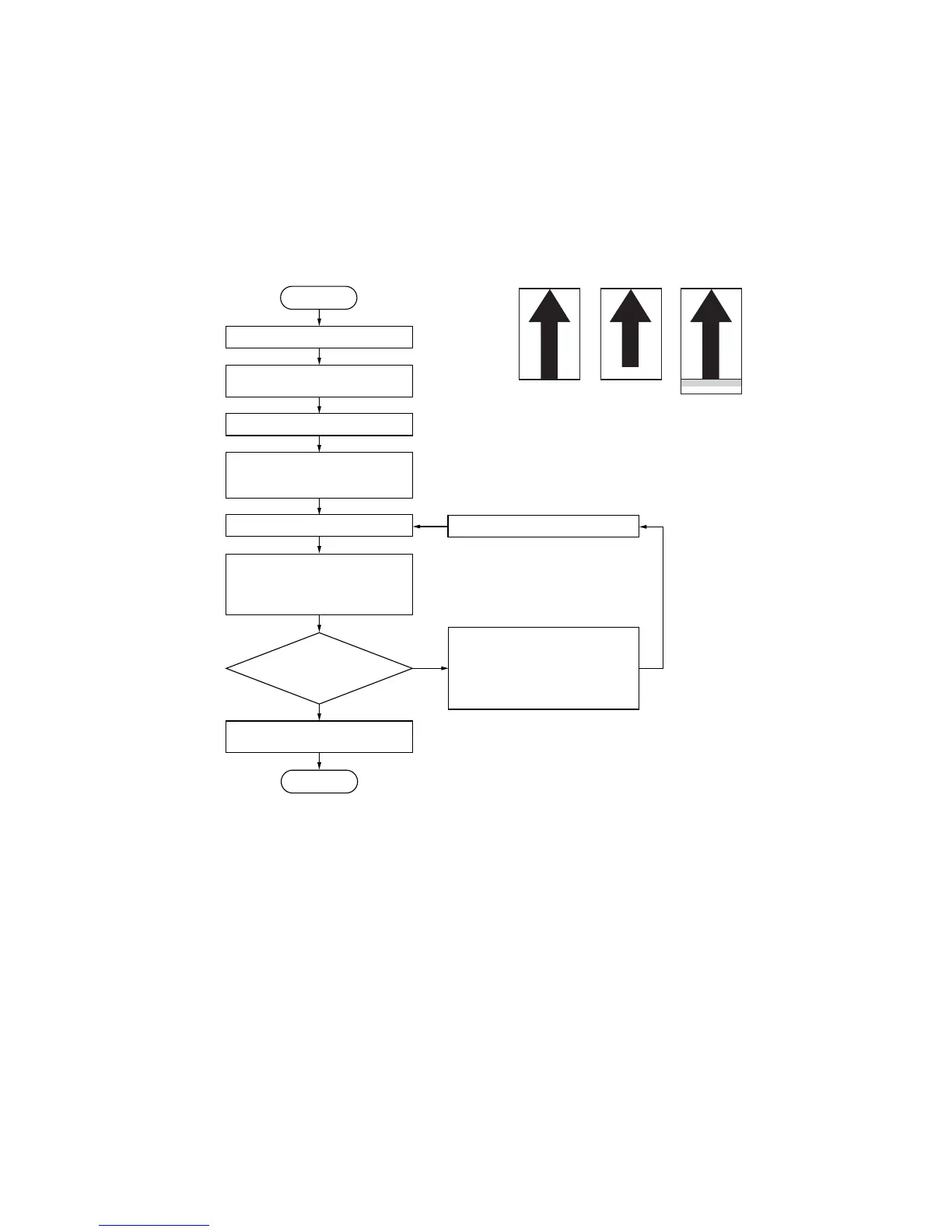

Figure 1-6-62
Enter maintenance mode.
Press the enter key.
Enter 071 using
up/down cursor keys.
Yes
No
Start
End
Press the system menu/counter key.
For copy example 1, decrease the
value using the left cursor key.
For copy example 2, increase the
value using the right cursor key.
Press the system menu/counter key.
Press the back key
to exit maintenance mode..
Place an original on the DP
and make a test copy.
(Printing cannot be stopped until the
preset number of sheets is printed.)
Is the image correct?
Setting range: –42 to +32
Initial setting: 0
Changing the value by 1 moves
the copy image by 0.293 mm.
Press the enter key.
The new setting is stored.
Select Trail Edge Adj.
(DP trailing edge registration)
using up/down cursor keys.
Original Copy
example 1
Copy
example 2
(11) Adjusting the DP trailing edge registration
Perform the following adjustment if the original scanning end position is not correct when the DP is used.
Caution:
If the copy image looks like copy example 2, clean the DP original scanning section.
Procedure
To Next Page
