2GM
1-6-10
(2) Removing the main PWB
1. Remove the right cover (see page 1-6-4).
2. Remove the connector.
3. Remove the screw and then remove the speaker.

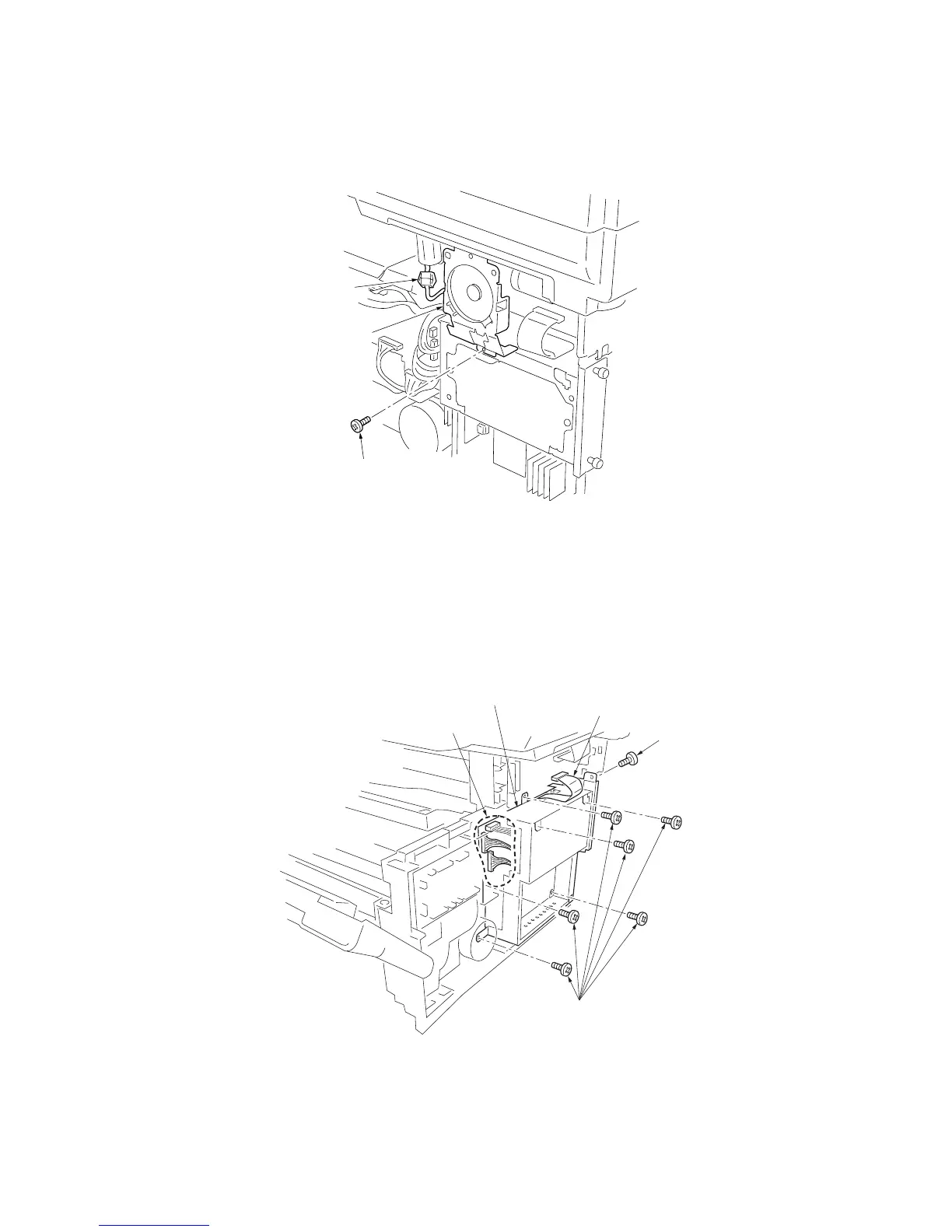

Figure 1-6-13 Removing the main controller shield (with main PWB)
Connectors
Main controller shield
(with main PWB)
Flexible flat cable
Screw
Screws
4. Remove three connectors.
5. Remove the flexible flat cable.
6. Remove seven screws and then remove the main controller shield (with main PWB).
Figure 1-6-12 Removing the speaker
Screw
Speaker
Connector
To Next Page
