2GM
1-6-27
1-6-10 Removing the scanner unit
1.
Remove the right and left cover (see page 1-
6-4).
2.
Remove the speaker (see page 1-6-10).
3.
Remove five connectors and two flexible flat
cables from the scanner PWB.
4.
Remove five screws and then remove the
scanner PWB.
Screws
Screws
Screw
Scanner PWB
Connectors
Scanner PWB
Flexible flat cables

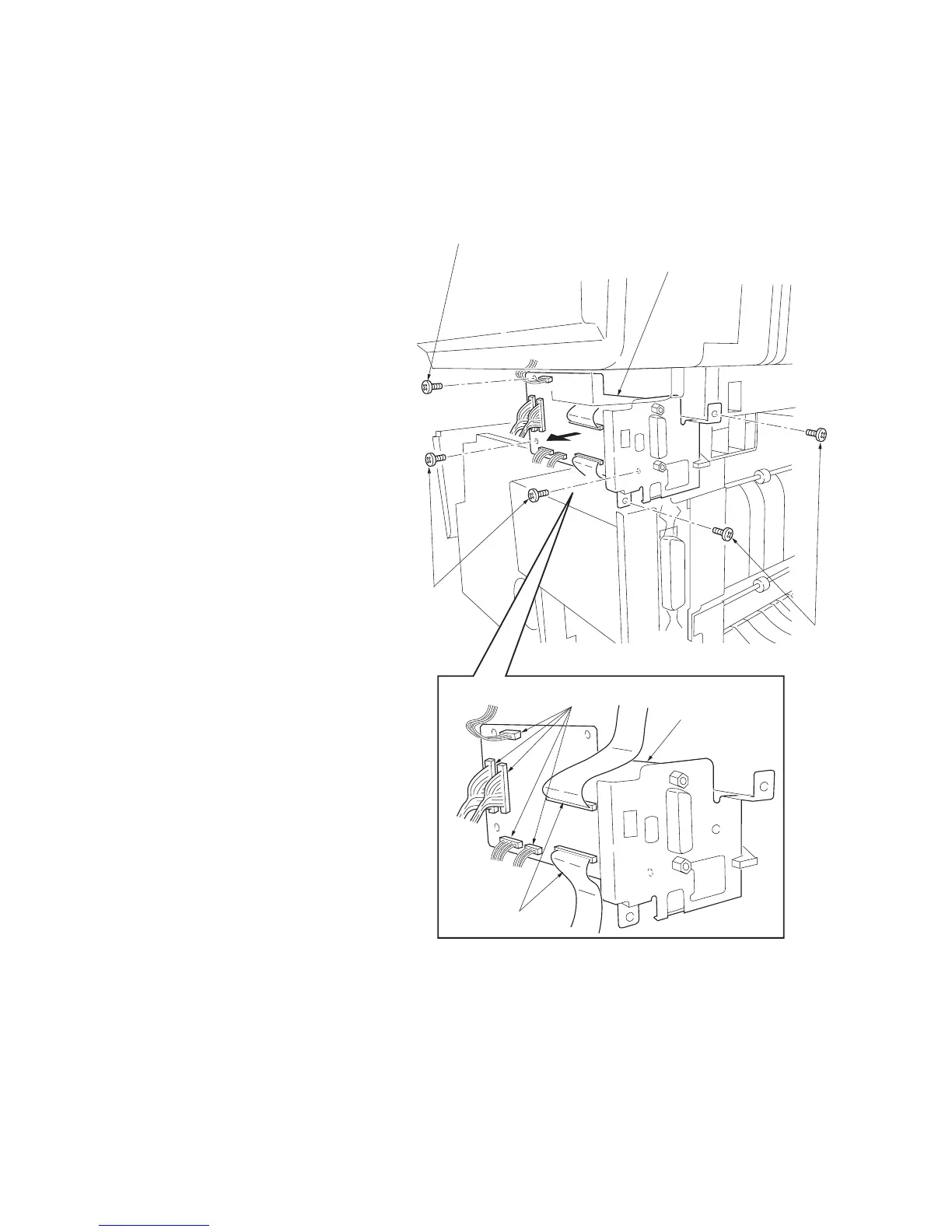

Figure 1-6-30 Remo
ving the scanner PWB
119
