2GM
1-6-33
3. Remove two screws and then remove two grounding plates.
4. Remove the stopper ring and then detach the scanner shaft.
* Detach the shaft taking care to tilt it as little as possible.

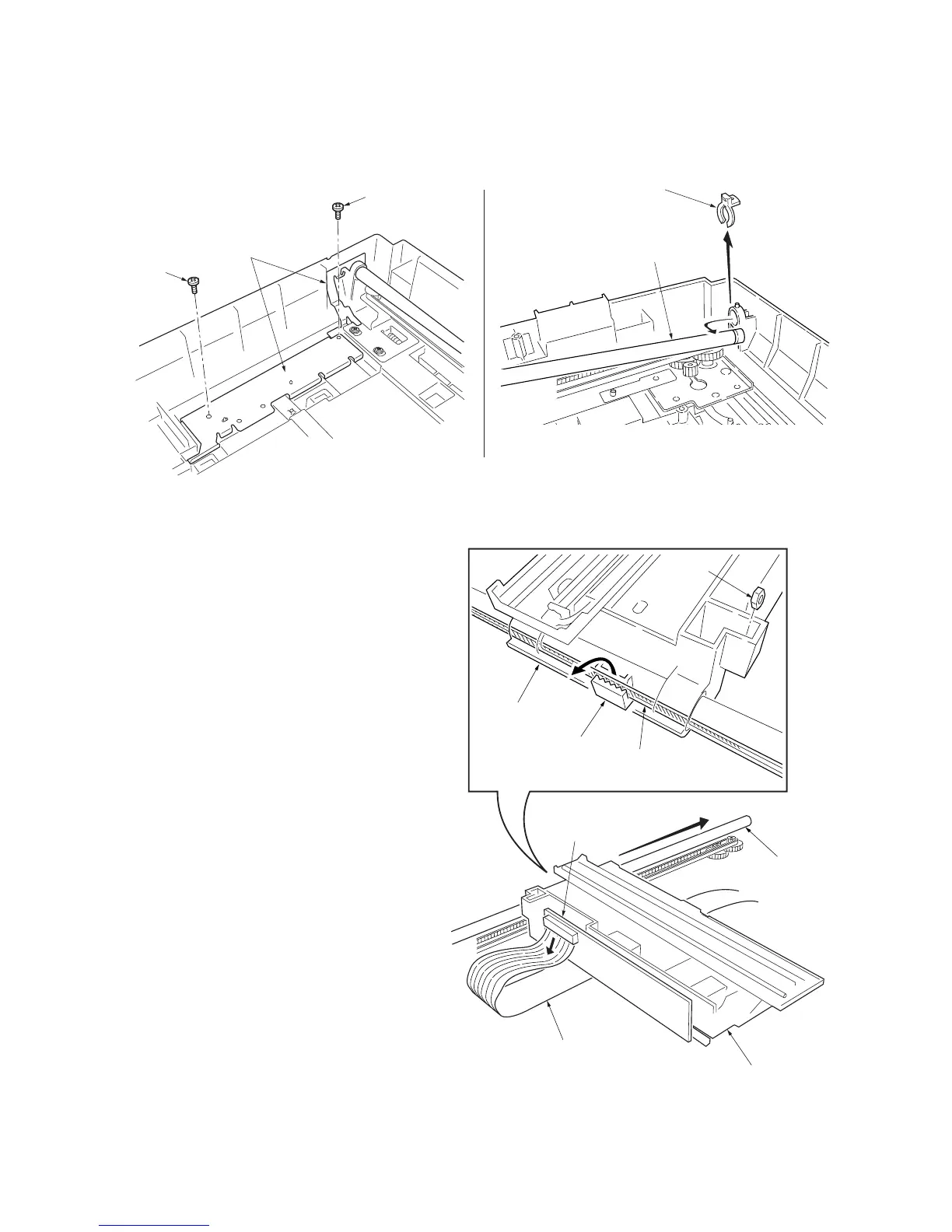

Figure 1-6-38 Detaching the scanner shaft
5. Remove the flexible flat cable from the ISU
PWB’s connector.
6. Remove the scanner belt from the belt hook
of scanner unit.
7. Remove the ISU unit from the scanner shaft.
* Remove the ISU unit taking care not to lose
the M4 nut located in the ISU unit.
Figure 1-6-39 Removing the ISU unit
Flexible flat cable
ISU PWB
M4 nut
ISU unit
Scanner belt
Scanner shaft
Scanner unit
Belt hook
Stopper ring
Grounding plates
Screw
Screw
Scanner shaft
To Next Page
