3. Connect the modular cord to the line jack.
120 V specifications: Connect the modular cord
with the attached ferrite core to the machine.
Line jack

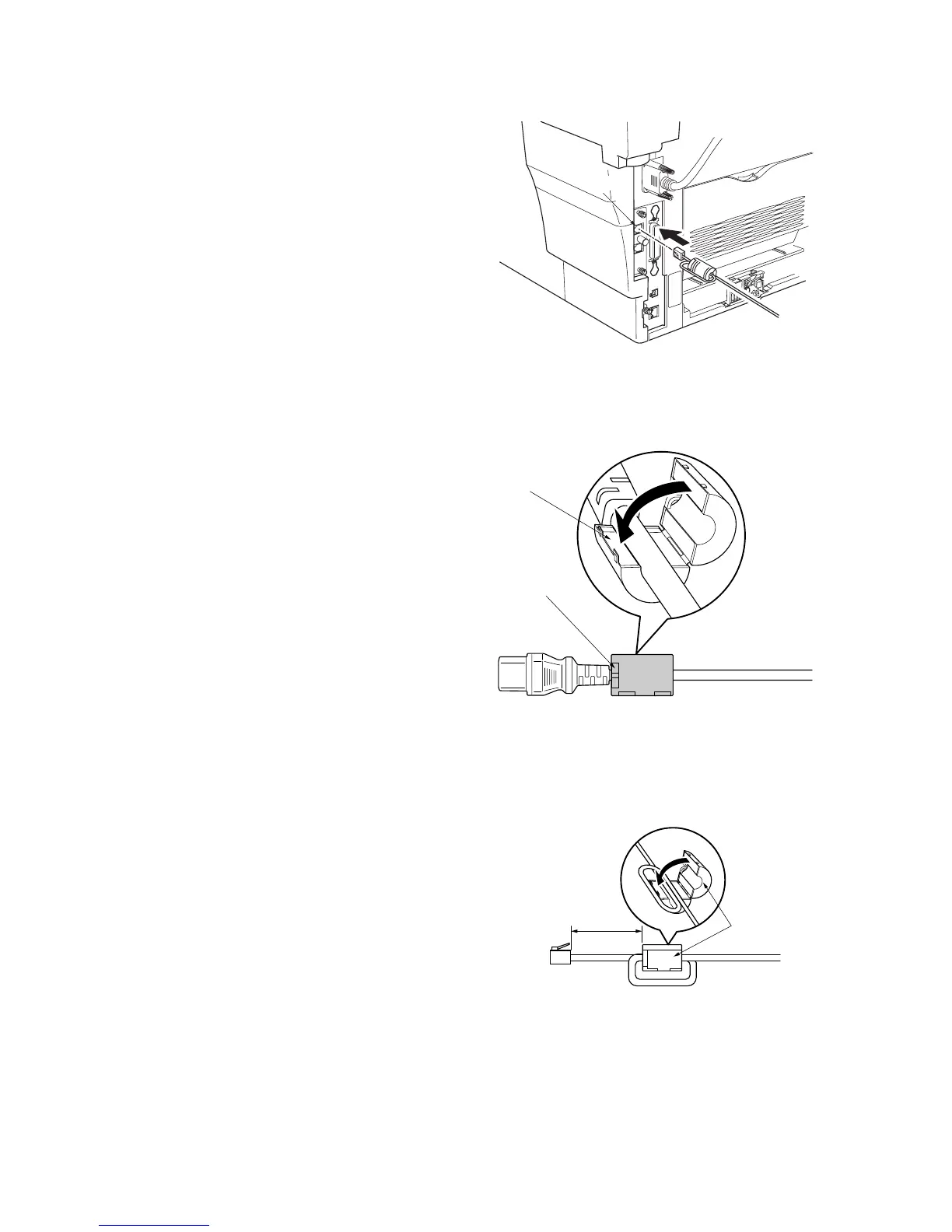

Figure 1-3-51
20 mm
Ferrite
core
Figure 1-3-52
220-240 V specifications only
4. Attach the core to the power cord of the machine
so that the stopper section is located near the
power plug as shown in the illustration.
Figure 1-3-53
5. Plug the power cord into the machine. Turn the
machine on.
NOTE (120 V specifications only)
When connecting a separate phone to the
machine, attach the ferrite core to the modular
cord before connection. Loop the modular cord
through the ferrite core.
Core
Stopper section
