Mounting vacon • 20
Service support: find your nearest Vacon service center at www.vacon.com
3
3. MOUNTING
VACON
®
100 X is the ideal solution for a decentralised installation. It is conceived to be mounted on
a wall or directly on the motor, saving space and reducing the cabling complexity. In both of the cas-
es, it must be ensured that the mounting plane is even.
3.1 Dimensions

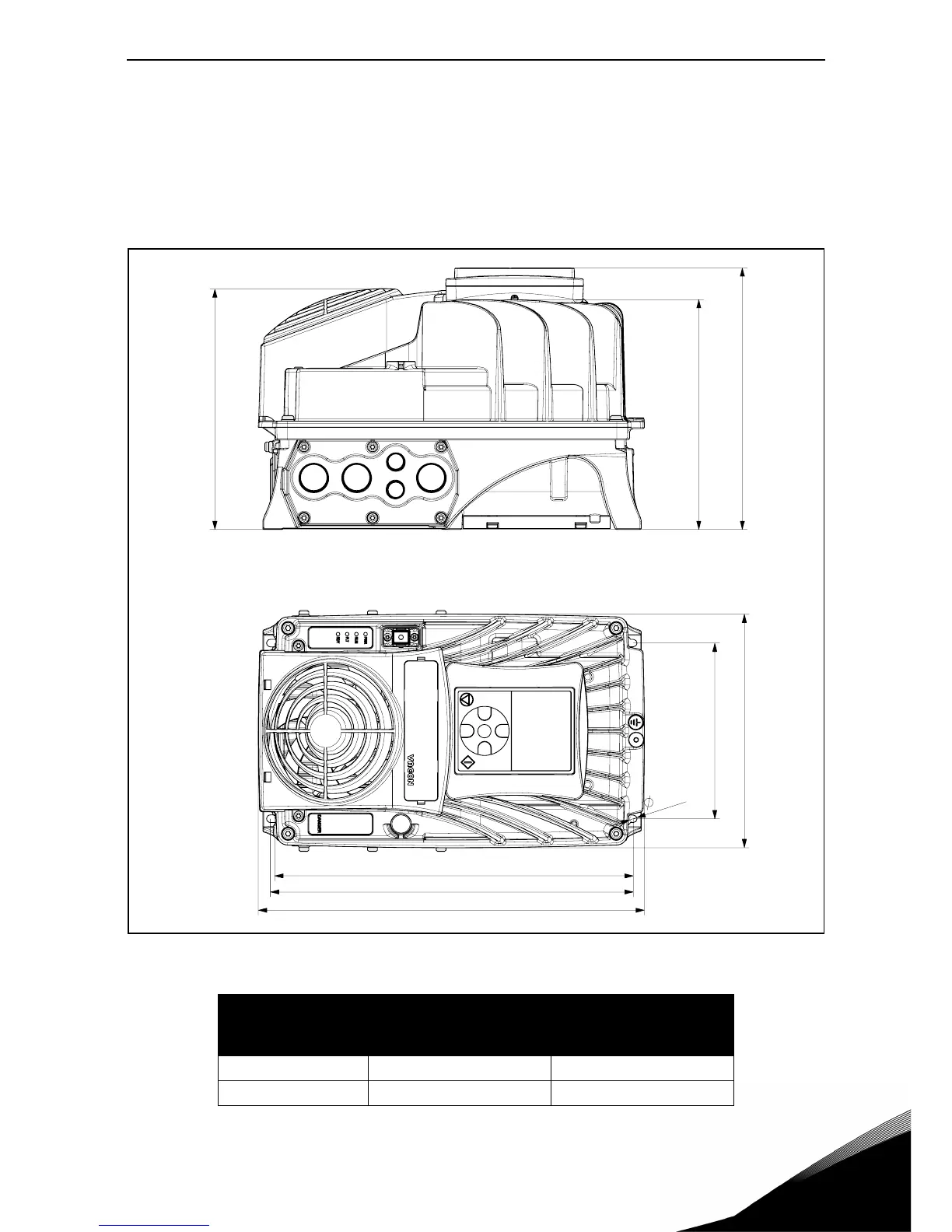

Figure 11. VACON
®
100 X drive dimensions, MM4.
Frame
Dimensions W x H x D
[mm] [in]
MM4 190.7 x 315.3 x 196.4 7.51 x 12.41 x 7.73
MM4 +HMGR 190.7 x 315.3 x 213.8 7.51 x 12.41 x 8.42
315,3
190,7
187,8
213,8
293,0
296,5
5
,
9
143,5
196,4
