Vacon NXP series User Manual

General information vacon • 11
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
1
Once you have set the desired code, press the Enter button once to confirm the change.

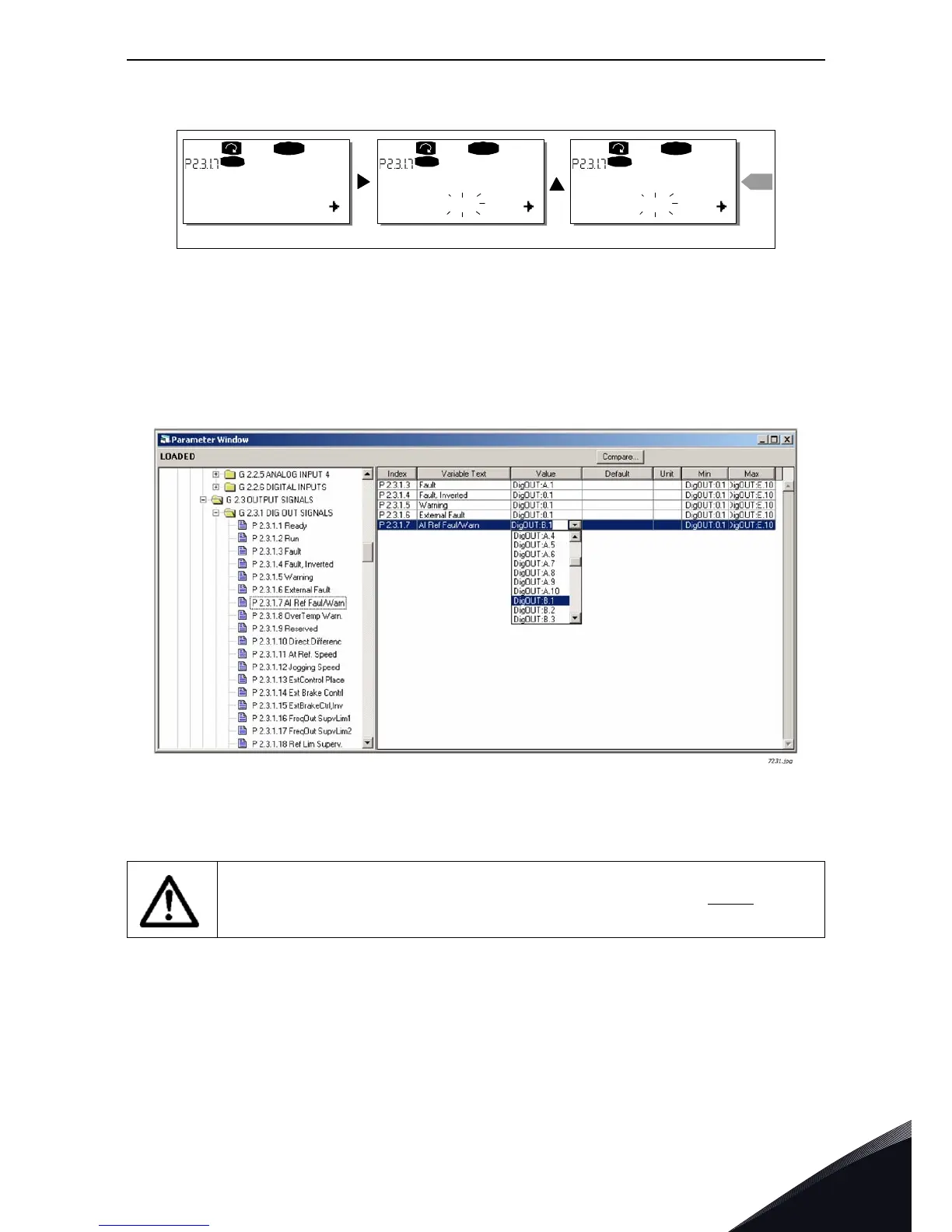

1.8 Defining a terminal for a certain function with NCDrive
programming tool
If you use the NCDrive Programming Tool for parametrizing you will have to establish the
connection between the function and input/output in the same way as with the control panel. Just
pick the address code from the drop-down menu in the Value column (see Figure 8 below).
Figure 8. Screenshot of NCDrive programming tool; Entering the address code
NOTE: The inputs, unlike the outputs, cannot be changed in RUN state.
Be ABSOLUTELY sure not to connect two functions to one and same output
in order
to avoid function overruns and to ensure flawless operation.
READ Y
I/Oterm
DigOUT:0.0
READ Y
I/Oterm
DigOUT :0.0
READ Y
I/O term
DigOUT :A.1
ent er
AIRefFaul/Warn AIRefFaul/Warn AIRefFaul/Warn
7230.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
