vacon • 18 Descriptions of VACON® option boards
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3.1.1 OPTA1

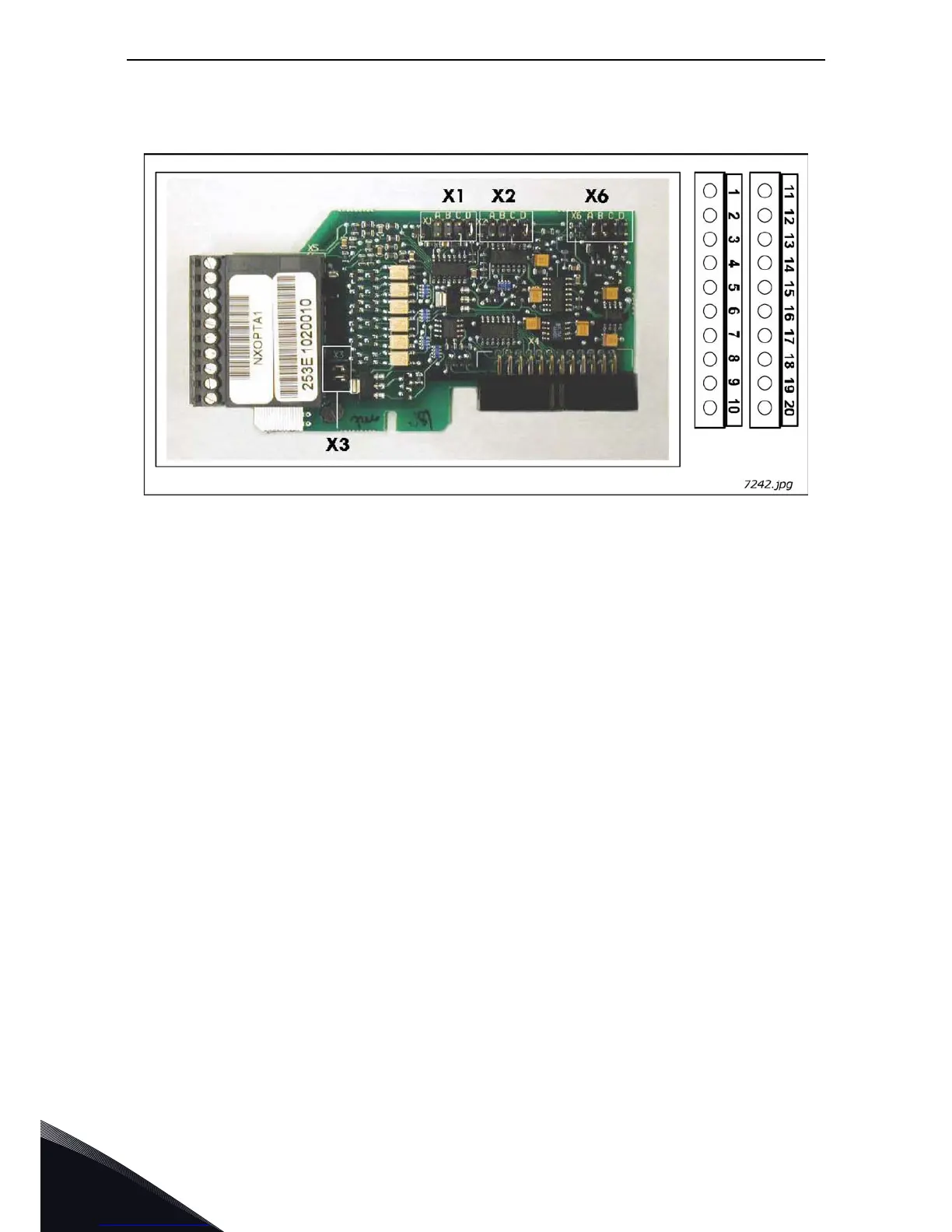

Figure 11. VACON
®
OPTA1 option board
Description: Standard I/O board with digital inputs/outputs and analogue inputs/outputs
Allowed slots: A
Type ID: 16689
Terminals: Two terminal blocks (coded = mounting of blocks in wrong order prevented,
terminals #1 and #12);
Screw terminals (M2.6)
Jumpers: 4; X1, X2, X3 and X6 (See Figure 12)
Board parameters: Board parameters:Yes (See page 21)
