Descriptions of VACON® option boards vacon • 43
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
I/O terminals on OPTA9
See page 19.
Jumper selections
See page 20.
OPTA9 parameters
See page 21.

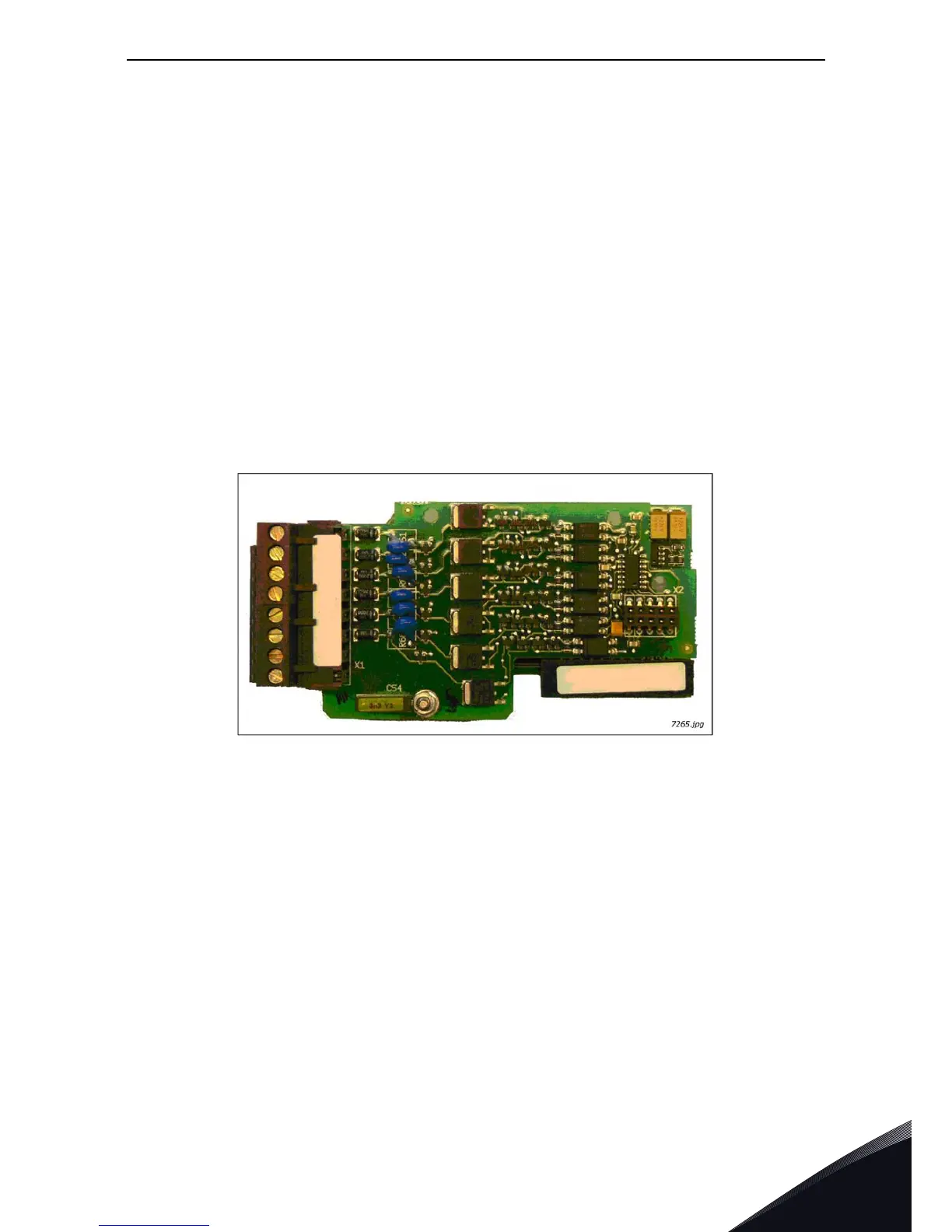

3.1.9 OPTAL
Description: Dual I/O expander board with six 42…240 VAC digital inputs, 2 analog inputs,
two analog outputs, one digital output and 15 and 24 V out.
Allowed slots: A
Type ID: 16716
Terminals:
Two terminal blocks; Screw terminals (M2.6, 1.5 mm
2
wire terminals 1 – 10;
M3, 2.5 mm
2
wire terminals 11-18); No coding
Jumpers: None
Board parameters: None
