Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 33
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
3.1.6 OPTA7
Description:
Duplicate encoder board for VACON
®
NXP. Encoder input board with
programmable control voltage for the encoder.
The OPTA7 board is designed for HTL (High voltage Transistor Logic) type
encoders (voltage output type push-pull HTL, open collector output type HTL)
which provide input signal levels dependent on the supply voltage of the
encoder. The encoder inputs A, B and Z are galvanically isolated. The OPTA7
board includes, too, the qualifier inputs ENC1Q and ENC2Q meant to trace
positions in positioning applications.
The board can be used as both Master and Slave device. The encoder input
signal is repeated on the board and carried to the next device through the
digital output.
Allowed slots: C
Type ID: 16695
Terminals: Two terminal blocks; Screw terminals (M2.6); Coding in terminals #3 and
#14.
Jumpers: 4; X4, X5, X15 and X16 (see page 35)
Board parameters: Yes, see page 38.

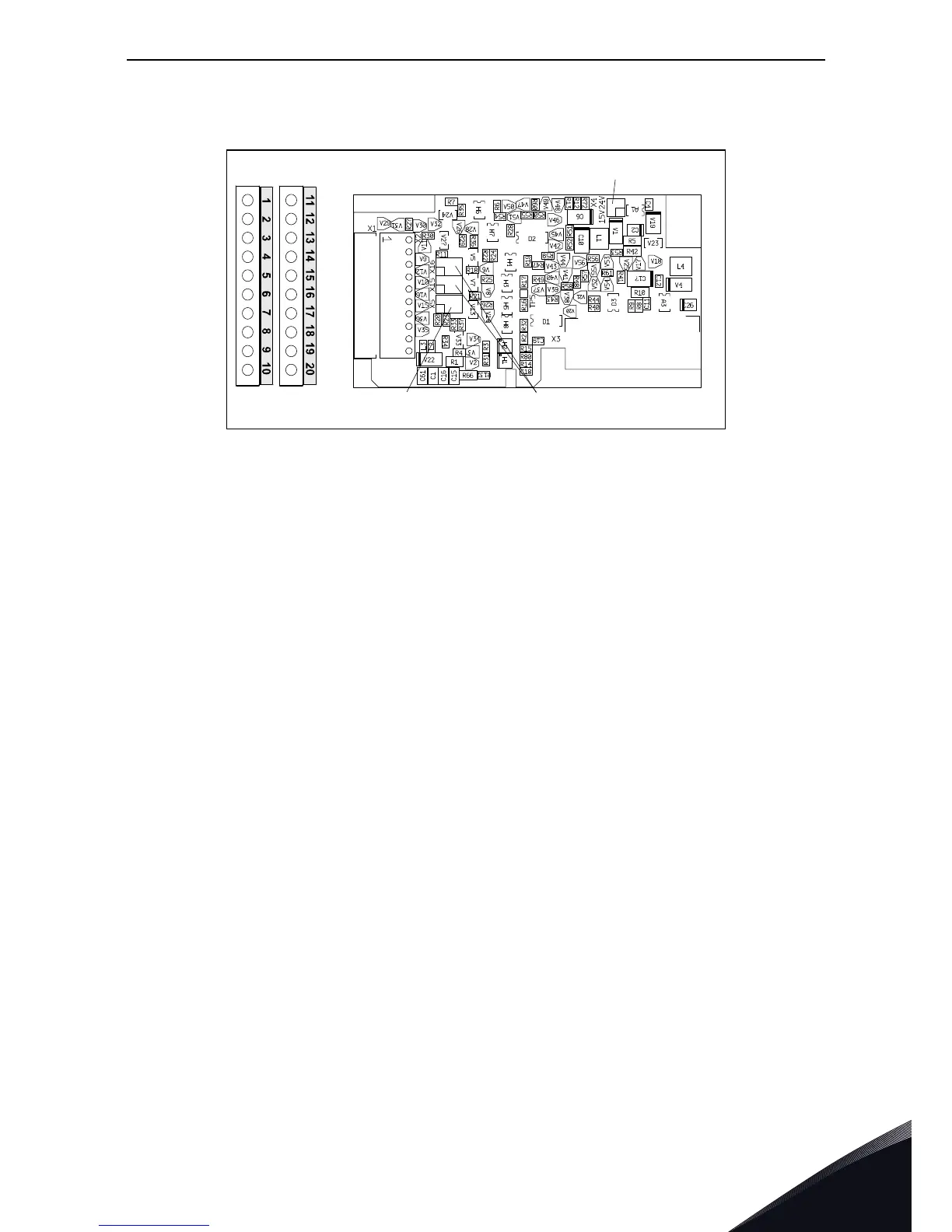

Jumper X4
Jumper X5 Jumpers X15 and X16
7258.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
