I/O terminals on OPTB4
NOTE: This expander board can be placed into four different slots on the control board. Therefore,
the 'X' given in the Parameter reference must be replaced by the slot letter (B, C, D, or E)
depending on the slot which the expander board is plugged into. See Chapter1.7.

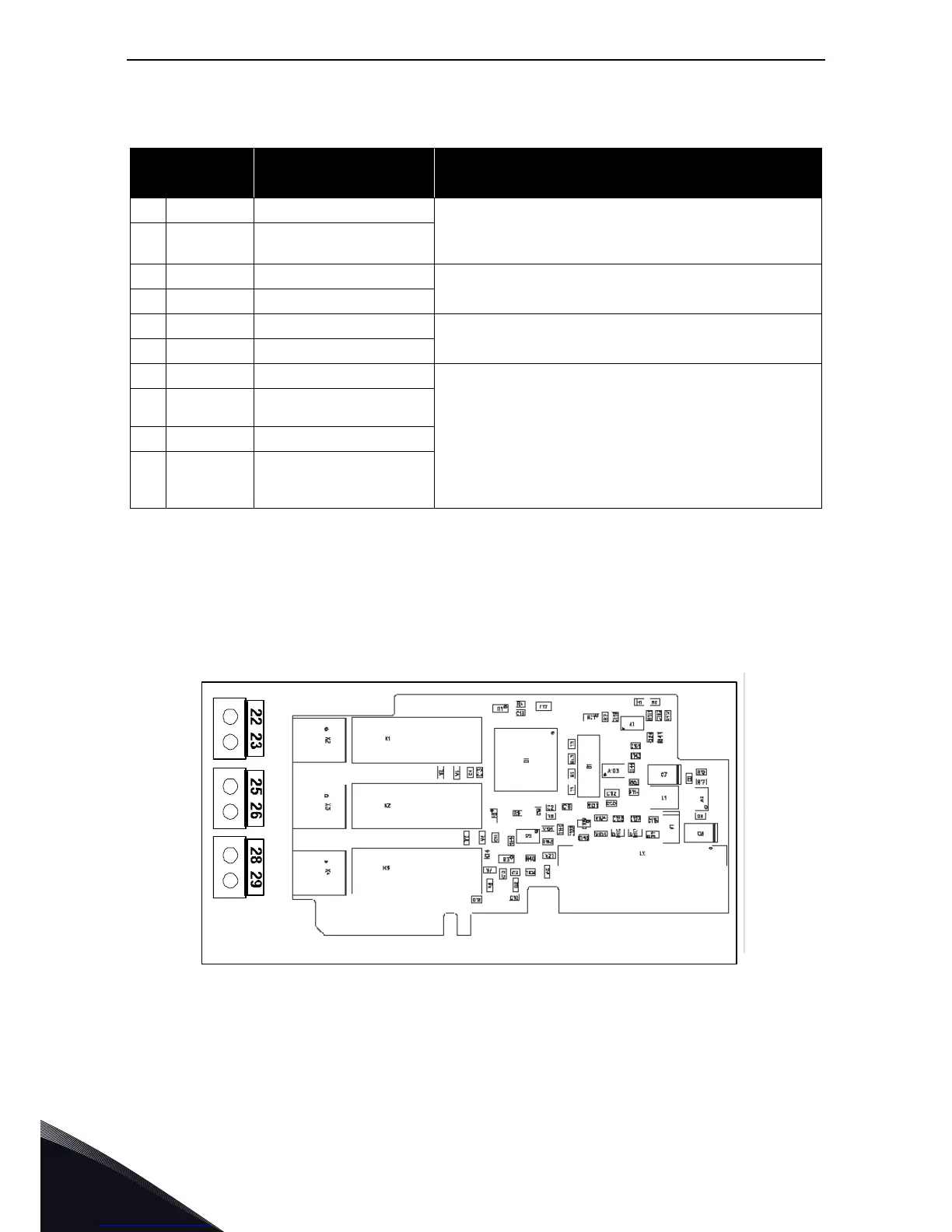

3.2.4 OPTB5
Table 26. OPTB4 I/O terminals
Terminal
Parameter reference
Keypad/NCDrive
Technical information
1 AI1+ AnIN:X.1 0(4)…20mA; R
i
=250Ω; galvanically isolated
Resolution 10 bits/0.1%; Accuracy ±1% of the full dis-
play
2
AI1–
3 AO1+ AnOUT:X.1
0(4)…20mA; R
L
<500Ω; Resolution 10 bits/0.1%;
Accuracy ≤ ±2% (galvanically isolated)
4 AO1–
5 AO2+ AnOUT:X.2
0(4)…20mA; R
L
<500Ω; Resolution 10 bits/0.1%;
Accuracy ≤ ±2% (galvanically isolated)
6 AO2–
7 GND 24V (±15%); Max. load 250mA (total load from
EXT+24V outputs), max. 150mA from one board. See
Figure 3 on page 6.
8
GND
9 GND 24V (±15%), in special applications where PLC type
functions are included in the control module, this
input can be used as external auxiliary power supply
for control boards as well as for I/O boards.
10
+24V
Description: I/O expander board with three relay outputs.
Allowed slots: B, C, D, E
Type ID: 16949
Terminals: Three terminal blocks; Screw terminals (M3); No coding
Jumpers: None
Board parameters: None
