Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 79
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
3.3.4 OPTD6

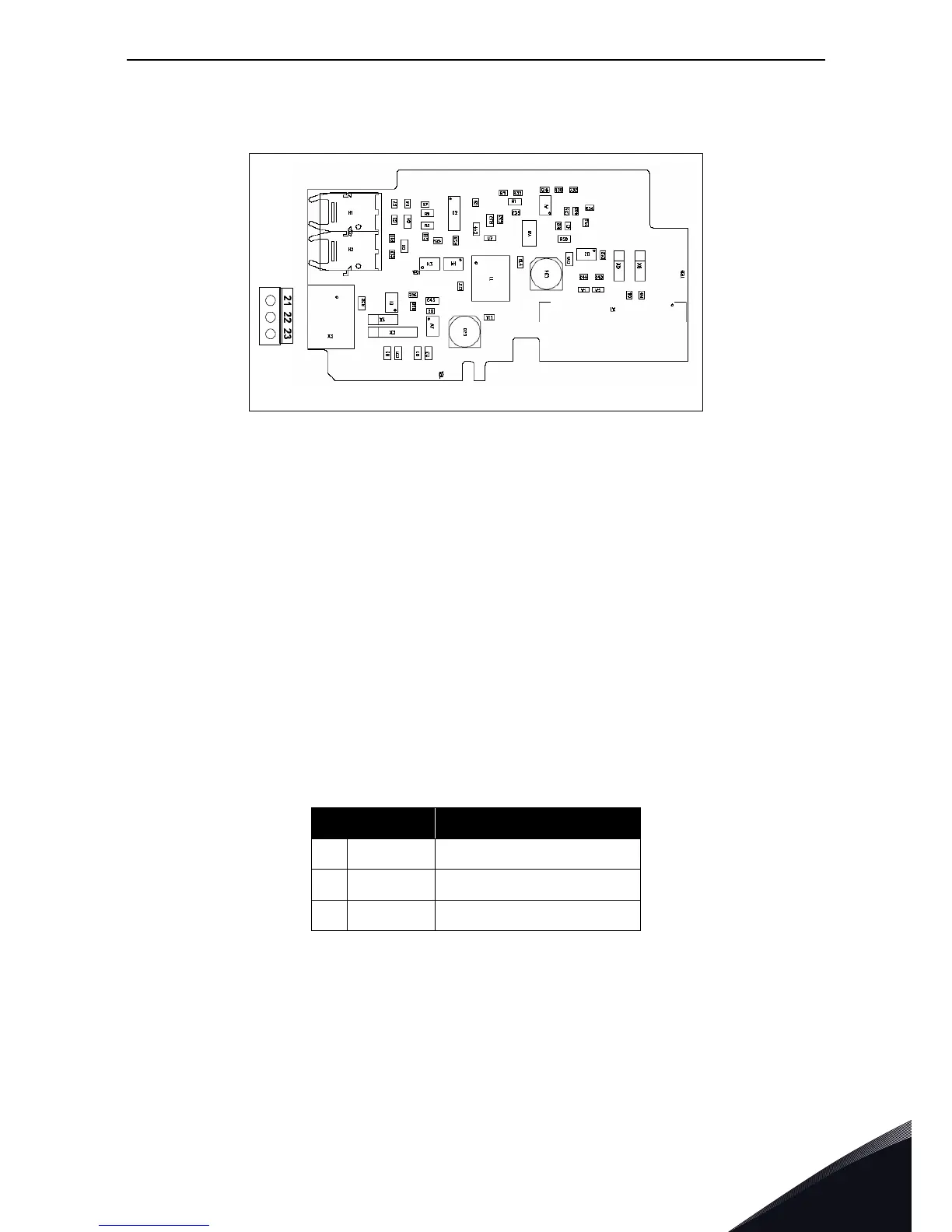

I/O terminals on OPTD6
Jumper selections
There are two jumper blocks on the OPTD6 board. The factory defaults and other available jumper
selections are presented below:
Note! This figure presents the layout of D6 board version F or later. See Chapter
Jumper selections below.
Description:
Monitor Bus adapter board for VACON
®
NXP. Interface to fast monitor bus
used by the NCDrive PC tool.
Allowed slots: B, D, E.
Type ID: 17462
Terminals: One screw terminal block (M3)
Jumpers: 2; X3, X4.
Board parameters: None
Table 45. OPTD6 I/O terminals
Terminal Technical information
21 CAN_L Monitor Bus negative data
22 CAN_H Monitor Bus positive data
23 CAN_GND Monitor Bus ground
7294.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
