Descriptions of VACON® option boards vacon • 77
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3

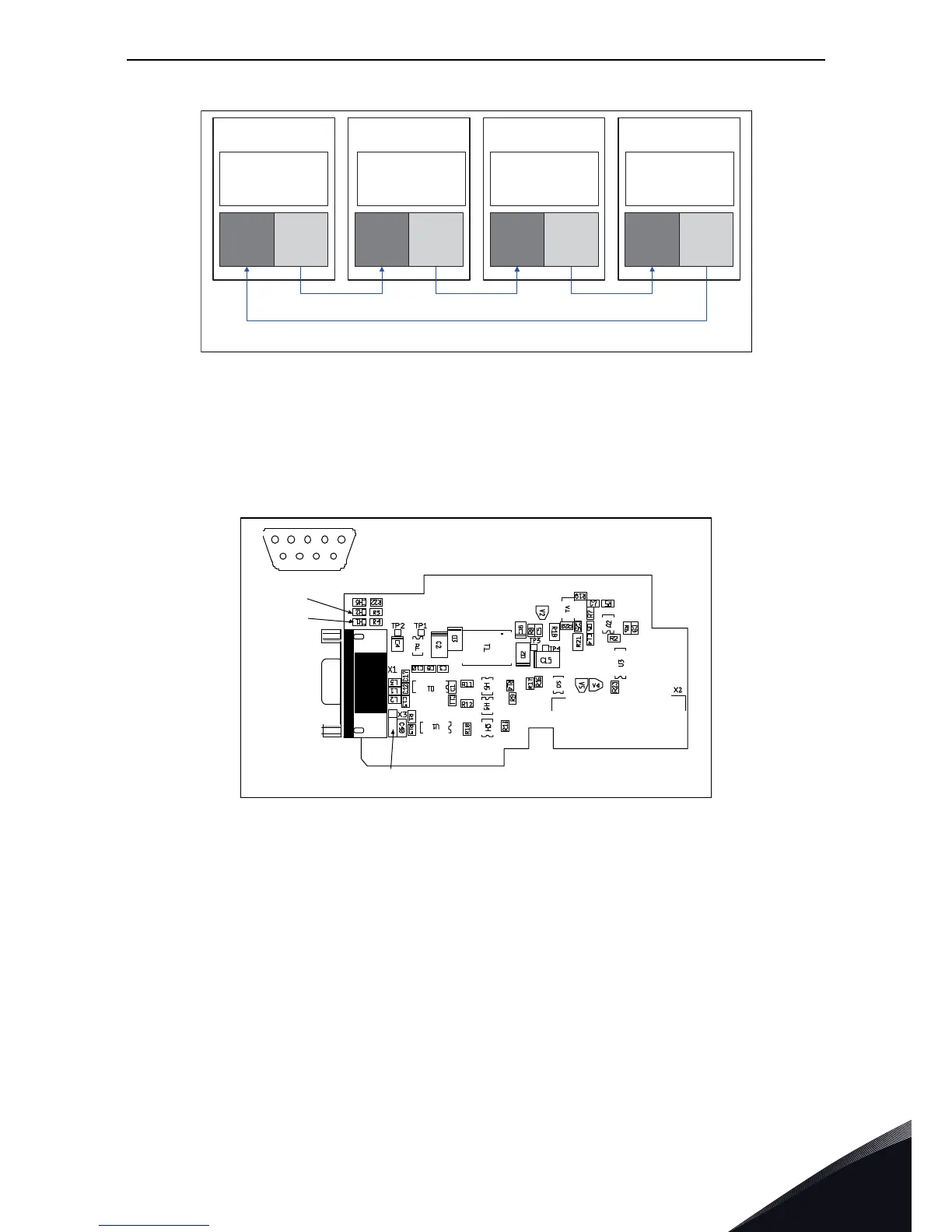

Figure 29. Connection example of AC drives with OPTD2
3.3.3 OPTD3
Description: RS-232 adapter board. Galvanically decoupled. Used mainly for application
engineering to connect another keypad.
Allowed slots: D, E.
Type ID: 17459
Terminals: 9-pin female sub-D-connector
Jumpers: 1; X3 (see page 78)
Board parameters: None
OPTD2
Jumper X5 : TX2
OPTD2
Jumper X5 : TX2
OPTD2
Jumper X5 : TX2
OPTD2
Jumper X5 : TX1
H1
(RX)
H2
(TX)
Master
SBInUse = Yes
SBID = 1
SBNextID = 2
SBLastID = 4
Follower
SBInUse = Yes
SBID = 2
SBNextID = 3
Follower
SBInUse = Yes
SBID = 3
SBNextID = 4
Follower
SBInUse = Yes
SBID = 4
SBNextID = 1
H1
(RX)
H1
(RX)
H1
(RX)
H2
(TX)
H2
(TX)
H2
(TX)
7291A_uk
LED 1
LED 2
Jum pe r bl ock X3
54321
9876
7292.emf
