3.2.6 OPTB9

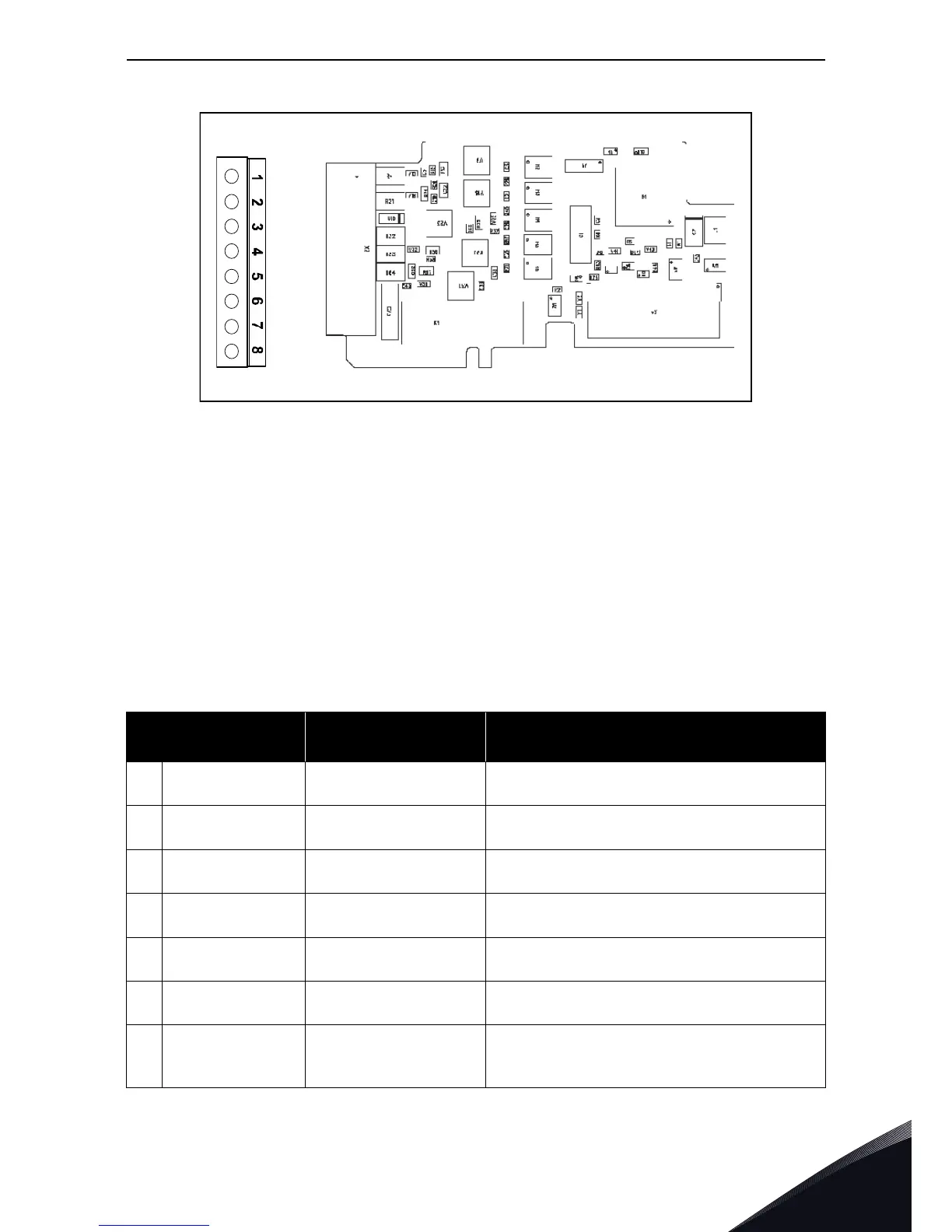

I/O terminals on OPTB9
NOTE: This expander board can be placed into four different slots on the control board. Therefore,
the 'X' given in the Parameter reference must be replaced by the slot letter (B, C, D, or E)
Description: I/O expander board with five 42…240 VAC digital inputs and one normal relay
output.
Allowed slots: B, C, D, E
Type ID: 16953
Terminals: One terminal block; Screw terminals (M2.6); No coding
Jumpers: None
Board parameters: None
Table 30. OPTB9 I/O terminals
Terminal
Parameter reference
Keypad/NCDrive
Technical information
1
ACIN1 DigIN:X.1
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
2
ACIN2 DigIN:X.2
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
3
ACIN3 DigIN:X.3
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
4
ACIN4 DigIN:X.4
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
5
ACIN5 DigIN:X.5
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
6
COMA
Digital input, 42…240 VAC (threshold 35V)
Control voltage: "0"<33V, "1">35V
7
8
RO1/common
RO1/normal open
DigOUT:X.1 Switching capacity
24VDC/8A
250VAC/8A
125VDC/0.4A
7281.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
