Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 49
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
3.1.11 OPTAN
Description:
Standard I/O board for VACON
®
NXP with 6 galvanically isolated digital inputs
and two analogue inputs/outputs. The Analogue channels are programma-
ble:
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
Allowed slots: A
Type ID: 16718
Terminals: Two terminal blocks (coded = mounting of blocks in wrong order prevented,
terminals #1 and #12);
Jumpers: J1, J2, J3, J4
Board parameters: Yes (see page 51)

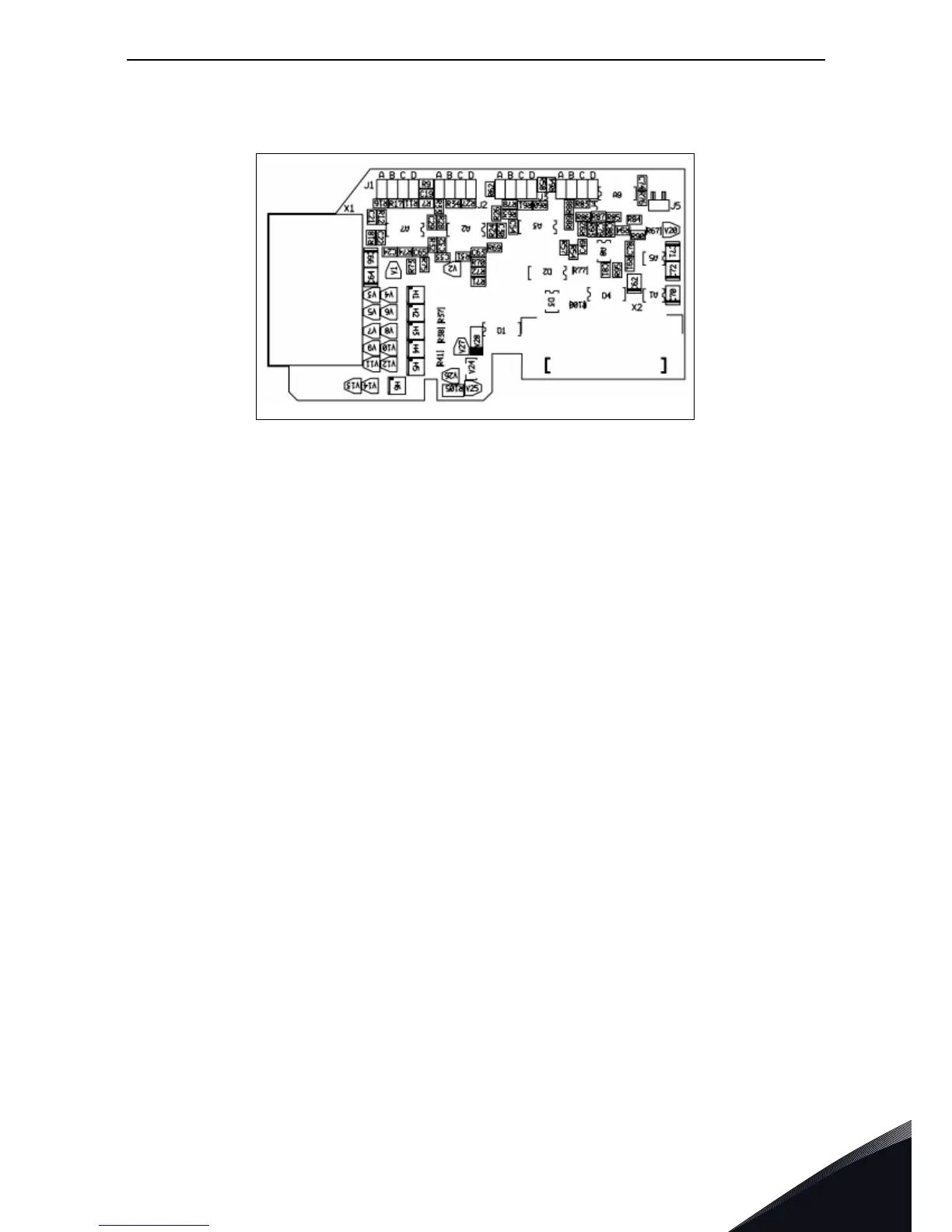

7271.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
