Vacon NXP series User Manual

1
vacon • 12 General information
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
1.9 Option board related parameters
Some of the input and output functions of certain option boards are controlled with associated
parameters. The parameters are used to set the signal ranges for analogue inputs and outputs as
well as values for different encoder functions.
The board-related parameters can be edited in the Expander Board Menu (M7) of the control
keypad.
Enter the following menu level (G#) with the Menu button right. At this level, you can browse through
slots A to E with the Browser buttons to see what expander boards are connected. On the lowermost
line of the display you also see the number of parameters associated with the board. Edit the
parameter value as shown below. For more information on the keypad operation, see VACON
®
NXS/
P User Manual. See Figure 9.

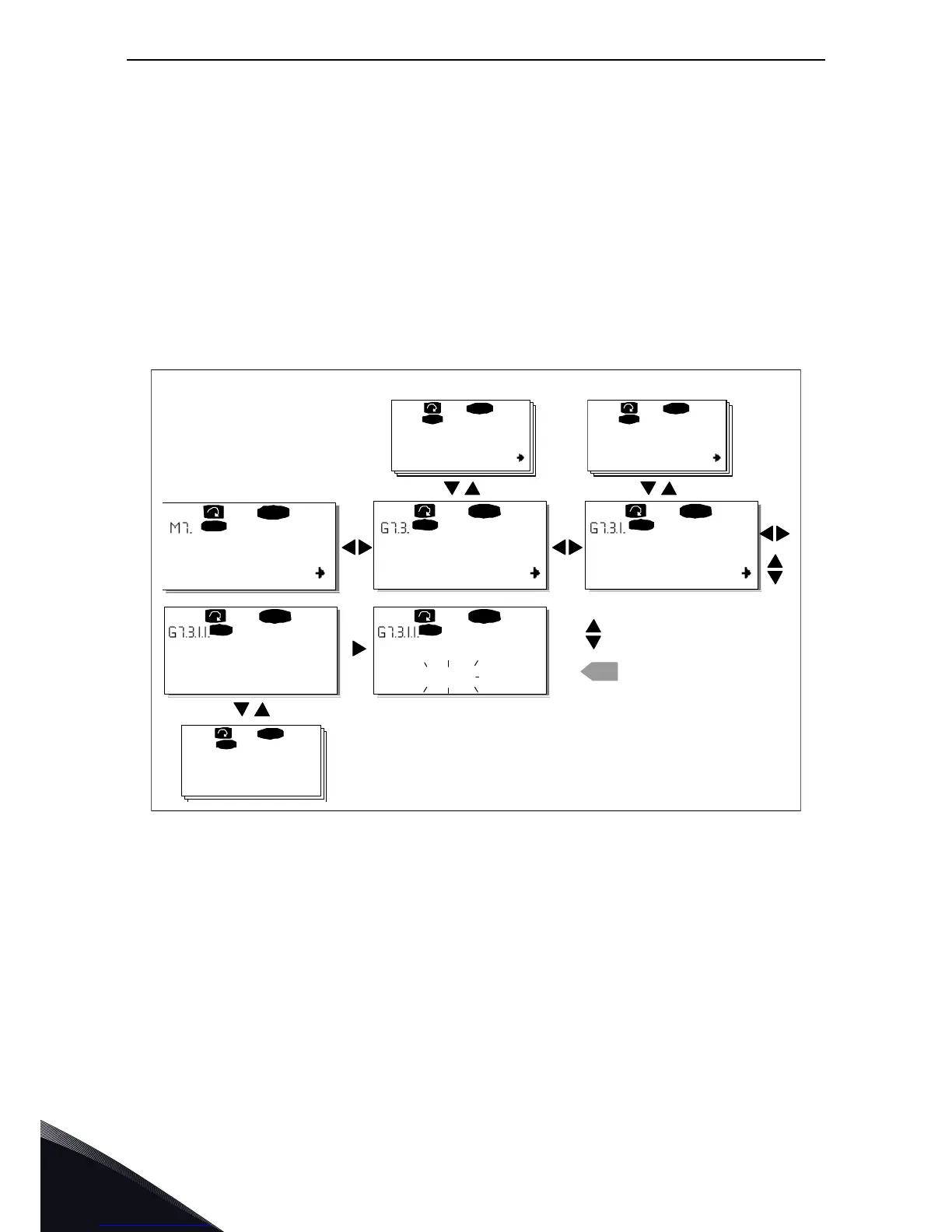

Figure 9. Board parameter value editing
NOTE: Fieldbus boards (OPTC_) also have fieldbus-related parameters. These boards are, however,
described in the separate fieldbus board manuals (see http://drives.danfoss.com/knowledge-
center/technical-documentation/).
G1
 G5
READY
I/Oter m
C:NXOPTC1
READY
I/Oter m
G1

G2
READY
I/Oter m
READY
I/Oterm
enter
P1

P4
D:NXOPTC2
READY
I/ O t e rm
G1

G2
READY
I/ Ot er m
V1

V2
READY
I/Oter m
READY
I/Oterm
Expander boards
Parameters
Slave address
126
CHANGE VALUE
CONFIRM CHANGE
Slave add ress
126
Baud rate
Auto
Monitor
7232.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
