Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 21
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
OPTA1 parameters
3.1.2 OPTA2
Table 6. OPTA1 board-related parameters
Number Parameter Min Max Default Note
1 AI1 mode 1 5 3
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
2 AI2 mode 1 5 1
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
3AO1 mode 141
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
Description:
Standard VACON
®

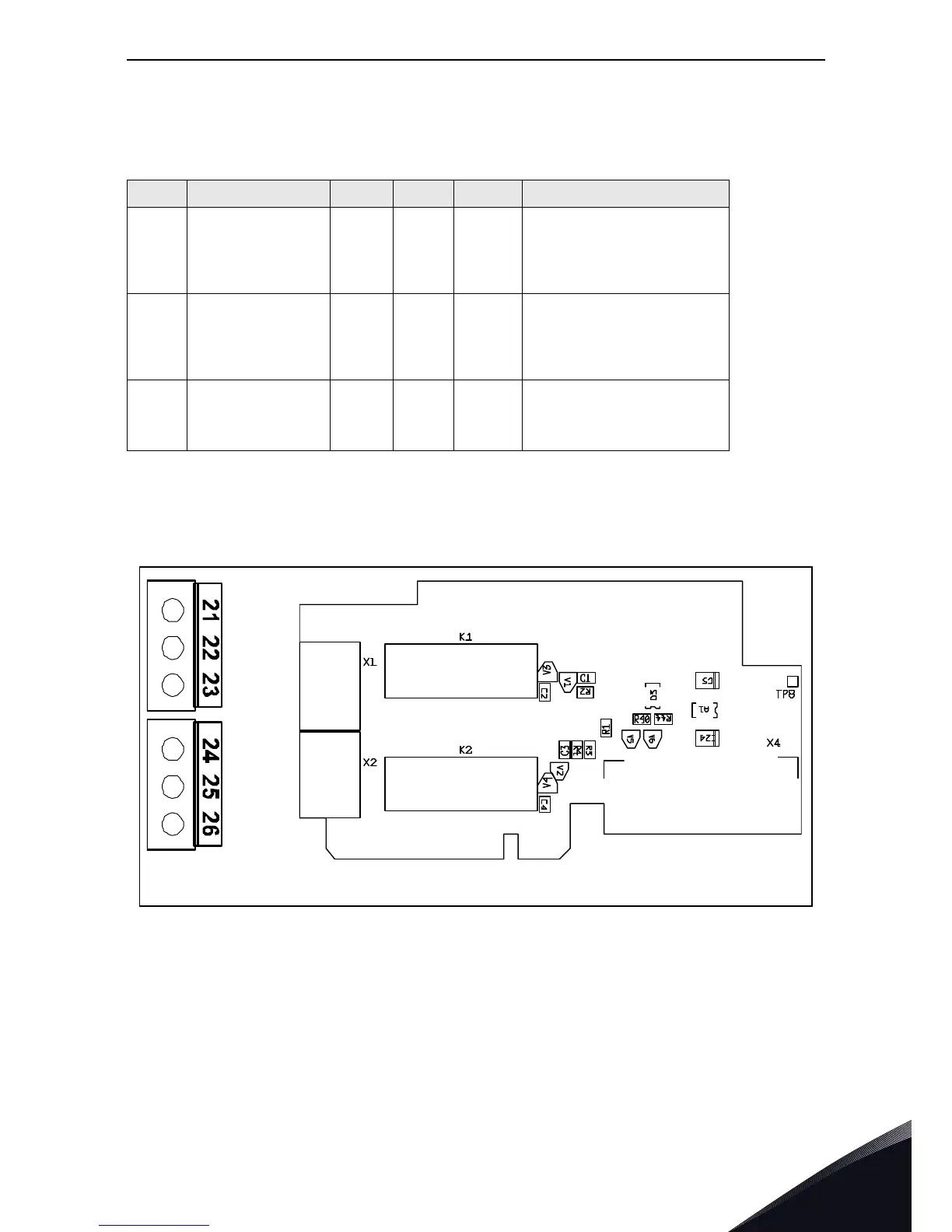

NX AC drive relay board with two relay outputs
Allowed slots: B
Type ID: 16690
Terminals: Two terminal blocks; Screw terminals (M3); No coding
Jumpers: None
Board parameters: None
7244.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
