vacon • 78 Descriptions of VACON® option boards
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

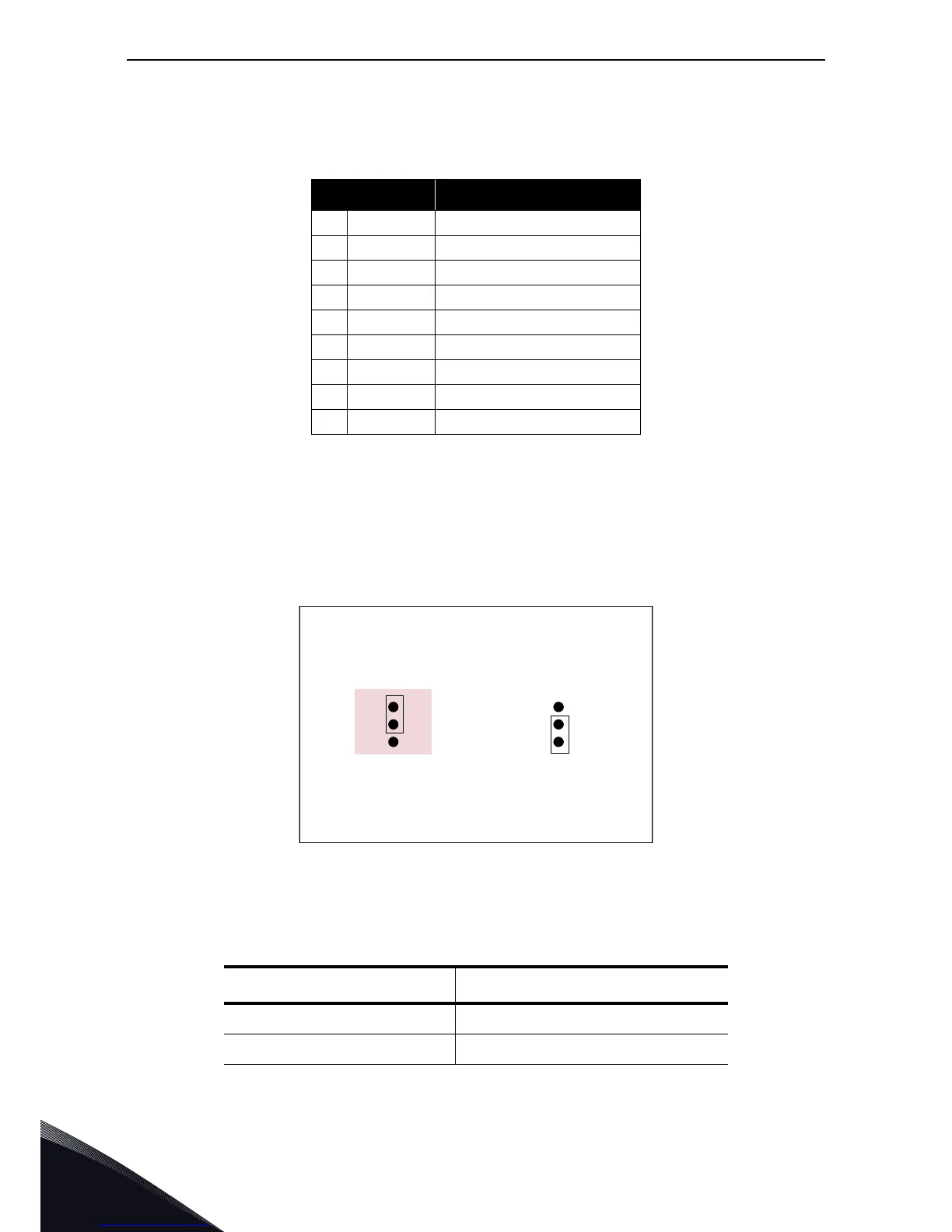

I/O terminals on OPTD3
NOTE:
If OPTCI Ethernet Option board is used for NC Tools connection, like NCLoad, the OPTD3 board
cannot be used.
Jumper selections
There is one jumper block on the OPTD3 board. The factory defaults and other available jumper
selections are presented below:
OPTD3 option board status LEDs
Table 43. OPTD3 I/O terminals
Terminal Technical information
1
2 TxD Transmit data
3 RxD Receive data
4
5 GND Ground isolated
6 +9V +9V isolated
7
8
9
Table 44.
LED Meaning
Green (LED 1) Receiving data
Red (LED 2) Transmitting data
Jumper block X3:
ConnectorconnectiontoGND
Connected to GND
th ro ug h RC fi l ter
Connected
directly to GND
7293.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
